2011 Kawasaki KLR™650 Rear Hub Diagram

← All diagrams

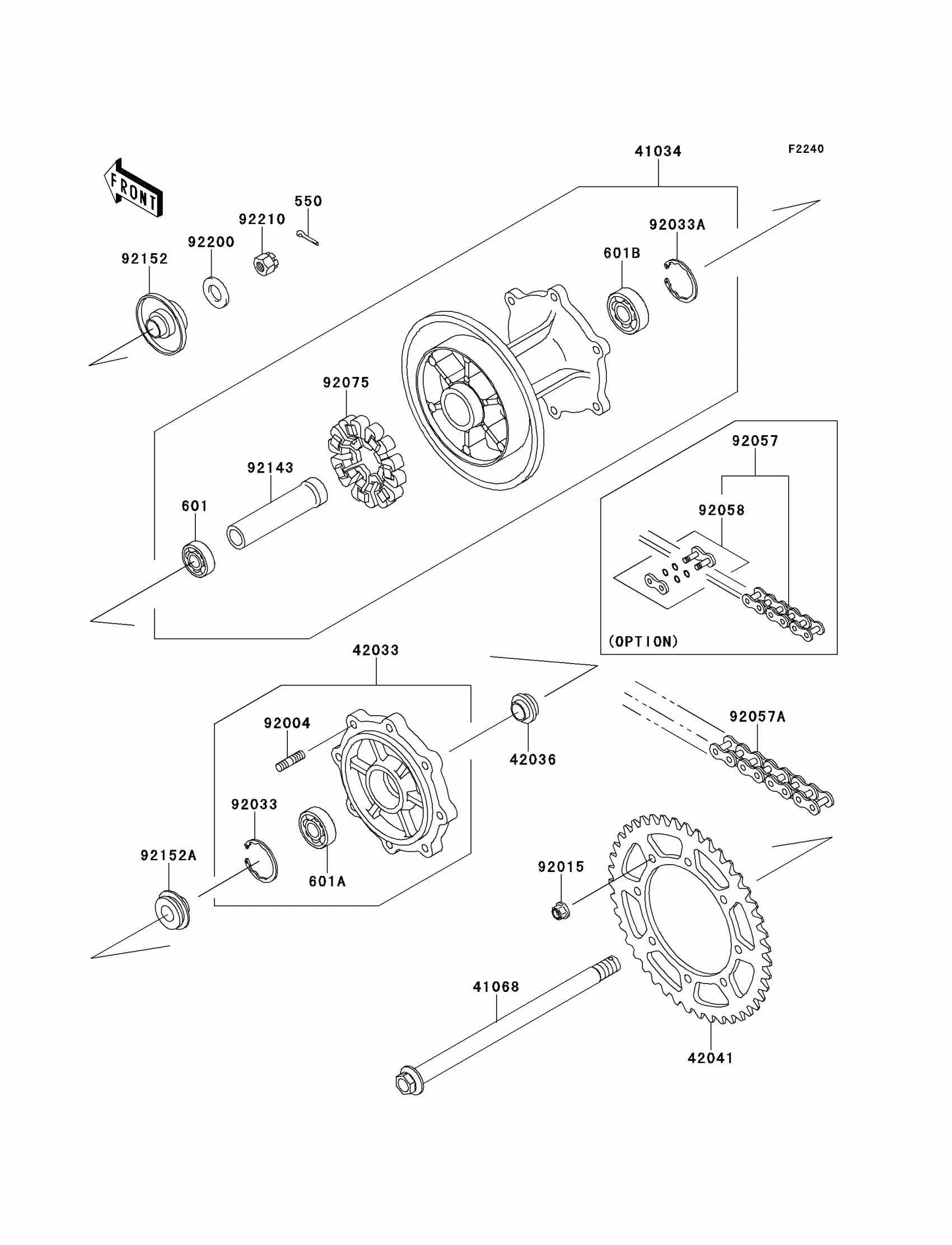

Find the part on the Rear Hub diagram for your 2011 Kawasaki KLR™650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLR™650 Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

601

1

$16.78

In stock

601A

1

$33.92

In stock

601B

1

$30.34

In stock

41034

1

$630.48

In stock

41068

AXLE,RR

41068-0056

1

$88.23

In stock

42033

1

$229.32

In stock

42036

SLEEVE

42036-0074

1

$22.85

In stock

42041

SPROCKET-HUB,43T

42041-0090

1

$77.58

In stock

92004

STUD,8X16

92004-1150

1
Out of stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92033A

RING-SNAP,47MM

92033-1042

1

$3.36

In stock

92057

1

$213.69

In stock

92057A

CHAIN,DRIVE,DID520VP2-TX106L

92057-0207

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-1102

1

$11.91

In stock

92075

DAMPER,SHOCK,RR HUB

92075-1068

1

$43.39

In stock

92143

1

$36.42

In stock

92152

COLLAR,L=30MM

92152-0851

1

$21.15

In stock

92152A

COLLAR,L=17MM

92152-0852

1

$24.12

In stock

92200

WASHER,17.3X32X3.2

92200-0563

1
Out of stock

92210

NUT,CASTLE,16MM

92210-1171

1
Out of stock
