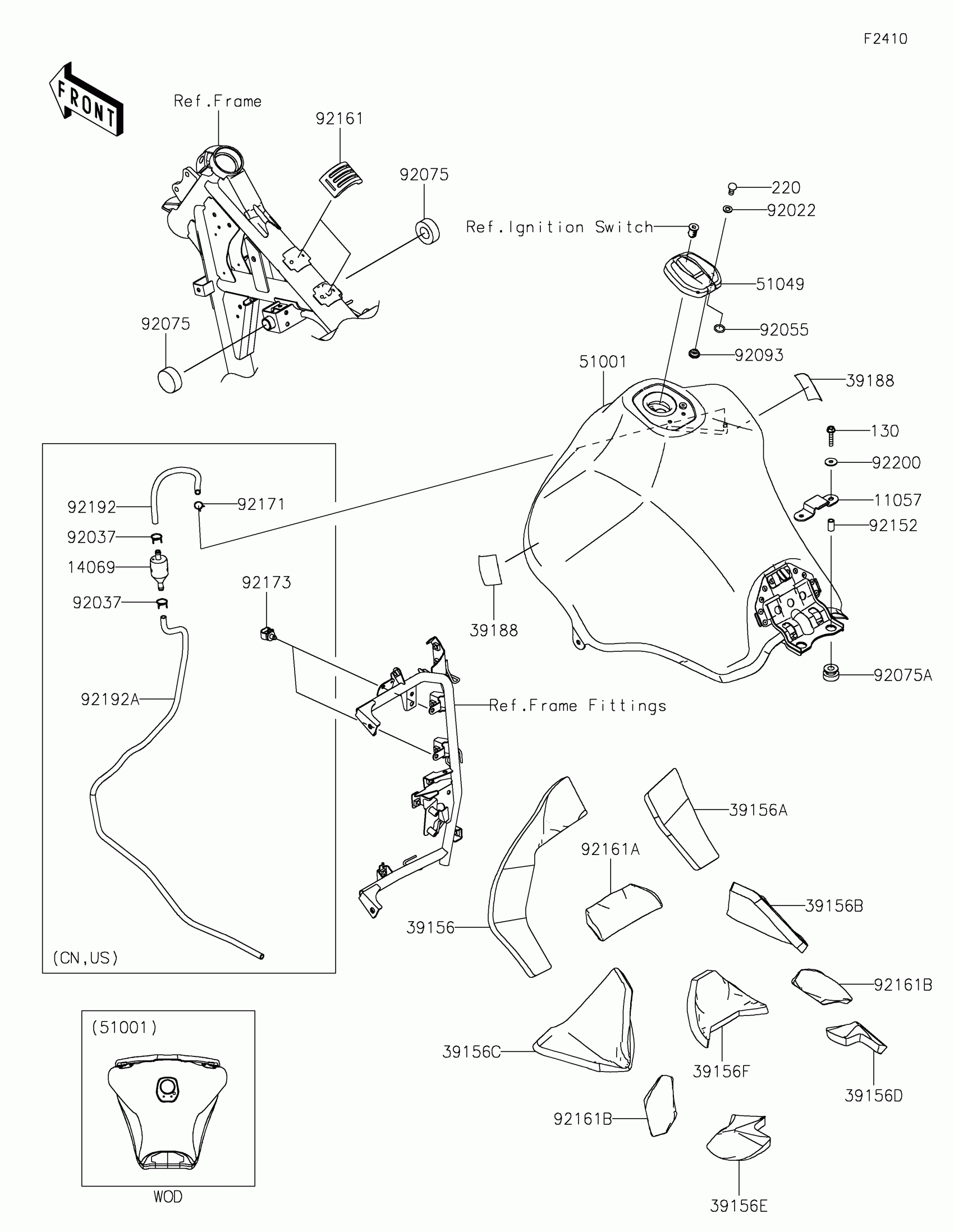

Kawasaki KLR®650 Adventure Fuel Tank Diagram

#

Description
Price

11057

BRACKET,SEAT

11057-4274

$4.47

14069

BREATHER,FUEL TANK

14069-1004

$7.76

39156

PAD,FR,LH

39156-2664

$22.51

39156A

PAD,FR,RH

39156-2665

$9.92

39156B

PAD,MID,RH

39156-2701

$13.75

39156C

PAD,MID,LH

39156-2702

$13.75

39156D

PAD,RR,RH

39156-2703

$5.92

39156E

PAD,RR,LH

39156-2704

$5.92

39156F

PAD,CNT

39156-2705

$8.24

39188

TAPE,40X50

39188-0049

$2.24

51001

TANK-COMP-FUEL,M.M.C.GRAY

51001-0903-51B

$1,187.82

51049

CAP-TANK,FUEL

51049-0760

$78.96

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-1023

$2.99

92075

DAMPER,FUEL TANK

92075-101

$4.67

92075A

DAMPER

92075-1660

$6.18

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR,6.8X10X18

92152-2726

$2.63

92161

DAMPER

92161-2372

$4.08

92161A

DAMPER,CNT

92161-2394

$13.61

92161B

DAMPER,LH&RH

92161-2395

$10.93

92171

CLAMP,8X0.7

92171-1973

$1.04

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92192

TUBE,BREATHER,6X9X220

92192-2441

$4.25

92192A

TUBE,BREATHER,6X9X900

92192-2442

$12.37

92200

WASHER,6.5X20X1.6

92200-1962

Unavailable

130

BOLT-FLANGED,6X30

130BB0630

$3.38

220

SCREW-PAN-CROS,5X10

220AA0510

$0.65
