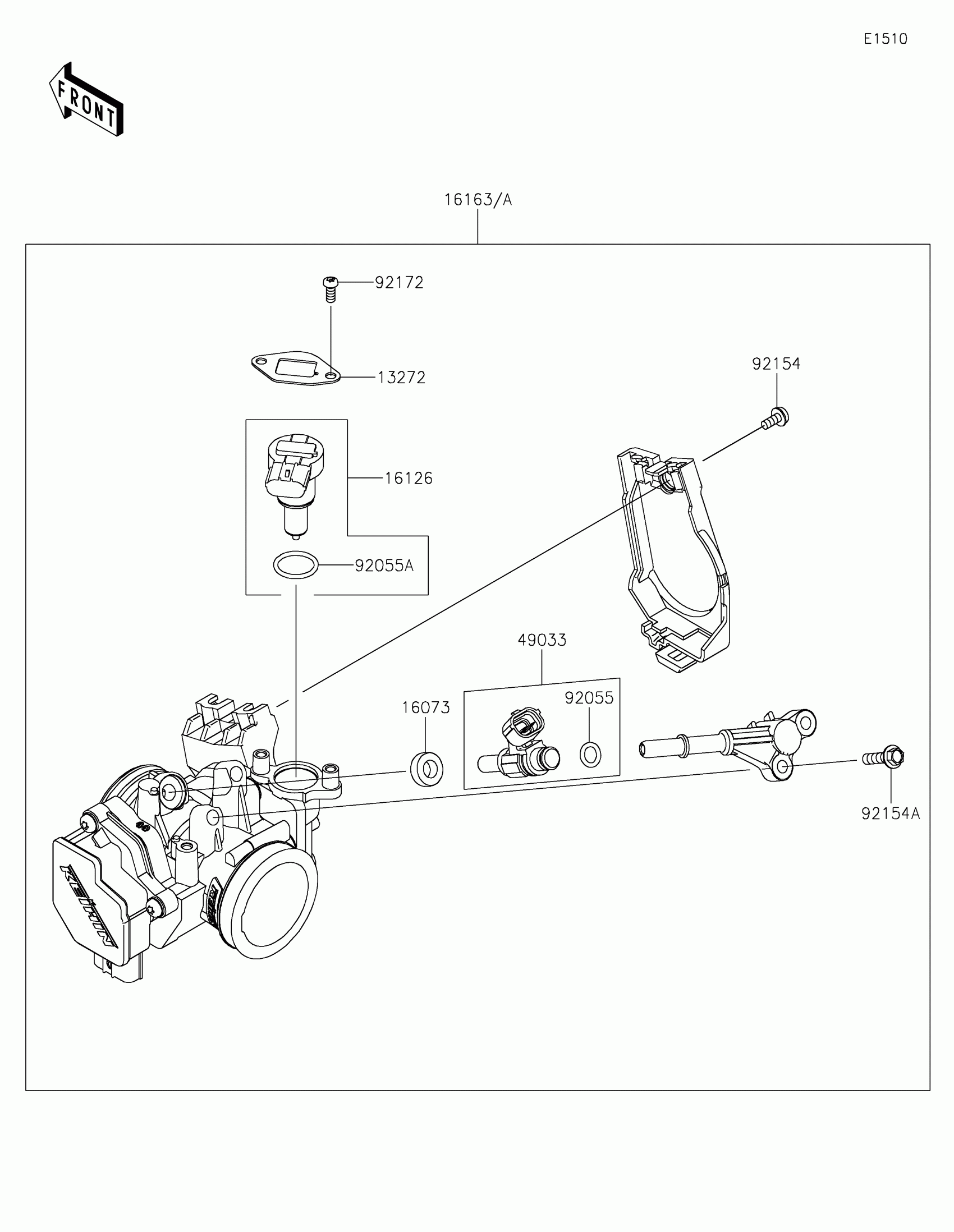

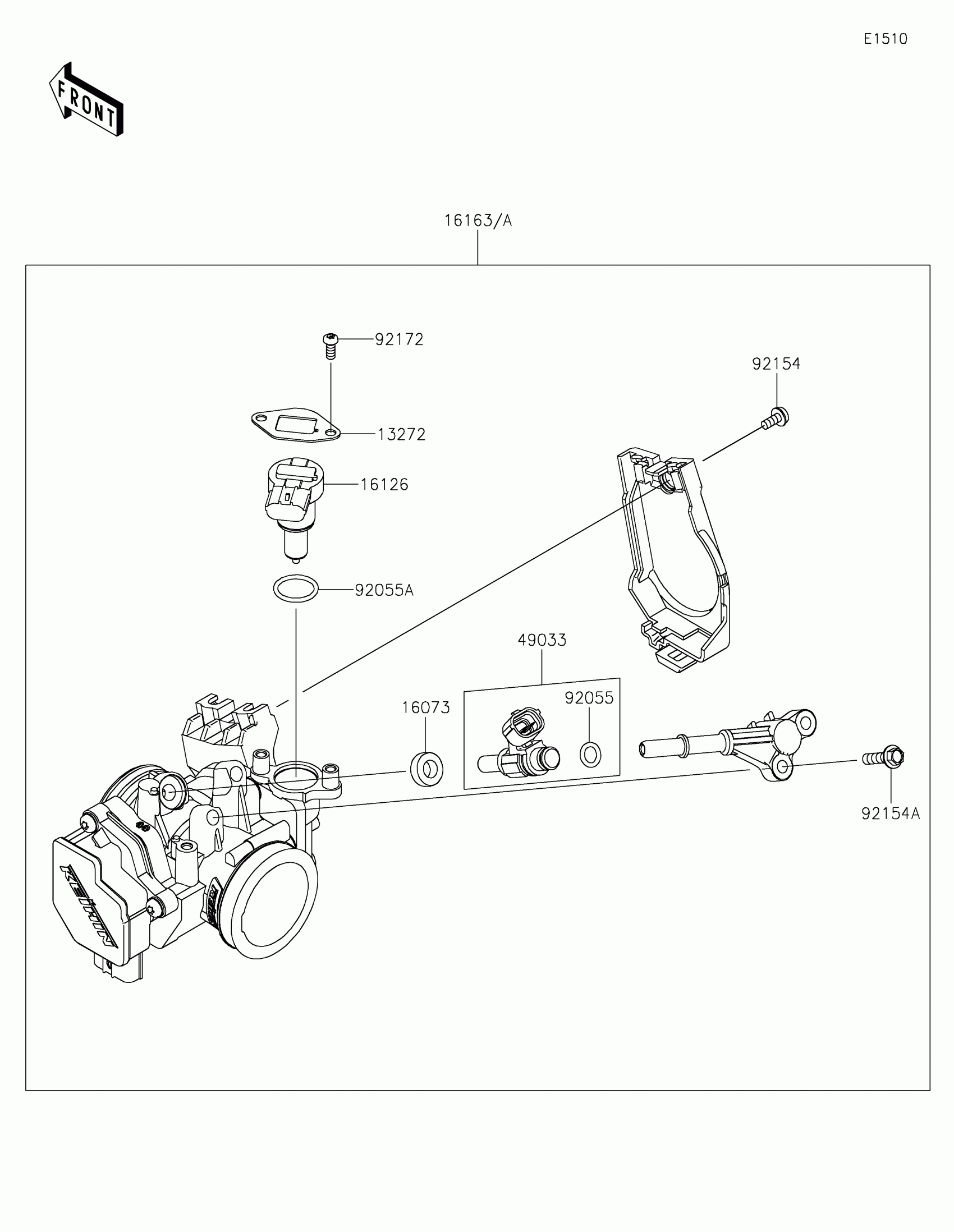

Find the part on the Throttle diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-1862

1

$21.07

In stock

16073

INSULATOR

16073-0129

1
Out of stock

16126

VALVE,ISC

16126-0768

1
Out of stock

16163

THROTTLE-ASSY

16163-1244

1
Out of stock

16163A

THROTTLE-ASSY

16163-1248

1
Out of stock

49033

NOZZLE-INJECTION

49033-0578

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-0124

1
Out of stock

92055A

RING-O

92055-0826

1
Out of stock

92154

BOLT

92154-0133

1
Out of stock

92154A

BOLT,FLANGED,5X20

92154-1559

1
Out of stock

92172

SCREW,TORX

92172-0903

1
Out of stock
