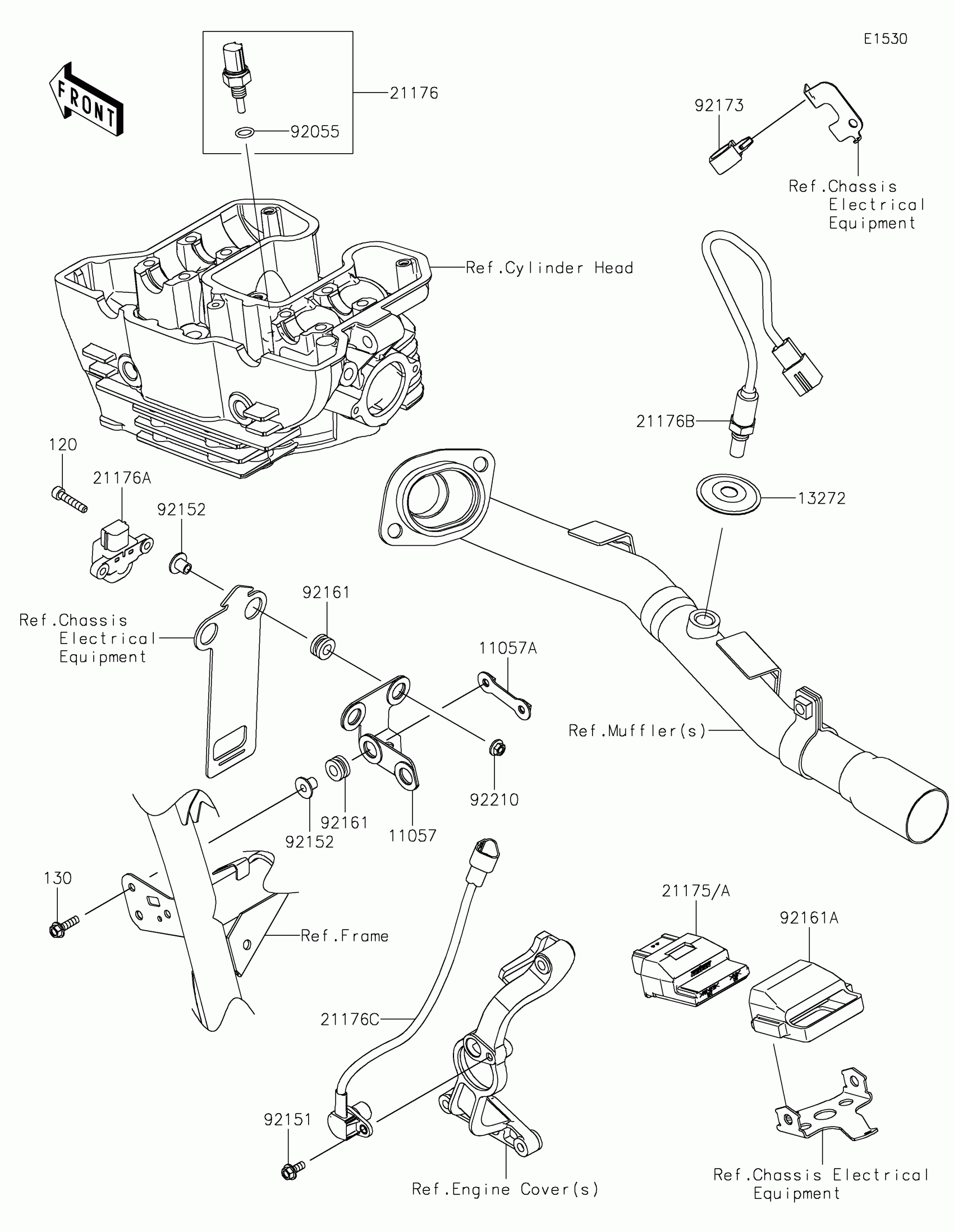

Find the part on the Fuel Injection diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,VEHICLE DOWN SENSOR

11057-7429

1
Out of stock

11057A

BRACKET

11057-7434

1
Out of stock

13272

PLATE,O2 SENSOR

13272-3888

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC

21175-1665

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1666

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,OXYGEN

21176-0993

1
Out of stock

21176C

SENSOR,SPEED SENSOR

21176-0996

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92151

BOLT,FLANGED,5X12

92151-1305

1
Out of stock

92152

COLLAR

92152-1592

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92161A

DAMPER,ECU

92161-2358

1
Out of stock

92173

CLAMP

92173-2462

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

120

BOLT-SOCKET,5X25

120CA0525

1
Out of stock

130

BOLT-FLANGED,5X18

130BB0518

1

$1.71

In stock
