1984 Kawasaki KL600 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

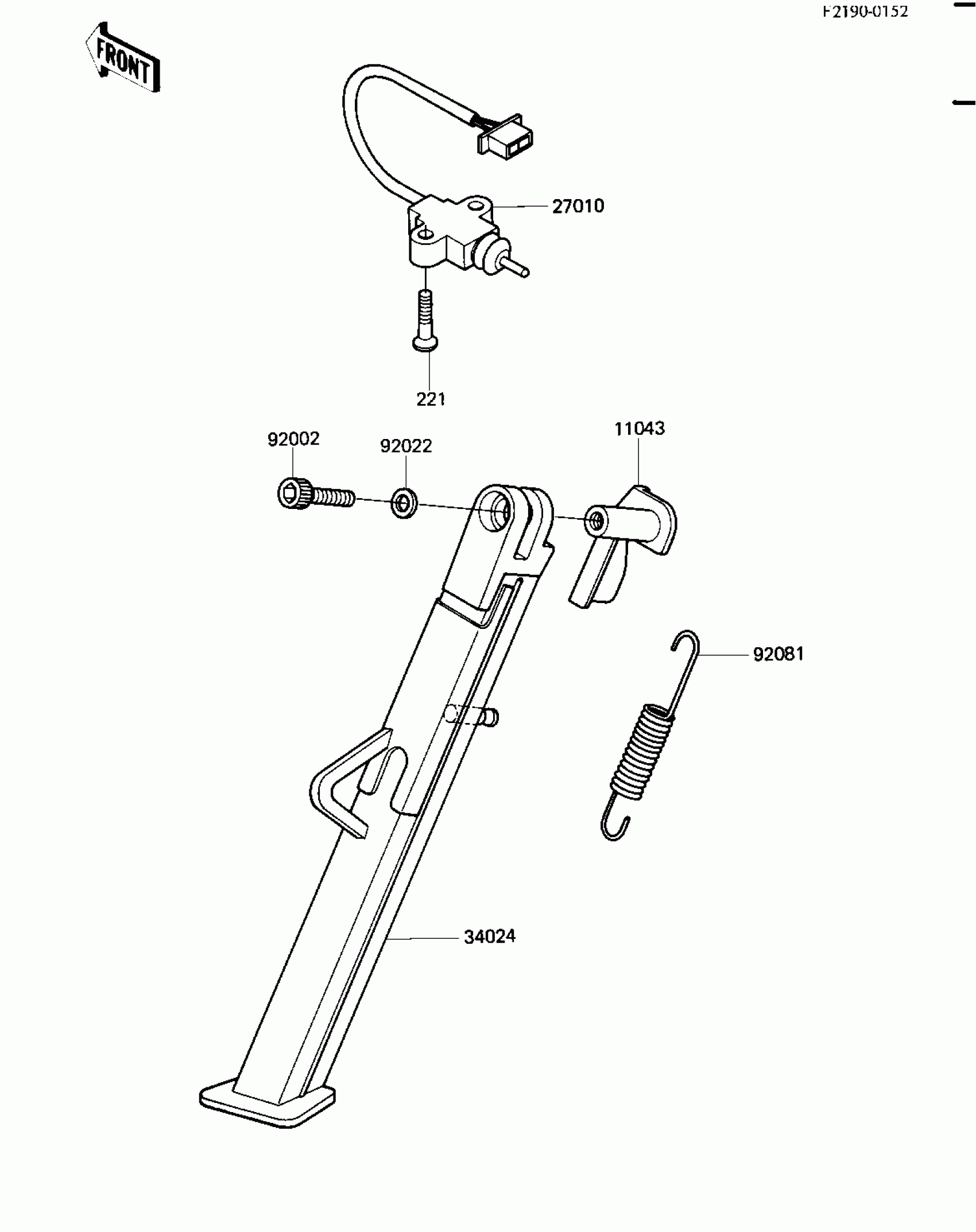

1984 Kawasaki KL600 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,SIDE STAND

11043-1165

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1189

1
Out of stock

34024

STAND-SIDE

34024-1157

1
Out of stock

92002

BOLT,SOCKET,8X12

92002-1177

1

$4.03

In stock

92022

WASHER CHNG DRUM LEV

92022-091

1
Out of stock

92081

SPRING,SIDE STAND

92081-1376

1

$11.18

In stock

221

SCREW-CSK-CROS

221C0520

1

$3.24

In stock
