1984 Kawasaki KL600 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

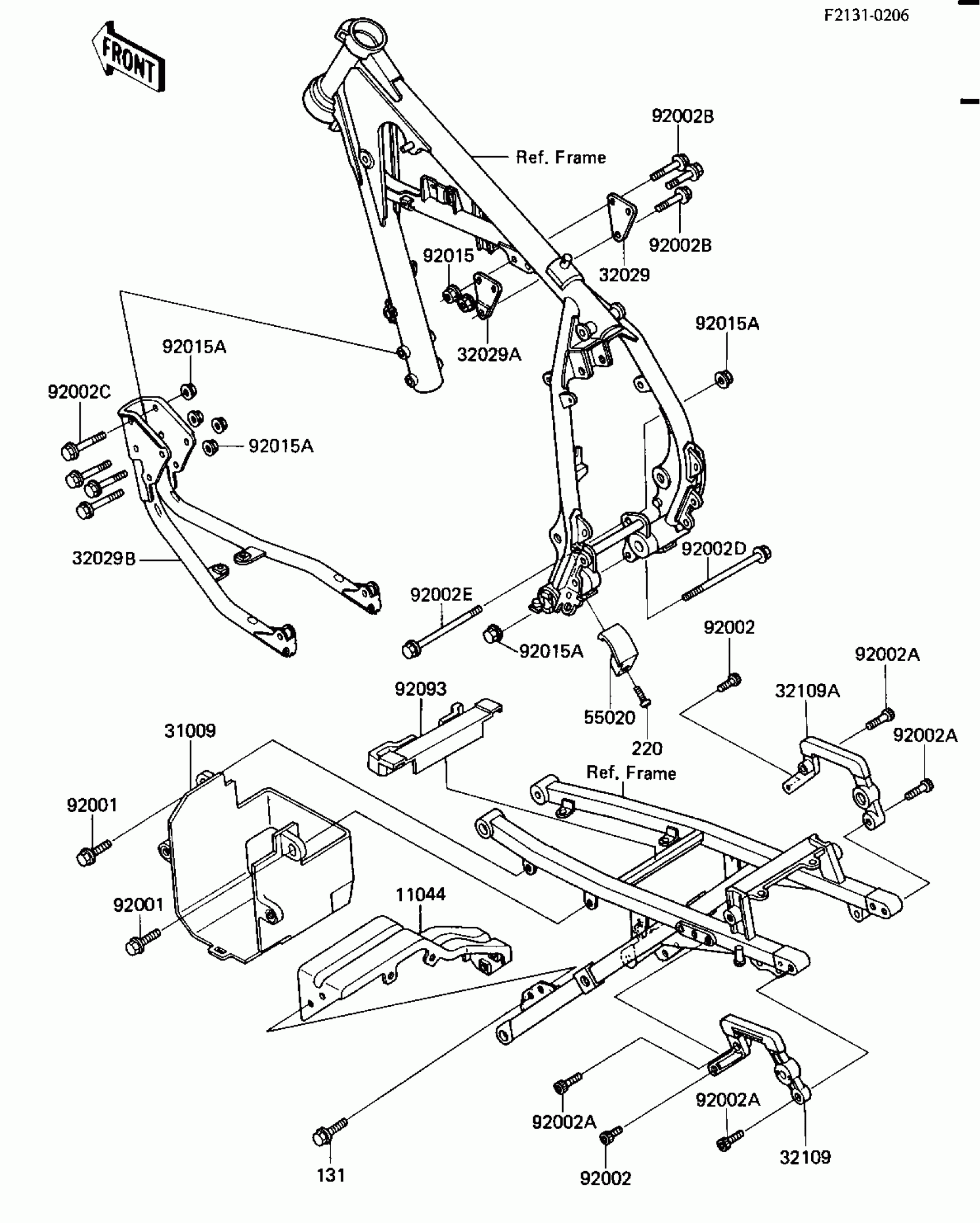

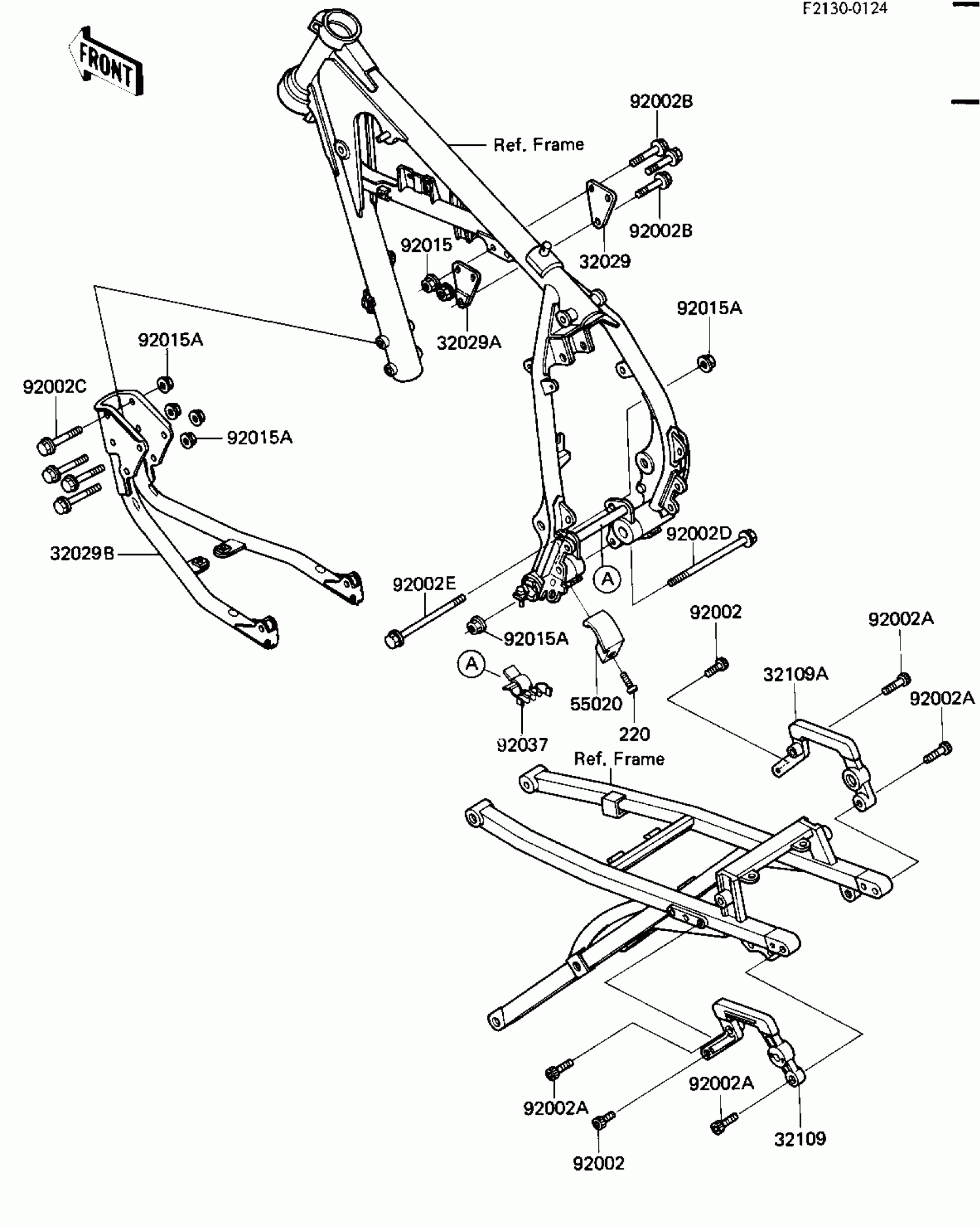

1984 Kawasaki KL600 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE,RH

32029-1309

1

$29.21

In stock

32029A

BRACKET-ENGINE,LH

32029-1334

1

$29.21

In stock

32029B

BRACKET-ENGINE,FR

32029-1367

1

$146.41

In stock

32109

GRIP-FRAME,LH

32109-1105

1

$76.19

In stock

32109A

GRIP-FRAME,RH

32109-1106

1

$76.19

In stock

55020

GUARD,CHAIN

55020-1157

1

$37.68

In stock

92004

BOLT,SOCKET,6X14

92002-1175

1

$4.61

In stock

92002A

BOLT,SOCKET,6X25

92002-1176

1
Out of stock

92002B

BOLT,8X50

92002-1182

1

$8.75

In stock

92002C

BOLT,FLANGED,10X70

92001-1618

1

$8.23

In stock

92002D

BOLT,10X185

92002-1346

1

$23.34

In stock

92002E

BOLT,10X185

92002-1346

1

$23.34

In stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015A

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92037

CLAMP

92037-1584

1

$6.31

In stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
