1984 Kawasaki KL600 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

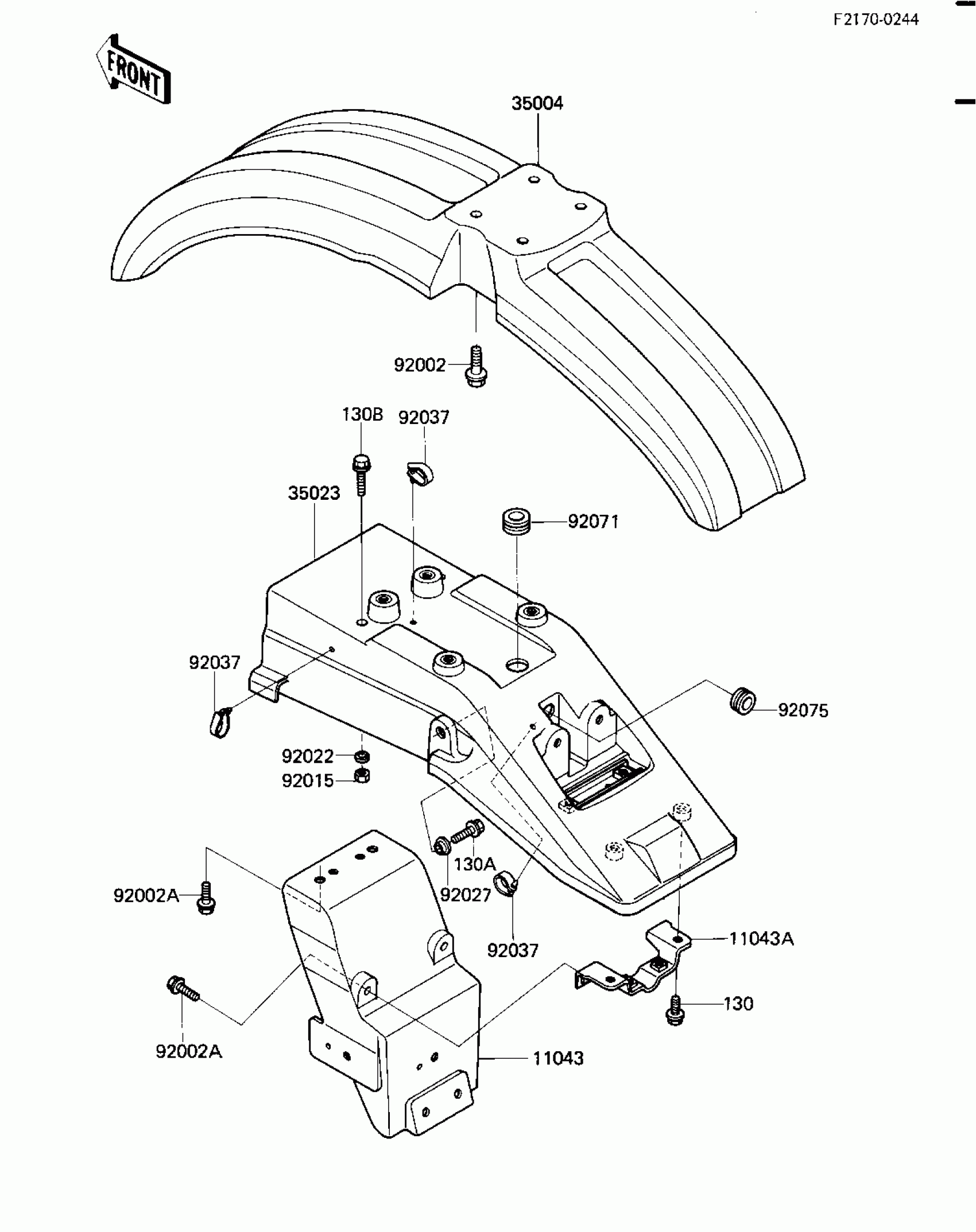

1984 Kawasaki KL600 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,LICENSE PLATE

11043-1166

1
Out of stock

11043A

BRACKET,REAR FLAP

11043-1326

1
Out of stock

35004

FENDER-FRONT,P.WHITE

35004-1153-6F

1
Out of stock

35023

FENDER-REAR,RR,P.WHIT

35023-1101-6F

1
Out of stock

92002

BOLT,6X16

92001-1950

1

$3.43

In stock

92002A

BOLT,6X16

92002-1136

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR

92027-1794

1

$3.43

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92071

GROMMET

92071-1027

1
Out of stock

92075

DAMPER

92075-1028

1

$3.72

In stock

130

BOLT-FLANGED

130D0608

1
Out of stock

130A

BOLT-FLANGED

130D0616

1
Out of stock

130B

BOLT-FLANGED,6X20

130D0620

1
Out of stock
