1984 Kawasaki KL600 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

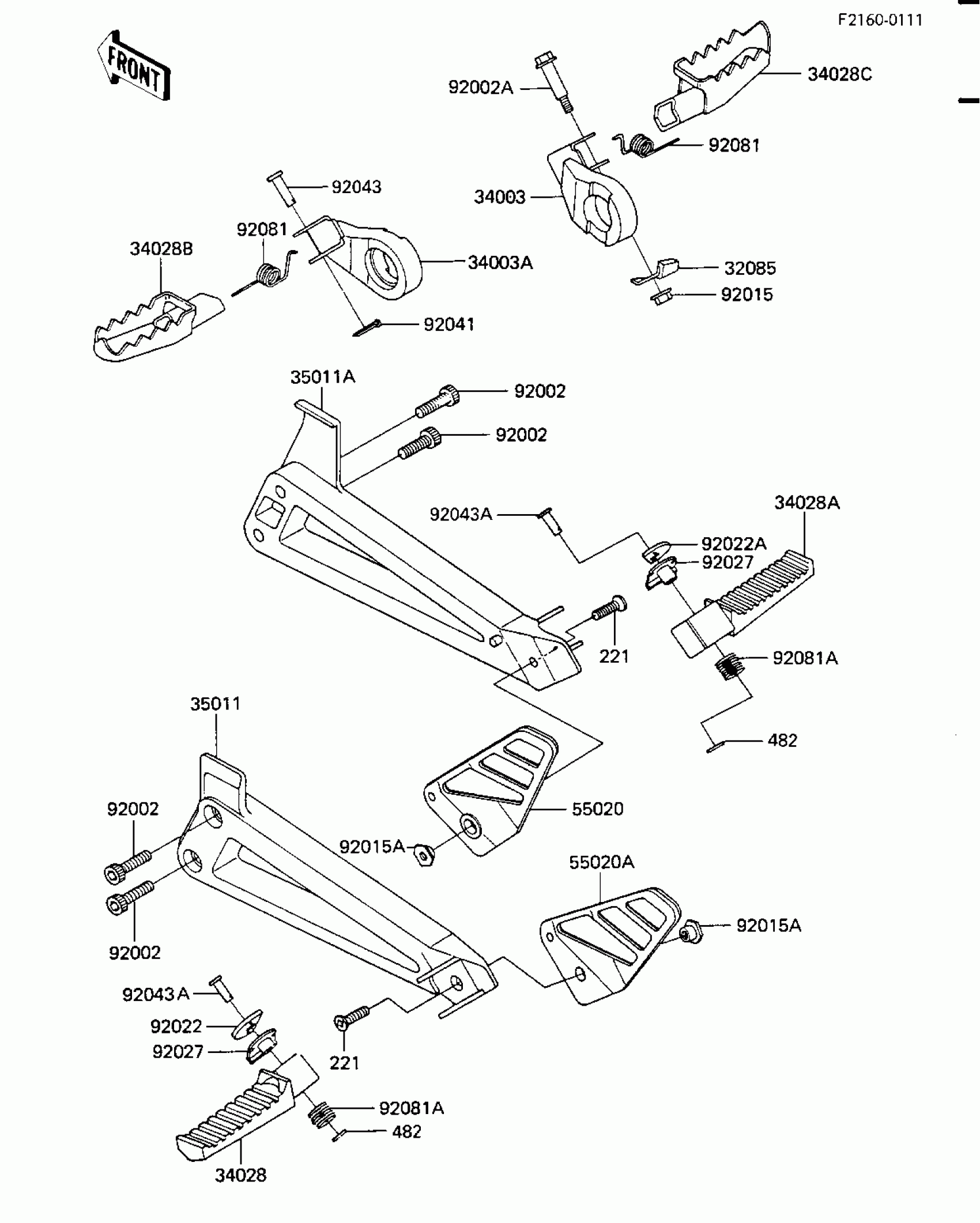

1984 Kawasaki KL600 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,KICK PEDAL

32085-1178

1

$23.36

In stock

34003

HOLDER-STEP,FR,RH

34003-1202

1

$106.02

In stock

34003A

HOLDER-STEP,FR,LH

34003-1238

1

$106.02

In stock

34028

STEP,FR,LH

34028-1107

1
Out of stock

34028A

STEP,FR,RH

34028-1108

1

$33.83

In stock

34028B

STEP,RR,LH

34028-1111

1
Out of stock

34028C

STEP,RR,RH

34028-1112

1
Out of stock

35011

STAY,MUFFLER,LH

35011-1203

1

$174.60

In stock

35011A

STAY,MUFFLER,RH

35011-1204

1

$174.60

In stock

55020

GUARD,STEP,RR,R.H.

55020-1169

1

$10.93

In stock

55020A

GUARD,STEP,RR,L.H.

55020-1170

1

$10.93

In stock

92002

BOLT,SOCKET,8X20

92002-1178

1

$4.01

In stock

92002A

BOLT,6MM

92002-1193

1

$5.32

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92015A

NUT,STAY,6MM

92015-1394

1

$3.80

In stock

92022

WASHER,RH

92022-1469

1
Out of stock

92022A

WASHER,RH

92022-1469

1
Out of stock

92027

COLLAR,STEP,RR

92027-1678

1
Out of stock

92041

COTTER,2.5X15

92041-1051

1

$4.42

In stock

92043

PIN,8X31

92043-080

1

$5.03

In stock

92043A

PIN,6X38.5

92043-1238

1

$4.15

In stock

92081

SPRING,STEP

92081-1133

1

$5.95

In stock

92081A

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

221

SCREW-CSK-CROS

221D0618

1

$3.59

In stock

482

1

$1.20

In stock
