1984 Kawasaki KL600 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

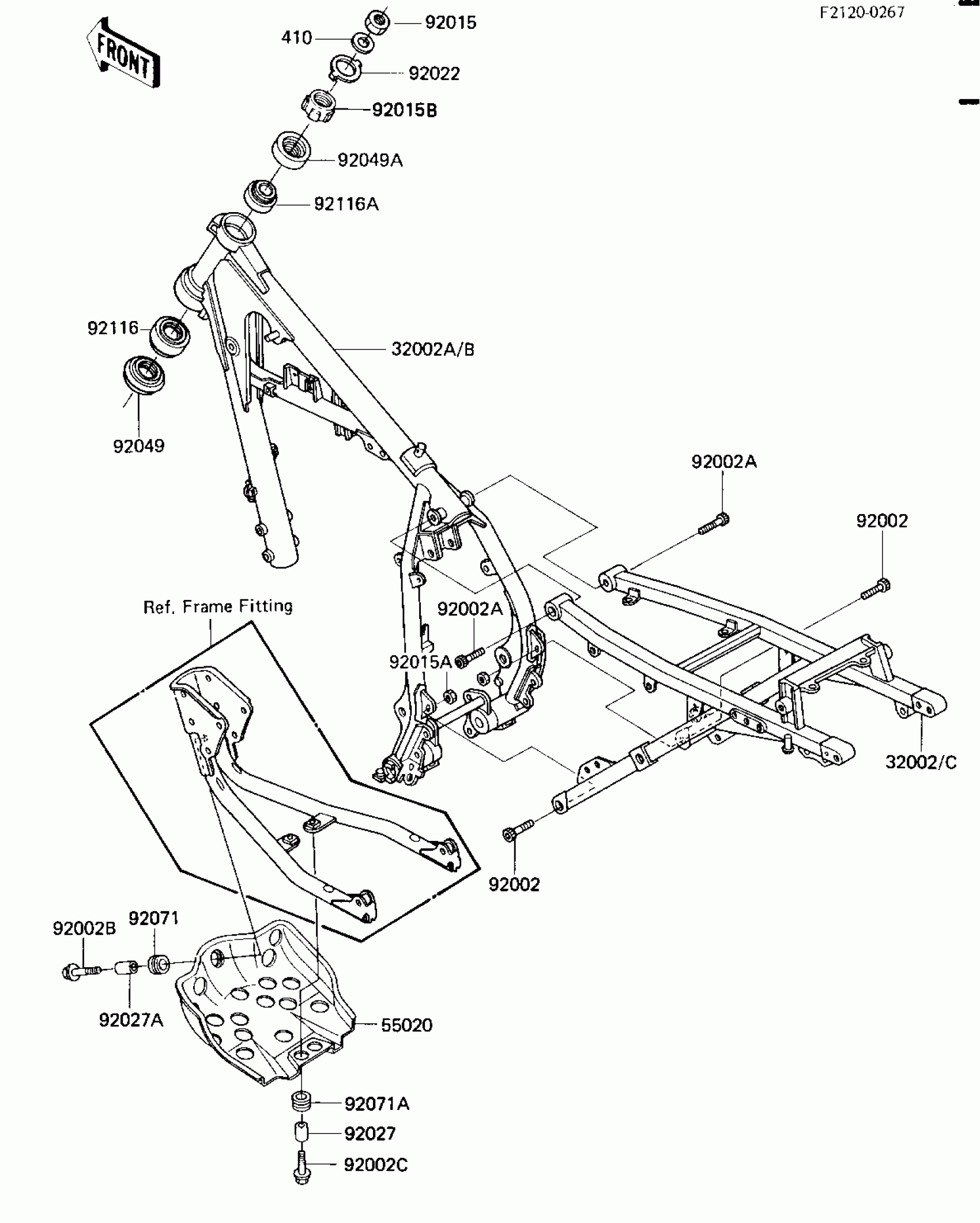

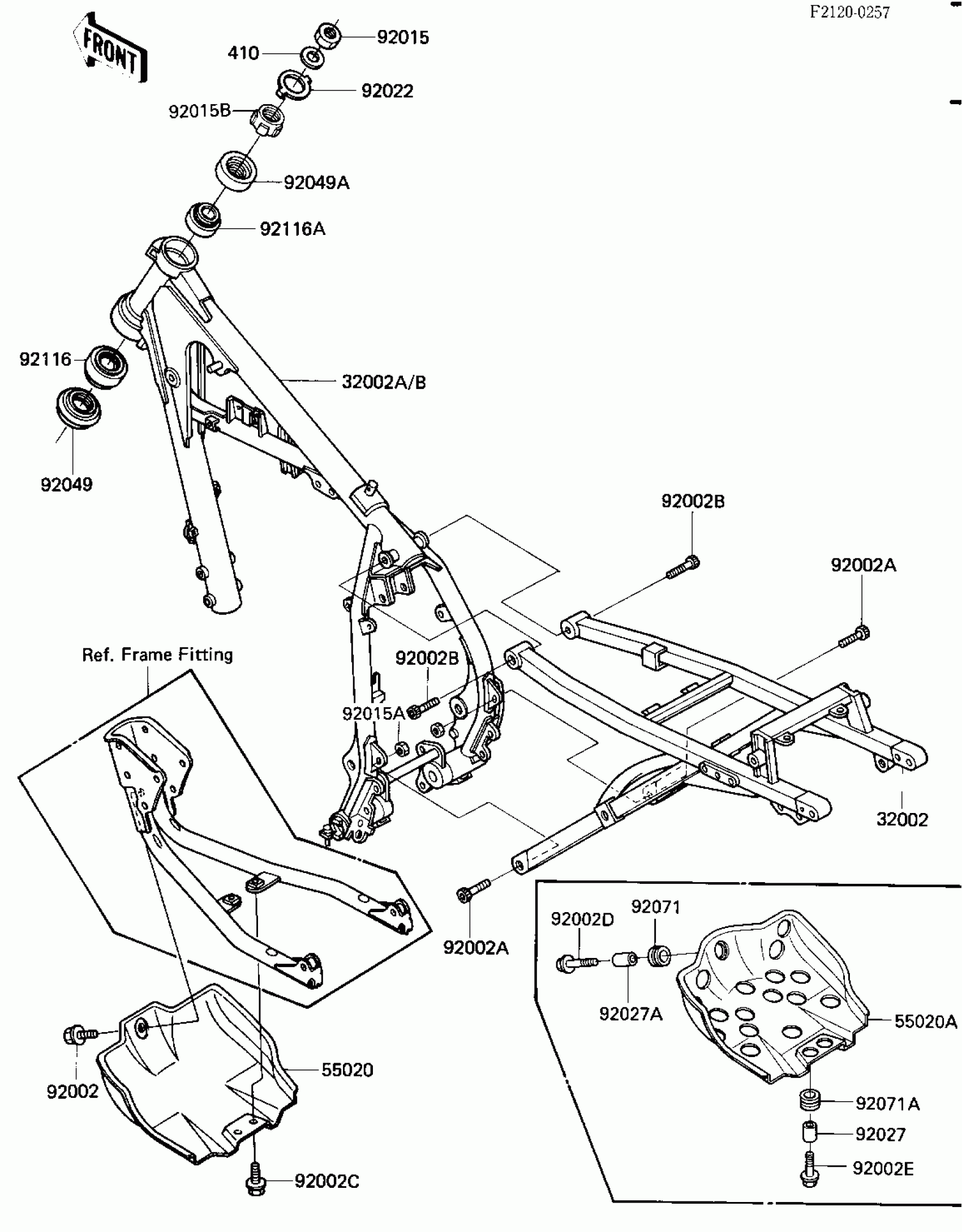

1984 Kawasaki KL600 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32002

FRAME-COMP,RR

32002-1662

1

$638.11

In stock

32002A

FRAME-COMP,FR

32002-1675

1

$956.51

In stock

32002B

FRAME-COMP,FR

32002-1755

1

$768.06

In stock

55020

GUARD,ENGINE

55020-1184

1
Out of stock

55020A

GUARD,ENGINE

55020-1184

1
Out of stock

92002

BOLT,8X12

92002-1117

1

$2.29

In stock

92002A

BOLT,SOCKET,8X30

92002-1179

1

$5.76

In stock

92002B

BOLT,SOCKET,8X40

92002-1181

1

$8.05

In stock

92002C

BOLT,FLANGED,6X12

92002-1186

1

$2.29

In stock

92002D

BOLT,FLANGED,8X20

92002-1417

1

$4.24

In stock

92002E

BOLT,6X20

92002-1418

1

$3.90

In stock

92015

NUT,18MM

92015-1404

1

$21.97

In stock

92015A

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015B

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92022

1

$7.49

In stock

92027

COLLAR

92027-153

1

$4.93

In stock

92027A

COLLAR,L=12

92027-1842

1

$8.54

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92071

GROMMET

92071-1010

1

$3.69

In stock

92071A

GROMMET

92071-1115

1

$4.34

In stock

92116

1

$33.21

In stock

92116A

1

$37.01

In stock

410

W-PLAIN-S

410F1800

1
Out of stock
