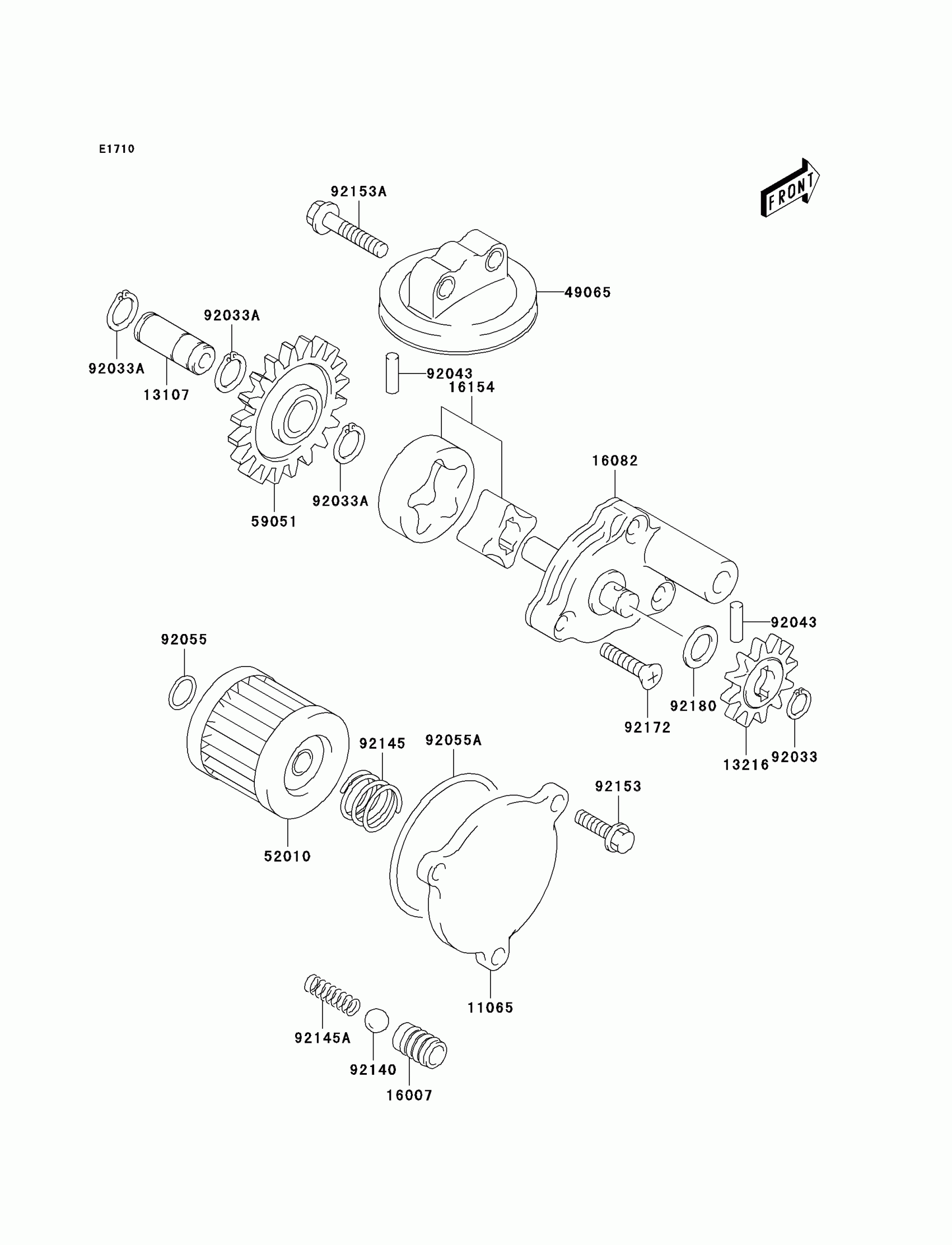

Find the part on the OIL Pump/oil Filter diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,OIL FILTER

11065-S002

1
Out of stock

13107

SHAFT,OIL PUMP IDLE GEAR

13107-S004

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-S012

1
Out of stock

16007

SEAT-SPRING

16007-S006

1
Out of stock

16082

PUMP-ASSY-OIL

16082-S004

1
Out of stock

16154

ROTOR-PUMP

16154-S001

1
Out of stock

49065

FILTER-OIL

49065-S004

1
Out of stock

52010

ELEMENT-OIL FILTER

52010-S004

1
Out of stock

59051

GEAR-SPUR,OIL PUMP

59051-S005

1
Out of stock

92033

RING-SNAP

92033-S001

1
Out of stock

92033A

RING-SNAP

92033-S023

1
Out of stock

92043

PIN,4X15.8

92043-S007

1
Out of stock

92055

RING-O,D=1.9

92055-S005

1
Out of stock

92055A

RING-O,D=2.4

92055-S010

1
Out of stock

92140

BALL,OIL CHECK VALVE

92140-S003

1
Out of stock

92145

SPRING,OIL FILTER CAP

92145-S004

1
Out of stock

92145A

SPRING,OIL CHECK VALVE

92145-S090

1
Out of stock

92153

BOLT

92153-S001

1
Out of stock

92153A

BOLT

92153-S067

1
Out of stock

92172

SCREW,OIL PUMP

92172-S167

1
Out of stock

92180

SHIM,10X18X0.5

92180-S001

1
Out of stock
