2010 Kawasaki KFX®450R Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

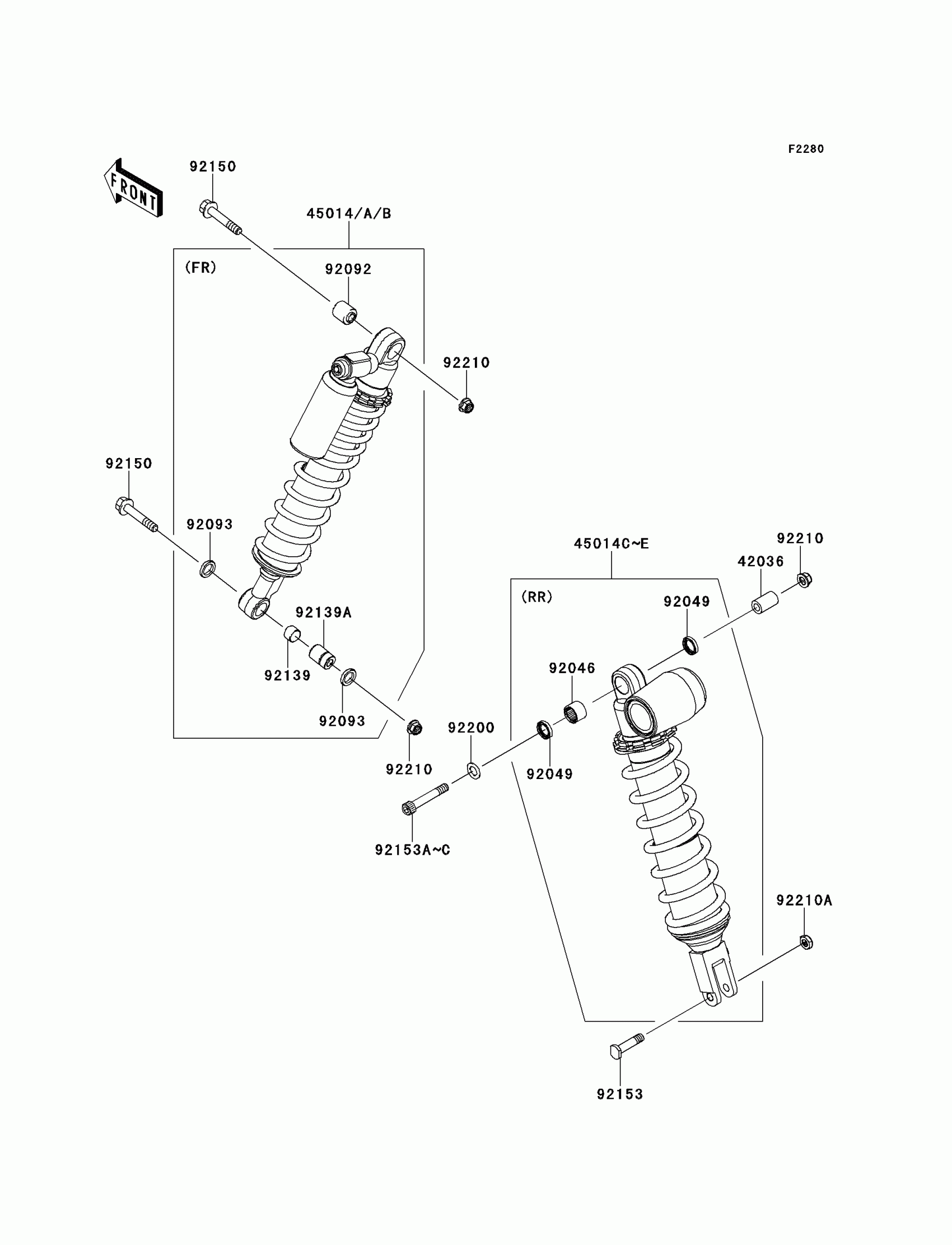

2010 Kawasaki KFX®450R Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

42036

SLEEVE,10.1X18X30

42036-1258

1
Out of stock

45014

SHOCKABSORBER,FR,P.WHITE

45014-0184-EH

1
Out of stock

45014A

SHOCKABSORBER,FR,S.RED

45014-0184-VM

1
Out of stock

45014C

SHOCKABSORBER,RR,P.WHITE

45014-0185-EH

1
Out of stock

45014D

SHOCKABSORBER,RR,S.RED

45014-0185-VM

1
Out of stock

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92049

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92092

BUSHING-RUBBER

92092-1058

1
Out of stock

92093

SEAL

92093-0033

1
Out of stock

92139

BUSHING

92139-0084

1
Out of stock

92139A

BUSHING

92139-0213

1
Out of stock

92150

BOLT,FLANGED,10X51

92150-1719

1
Out of stock

92153

BOLT,10X45

92153-0937

1
Out of stock

92153B

BOLT,SOCKET,10X63

92153-1943

1
Out of stock

92200

WASHER,10.6X18X1.2

92200-0330

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1184

1
Out of stock
