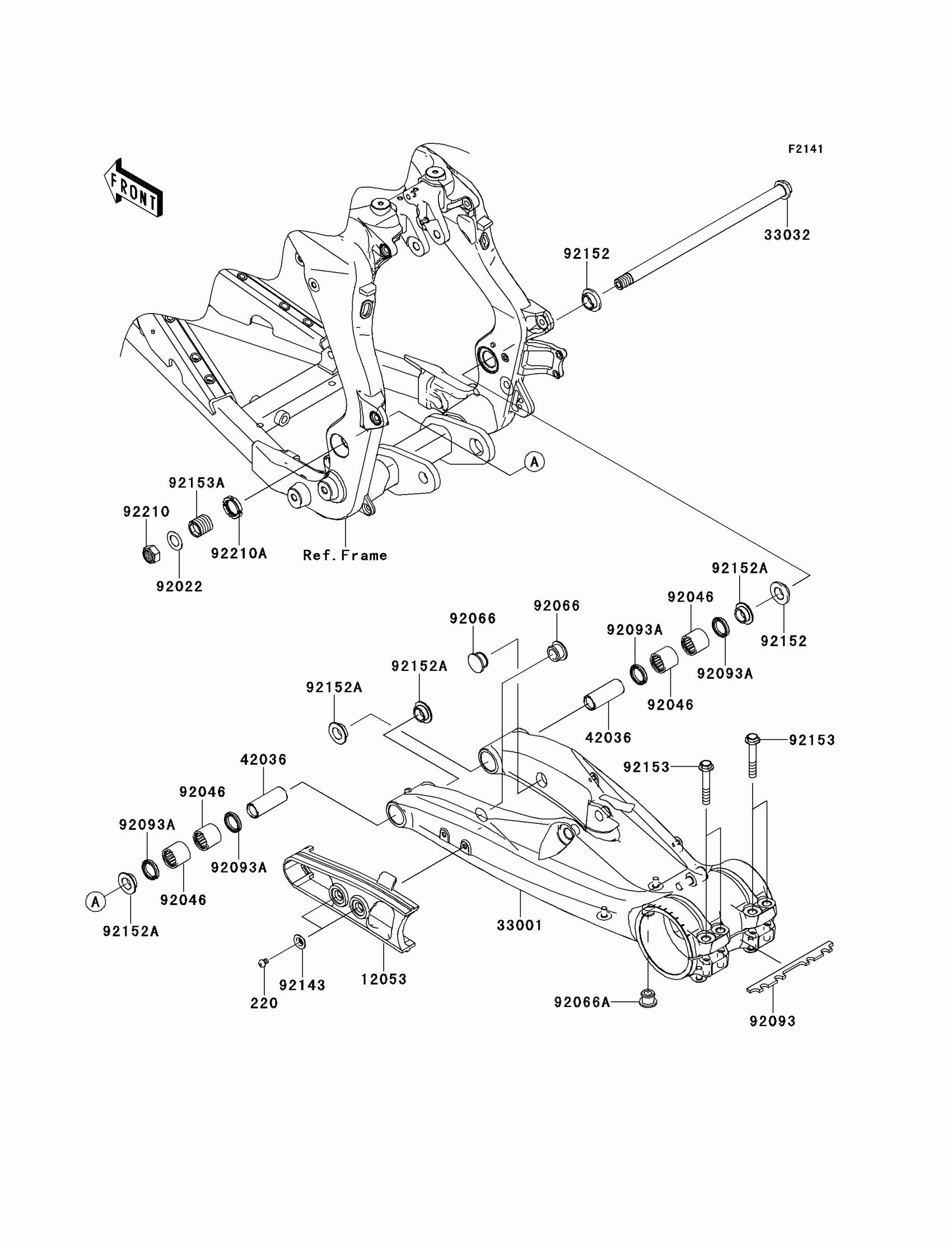

Kawasaki KFX®450R Swingarm Diagram

Description

Price

220

SCREW-PAN-CROS,6X8

220AA0608

$0.54

12053

GUIDE-CHAIN

12053-0100

$88.66

33001

ARM-COMP-SWING

33001-0157

$692.23

33032

SHAFT-SWING ARM

33032-0019

$51.09

42036

SLEEVE

42036-0036

$23.49

92022

WASHER,THRUST,16.5X28X1

92022-170

$9.02

92046

BEARING-NEEDLE,BM222925

92046-0027

$42.19

92066

PLUG

92066-0074

$3.42

92066A

PLUG

92066-0077

$3.42

92093

SEAL

92093-0062

$4.10

92093A

SEAL,SDO22X29X5

92093-1435

$6.70

92143

COLLAR

92143-1156

$4.67

92152

COLLAR

92152-0402

$15.07

92152A

COLLAR

92152-0431

Unavailable

92153

BOLT,FLANGED,10X60

92153-1486

$4.31

92153A

BOLT,PIVOT,24MM

92153-1600

$33.98

92210

NUT,LOCK,16MM

92210-0179

$20.03

92210A

NUT,PIVOT,24MM

92210-0294

$29.37
