2010 Kawasaki KFX®450R Rear Suspension Diagram

← All diagrams

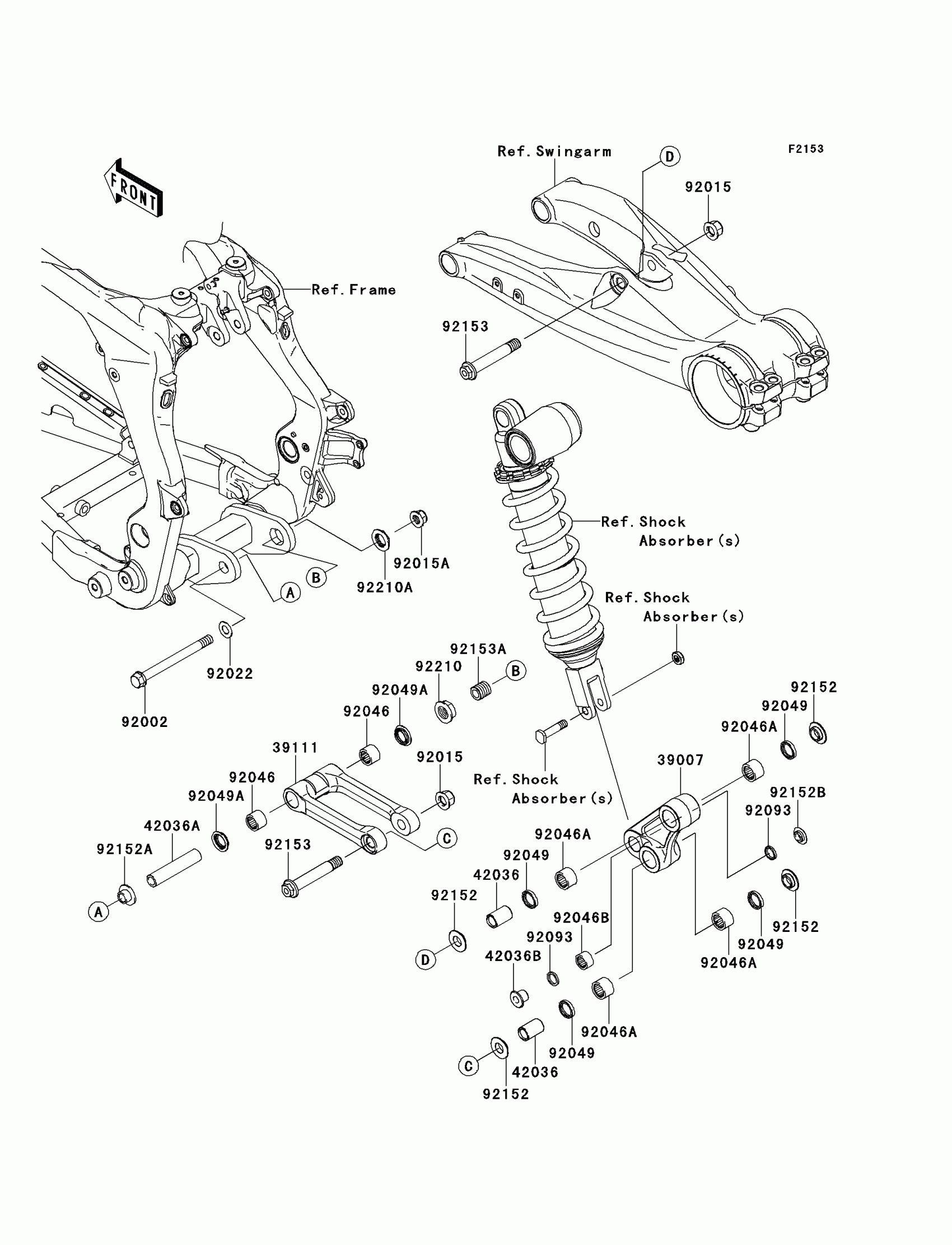

Find the part on the Rear Suspension diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KFX®450R Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,RR

39007-0074

1

$92.00

In stock

39111

ROD-TIE,SUSPENSION

39111-0047

1

$68.56

In stock

42036

SLEEVE

42036-0038

1

$29.37

In stock

42036A

SLEEVE,12X18X88

42036-0039

1

$33.98

In stock

42036B

SLEEVE

42036-1351

1

$8.94

In stock

92002

BOLT,FLANGED,12X135

92002-1347

1

$19.47

In stock

92015

NUT,FLANGED,14MM

92015-1401

1

$9.03

In stock

92015A

1

$7.04

In stock

92022

WASHER

92022-107

1

$2.20

In stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92046A

BEARING-NEEDLE,F-2016

92046-1151

1
Out of stock

92046B

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL,HF020N3-A

92049-0027

1
Out of stock

92049A

SEAL-OIL

92049-1328

1
Out of stock

92093

SEAL

92093-1436

1

$5.77

In stock

92152

COLLAR

92152-0403

1

$11.93

In stock

92152A

COLLAR

92152-0404

1

$10.39

In stock

92152B

COLLAR

92152-1139

1

$7.04

In stock

92153

BOLT,14MM,L=92

92153-0429

1
Out of stock

92153A

BOLT,20M

92153-1488

1
Out of stock

92210

NUT,20M

92210-0295

1
Out of stock

92210A

NUT,20M

92210-0296

1
Out of stock
