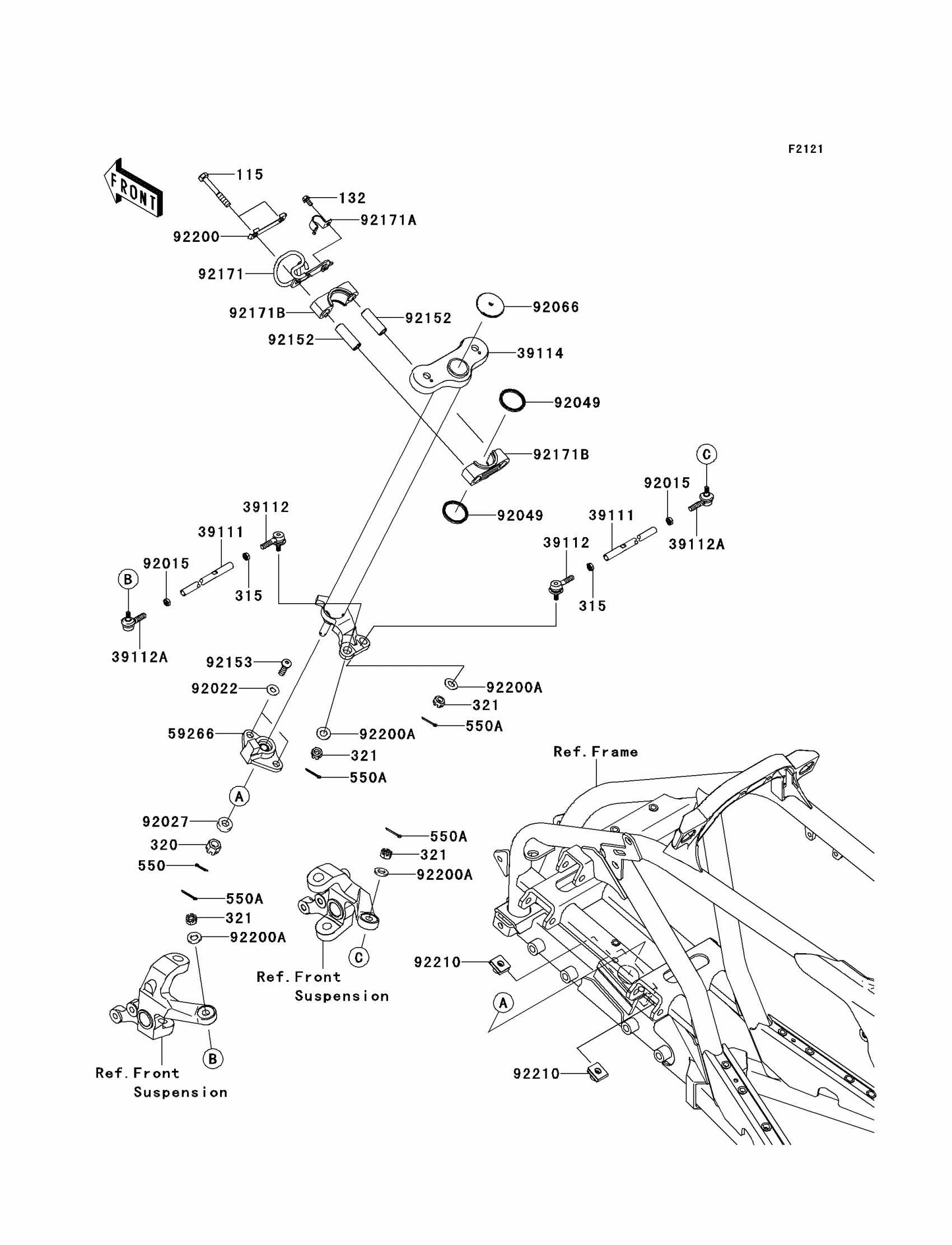

Kawasaki KFX®450R Steering Shaft Diagram

#

Description
Price

115

BOLT-SMALL-UPSET,8X55

115CB0855

$3.12

132

BOLT-FLANGED-SMALL,5X10

132BA0510

$1.47

315

NUT-HEX-FINE

315AB1200

$4.34

320

NUT-CASTLE

320BA1000

$8.27

321

NUT-CASTLE

321BA1000

$4.93

550

PIN-COTTER,2.5X18

550AA2518

$0.61

550A

PIN-COTTER,2.5X20

550AA2520

$1.05

39111

ROD-TIE

39111-0052

$33.34

39112

RODEND-TIE

39112-0011

$40.39

39112A

RODEND-TIE

39112-0012

$35.29

39114

SHAFT-COMP-STRG,F.BLACK

39114-0012-21

$157.34

59266

JOINT-BALL

59266-0026

$123.43

92015

NUT,12MM,LEFT SCREW

92015-1532

Unavailable

92022

WASHER,PLAIN,8MM

92022-3043

$2.03

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$3.81

92066

PLUG

92066-0032

$11.19

92152

COLLAR,9.1X13.95X42

92152-7501

$5.84

92153

BOLT,SOCKET,8X25

92153-1838

$3.59

92171

CLAMP,CABLE

92171-0855

Unavailable

92171A

CLAMP,BRAKE HOSE

92171-0856

$7.95

92171B

CLAMP,STEERING

92171-7501

$5.84

92200

WASHER,STEERING CLAMP

92200-0384

$5.17

92200A

WASHER,10.7X20X2.5

92200-0393

$2.72

92210

NUT,8MM

92210-0376

$10.83
