2010 Kawasaki KFX®450R Rear HUB Diagram

← All diagrams

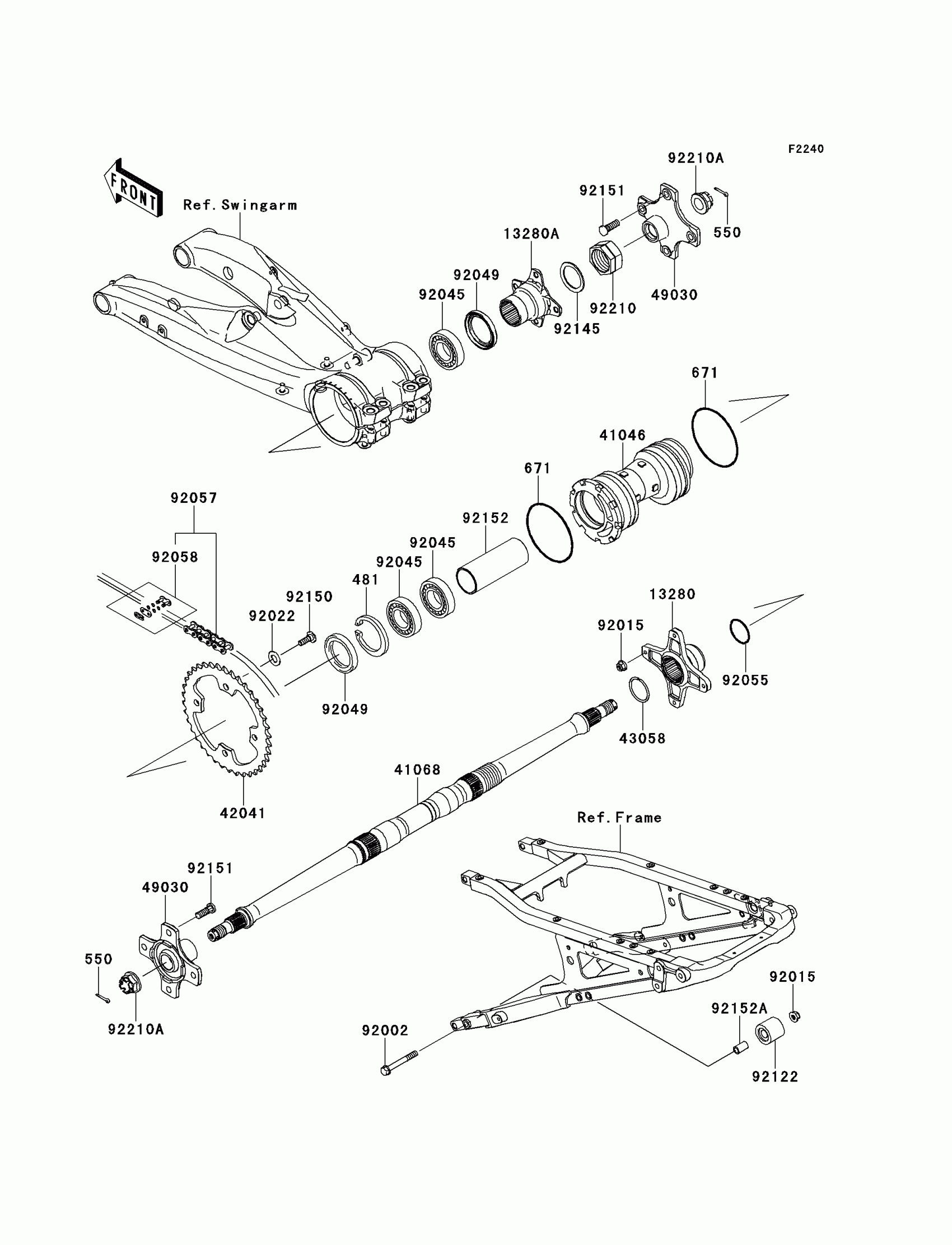

Find the part on the Rear HUB diagram for your 2010 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KFX®450R Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

CIRCLIP-TYPE-C,65MM

481J6500

1
Out of stock

550

PIN-COTTER,4.0X25

550AA4025

1
Out of stock

671

O RING,85MM

671B2585

1
Out of stock

13280

HOLDER,SPROCKET

13280-0254

1

$85.63

In stock

13280A

HOLDER,REAR DISC

13280-0255

1

$85.63

In stock

41046

HOUSING-BEARING

41046-0015

1

$250.78

In stock

41068

AXLE,RR

41068-0052

1
Out of stock

42041

SPROCKET-HUB,38T

42041-0044

1
Out of stock

43058

RING

43058-0016

1
Out of stock

49030

HUB,RR

49030-0029

1
Out of stock

92002

BOLT,FLANGED,8X65

92002-1349

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92045

BEARING-BALL,6908-82RSC3

92045-0115

1
Out of stock

92049

SEAL-OIL,TCY 48X65X8

92049-1573

1
Out of stock

92055

RING-O,35.2X1.9

92055-520

1
Out of stock

92057

CHAIN,DRIVE,EK520SR-O2X94L

92057-0119

1
Out of stock

92058

JOINT-CHAIN,DRIVE,EK520SR-O2

92058-1060

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1216

1
Out of stock

92145

SPRING

92145-0417

1
Out of stock

92150

BOLT,8X25

92150-1858

1
Out of stock

92151

BOLT,10X29.5

92151-1392

1
Out of stock

92152

COLLAR,40X45.6X117.5

92152-0405

1
Out of stock

92152A

COLLAR,8.5X12.5X20.5

92152-1340

1
Out of stock

92210

NUT,LOCK,38MM

92210-0298

1
Out of stock

92210A

NUT,CASTLE,20MM

92210-0299

1
Out of stock
