2014 Kawasaki KFX®450R Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2014 Kawasaki KFX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

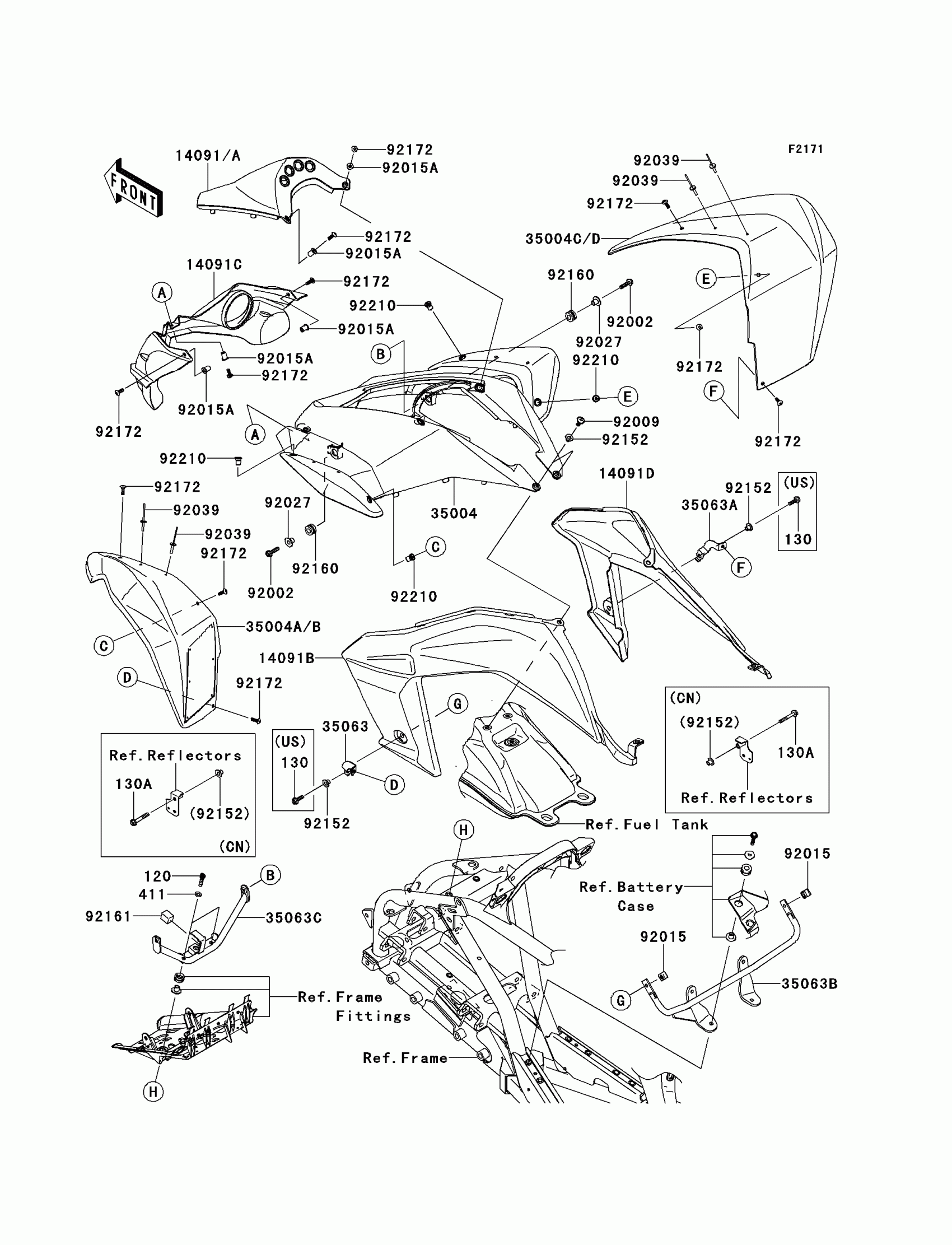

2014 Kawasaki KFX®450R Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X25

120CA0625

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock

14091A

COVER,MAINTENANCE,BLACK

14091-0554-839

1

$50.15

In stock

14091B

COVER,SIDE,LH,BLACK

14091-0555-839

1

$79.29

In stock

14091C

1

$31.44

In stock

14091D

COVER,SIDE,RH,BLACK

14091-0793-839

1

$79.29

In stock

35004

FENDER-FRONT,MAIN,L.GREEN

35004-0067-290

1
Out of stock

35004B

1

$90.81

In stock

35004D

1

$90.81

In stock

35063

1

$8.30

In stock

35063A

1

$10.05

In stock

35063B

1

$50.85

In stock

35063C

1

$47.61

In stock

92002

BOLT,6X25

92002-1339

1

$3.53

In stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92027

1

$4.37

In stock

92039

RIVET

92039-0039

1

$3.51

In stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1

$4.47

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-0661

1

$1.85

In stock

92172

SCREW,5MM

92172-0292

1

$2.71

In stock

92210

NUT,WELL,5MM

92210-0370

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

130A

BOLT-FLANGED,6X40

130CA0640

1

$2.29

In stock
