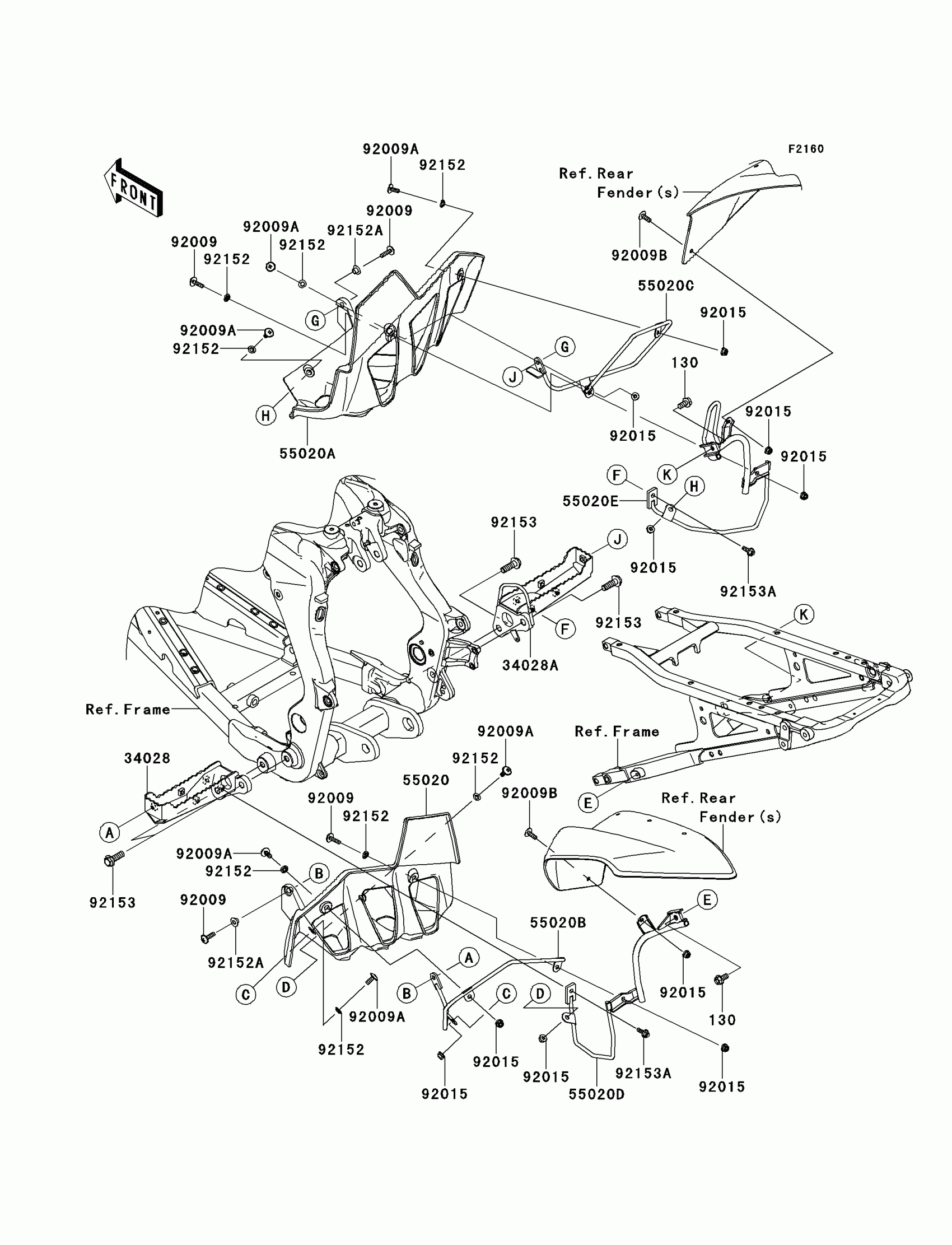

Kawasaki KFX®450R Footrests Diagram

Description

Price

130

BOLT-FLANGED,8X16

130BB0816

$1.27

34028

STEP,LH

34028-0107

$55.72

34028A

STEP,RH

34028-0108

$55.72

55020

GUARD,FOOT GUARD,LH,F.BLACK

55020-0221-6Z

$22.25

55020A

GUARD,FOOT GUARD,RH,F.BLACK

55020-0222-6Z

$22.25

55020B

GUARD,SUB,LH

55020-0223

Unavailable

55020C

GUARD,SUB,RH

55020-0226

$21.25

55020D

GUARD,MAIN,LH

55020-0406

$35.20

55020E

GUARD,MAIN,RH

55020-0407

$35.20

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,6X18

92009-1663

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92152

COLLAR

92152-0250

$2.09

92152A

COLLAR,6.3X8.3X16

92152-0286

$4.27

92153

BOLT,FLANGED,10X30

92153-0801

$3.16

92153A

BOLT,FLANGED,6X16

92153-1551

$1.57
