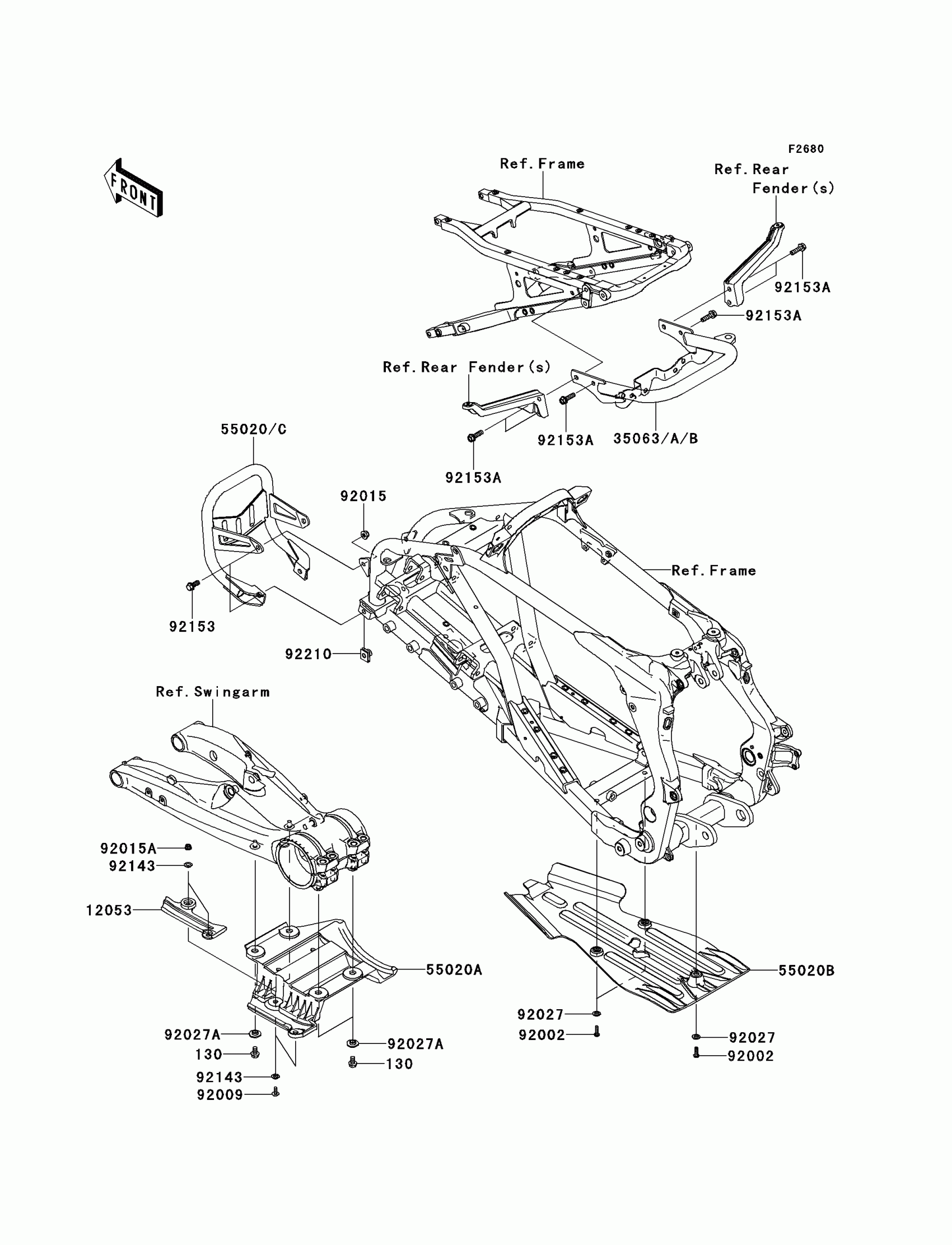

Kawasaki KFX®450R Guard(s) Diagram

Description

Price

130

BOLT-FLANGED,8X14

130BA0814

$1.54

12053

GUIDE-CHAIN

12053-0083

$6.52

35063B

STAY,REAR GRAB BAR

35063-0667

$129.89

55020

GUARD,FR

55020-0227

$132.34

55020A

GUARD,SWING ARM

55020-0393

$22.42

55020B

GUARD,ENGINE,UNDER

55020-0394

$28.47

92002

BOLT,6X20

92002-1418

$3.74

92009

SCREW,6X15

92009-3830

$2.66

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92027

COLLAR,L=4.6

92027-1168

$3.81

92027A

COLLAR

92027-1354

$3.81

92143

COLLAR

92143-1087

$2.98

92153

BOLT,8X20

92153-0892

$2.17

92153A

BOLT,FLANGED,8X28

92153-1101

$3.81

92210

NUT,8MM

92210-0376

$10.83
