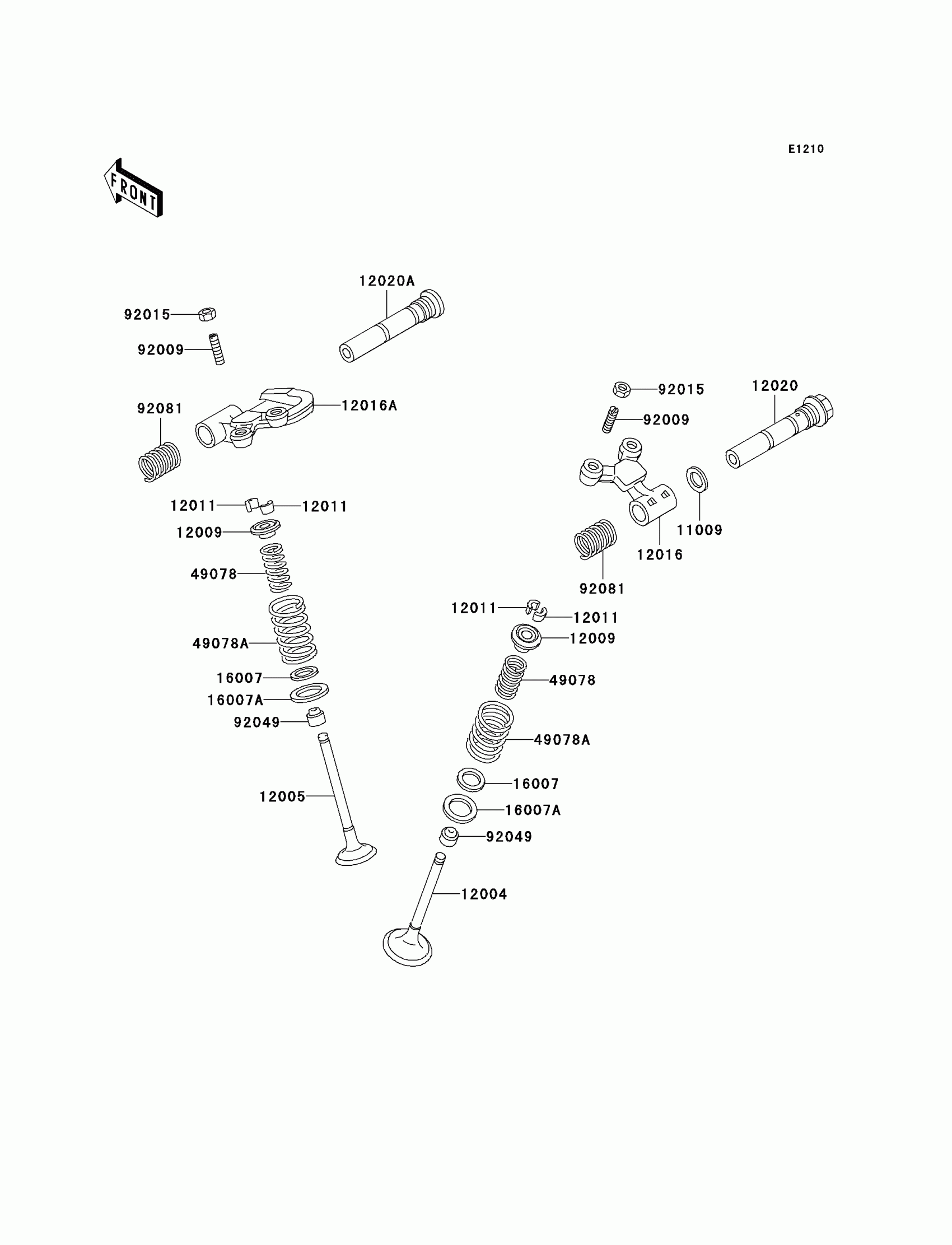

Find the part on the Valve diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KFX 250 Mojave Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X18X1.5

11009-1430

1
Out of stock

12004

VALVE-INTAKE

12004-1119

1
Out of stock

12005

VALVE-EXHAUST

12005-1052

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1054

1
Out of stock

12011

COLLET

12011-1003

1
Out of stock

12016

ARM-ROCKER,INTAKE

12016-1071

1
Out of stock

12016A

ARM-ROCKER,EXHAUST

12016-1083

1
Out of stock

12020

SHAFT-ROCKER,INTAKE

12020-1055

1
Out of stock

12020A

SHAFT-ROCKER,EXHAUST

12020-1056

1
Out of stock

16007

SEAT-SPRING,12.1X16.2X0.5

16007-1177

1
Out of stock

16007A

SEAT-SPRING,17.5X23.8X0.5

16007-1178

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1051

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1056

1
Out of stock

92009

SCREW,7MM

92009-1279

1
Out of stock

92015

NUT,7MM

92015-1325

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

92081

SPRING,ROCKER ARM

92081-1740

1
Out of stock
