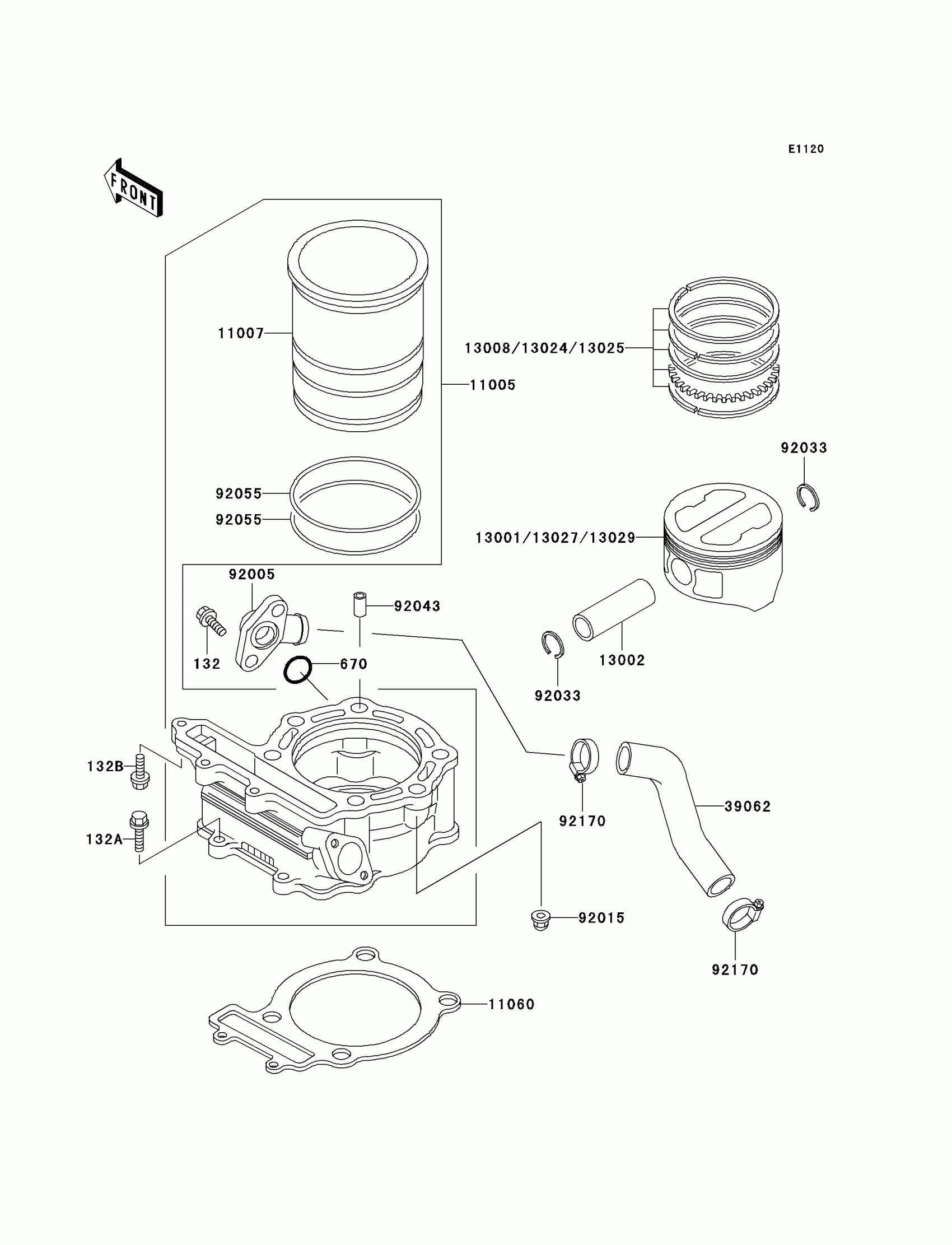

Kawasaki KFX 250 Mojave Cylinder/Piston(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

670

O RING,18MM

670B2018

$1.08

11005

CYLINDER-ENGINE

11005-1831

$569.25

11007

LINER-CYLINDER

11007-1070

$148.51

11060

GASKET,CYLINDER BASE

11060-1125

$10.59

13001

PISTON-ENGINE,STD

13001-1280

$131.10

13002

PIN-PISTON,12X18X57.2

13002-1023

$21.26

13008

RING-SET-PISTON,STD

13008-1066

$64.37

13024

RING-SET-PISTON LL,O/S 1.00

13024-1068

$75.94

13025

RING-SET-PISTON L,O/S 0.50

13025-1065

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1152

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1175

Unavailable

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1193

Unavailable

92005

FITTING

92005-1279

$22.41

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92033

RING-SNAP

92033-1182

$3.90

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,80.6X2.4

92055-1247

$12.47

92170

CLAMP,COOLING HOSE

92170-1033

$11.50
