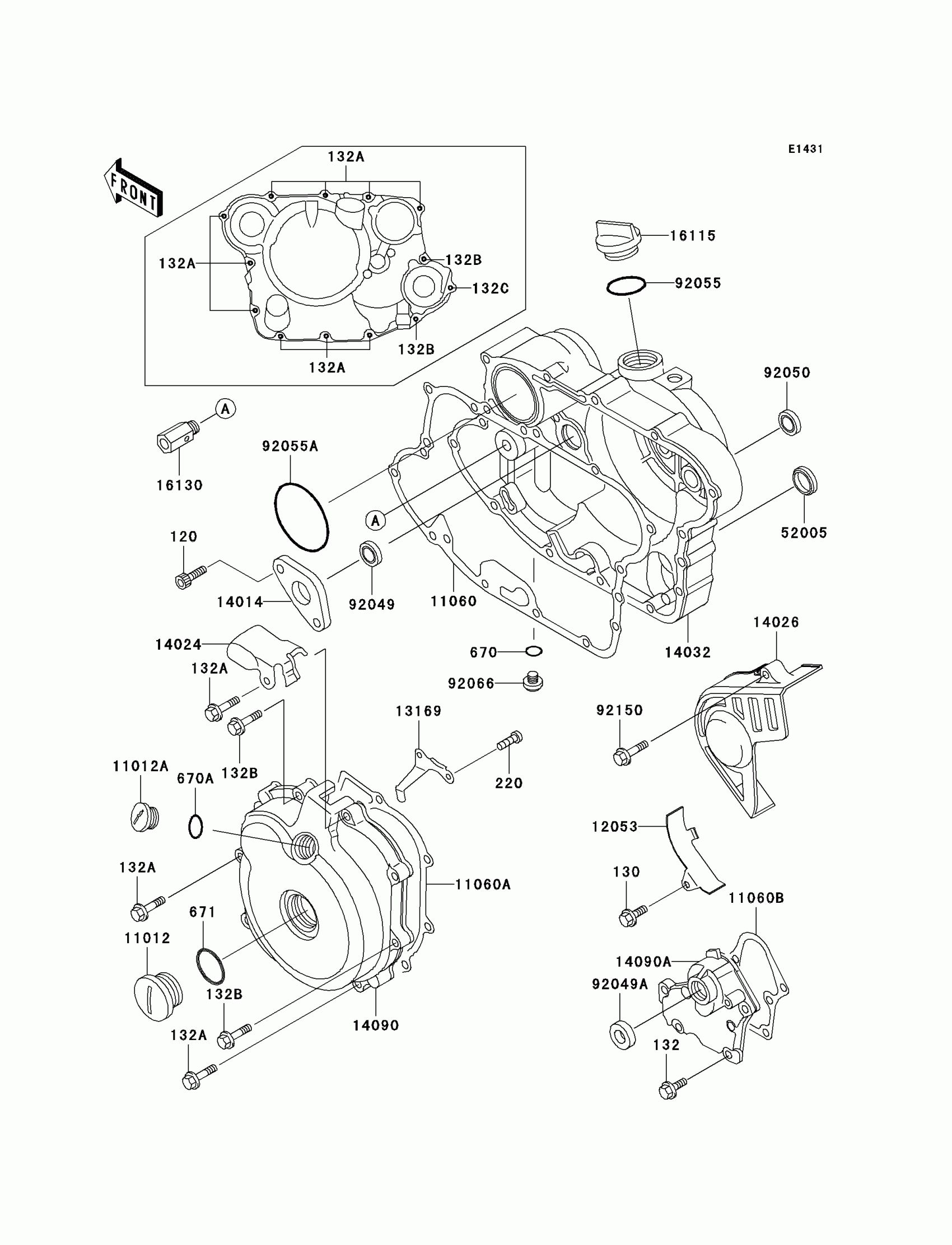

Kawasaki KFX 250 Mojave Engine Cover(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120P0610

Unavailable

130

BOLT-FLANGED

130J0610

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

132C

BOLT-FLANGED-SMALL

132J0695

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.47

670

O RING,11MM

670B2011

$0.98

670A

O RING,18MM

670B2018

$1.08

671

O RING,40MM

671B2540

$4.67

11012

CAP

11012-1362

$6.70

11012A

CAP,TOP MARK

11012-1363

$4.88

11060

GASKET,CLUTCH COVER

11060-1238

$33.44

11060A

GASKET,GENERATOR

11060-1239

Unavailable

11060B

GASKET,REVERSE COVER

11060-1240

$7.76

12053

GUIDE-CHAIN

12053-1196

$9.25

13169

PLATE,GENERATOR LEAD

13169-1692

$7.46

14014

PLATE-POSITION

14014-1079

$4.80

14024

COVER

14024-1363

$7.75

14026

COVER-CHAIN

14026-1212

$47.41

14032

COVER-CLUTCH

14032-1455

$362.88

14090

COVER,GENERATOR

14090-1757

$169.84

14090A

COVER,REVERSE

14090-1758

$76.99

16115

CAP-OIL FILLER

16115-1009

$10.86

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92049

SEAL-OIL

92049-1191

$22.97

92049A

SEAL-OIL,TB12205.5

92049-1271

$7.08

92050

SEAL-OIL

92050-078

$6.55

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,62.6X66X3.1

92055-1221

$6.75

92066

PLUG,DRAIN

92066-1156

$8.93

92150

BOLT,FLANGED,6X30

92150-1915

$2.31
