2004 Kawasaki KFX 250 Mojave Cylinder Head Diagram

← All diagrams

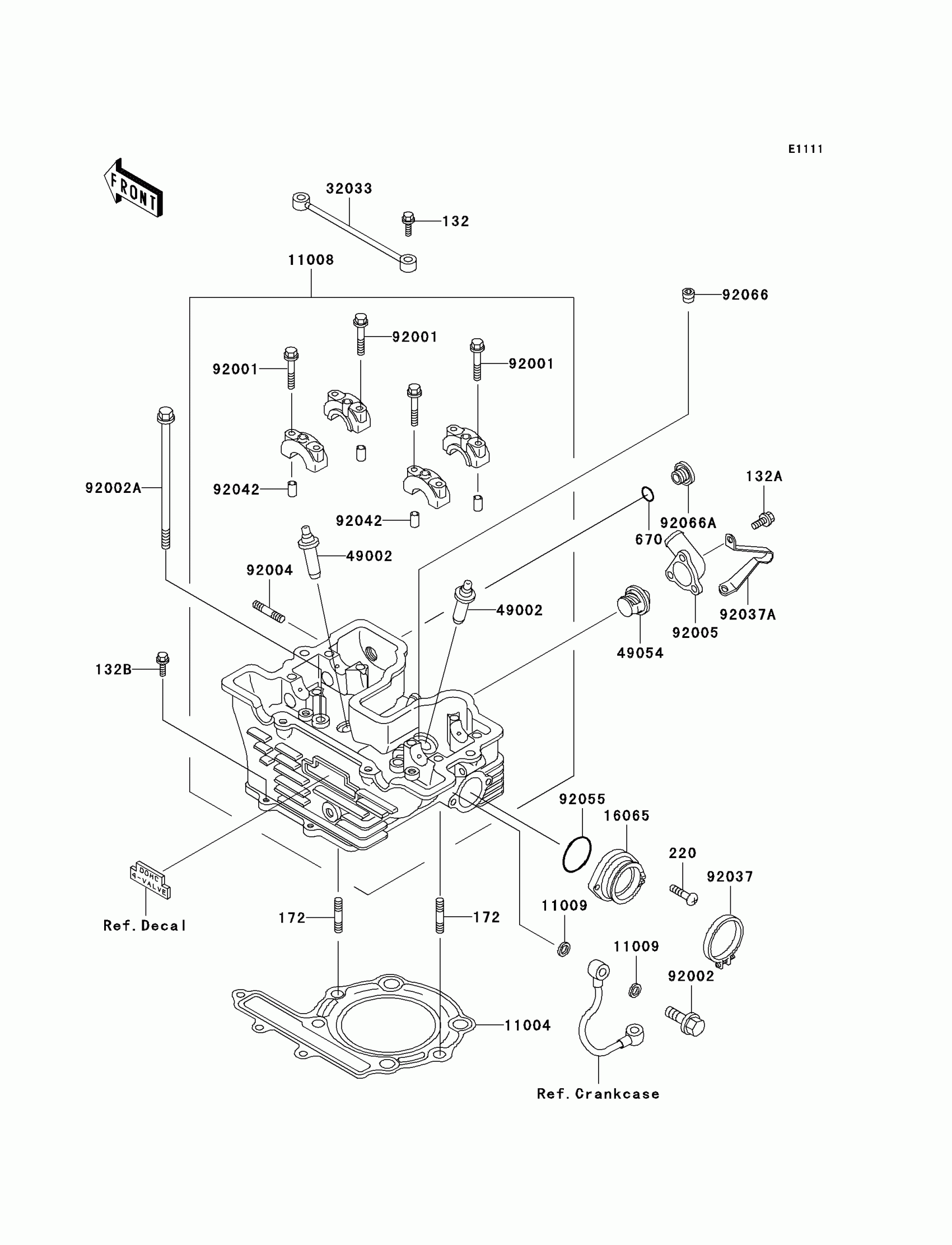

Find the part on the Cylinder Head diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KFX 250 Mojave Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

172

BOLT-STUD,8X22

172G0822

1
Out of stock

220

SCREW-PAN-CROS,6X16,BLACK

220C0616

1
Out of stock

670

O RING,20MM

670B2020

1
Out of stock

11004

GASKET-HEAD

11004-1121

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1323

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1143

1
Out of stock

32033

PIPE,OIL

32033-1402

1
Out of stock

49002

GUIDE-VALVE

49002-1052

—
Out of stock

49054

THERMOSTAT

49054-1003

1
Out of stock

92001

BOLT,6X46

92001-1872

1
Out of stock

92002

BOLT,BANJO,10X25

92002-1170

1
Out of stock

92002A

BOLT,L=162

92002-1328

1
Out of stock

92004

STUD,8X25

92004-1214

1
Out of stock

92005

FITTING

92005-1278

1
Out of stock

92037

CLAMP,ID=53,BLACK

92037-1304

1
Out of stock

92037A

CLAMP,CLUTCH CABLE

92037-1984

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92055

RING-O

92055-1255

1
Out of stock

92066

PLUG,1/8X7

92066-1173

1
Out of stock

92066A

PLUG,ROCKER SHAFT

92066-1188

1
Out of stock
