2004 Kawasaki KFX 250 Mojave Crankshaft Diagram

← All diagrams

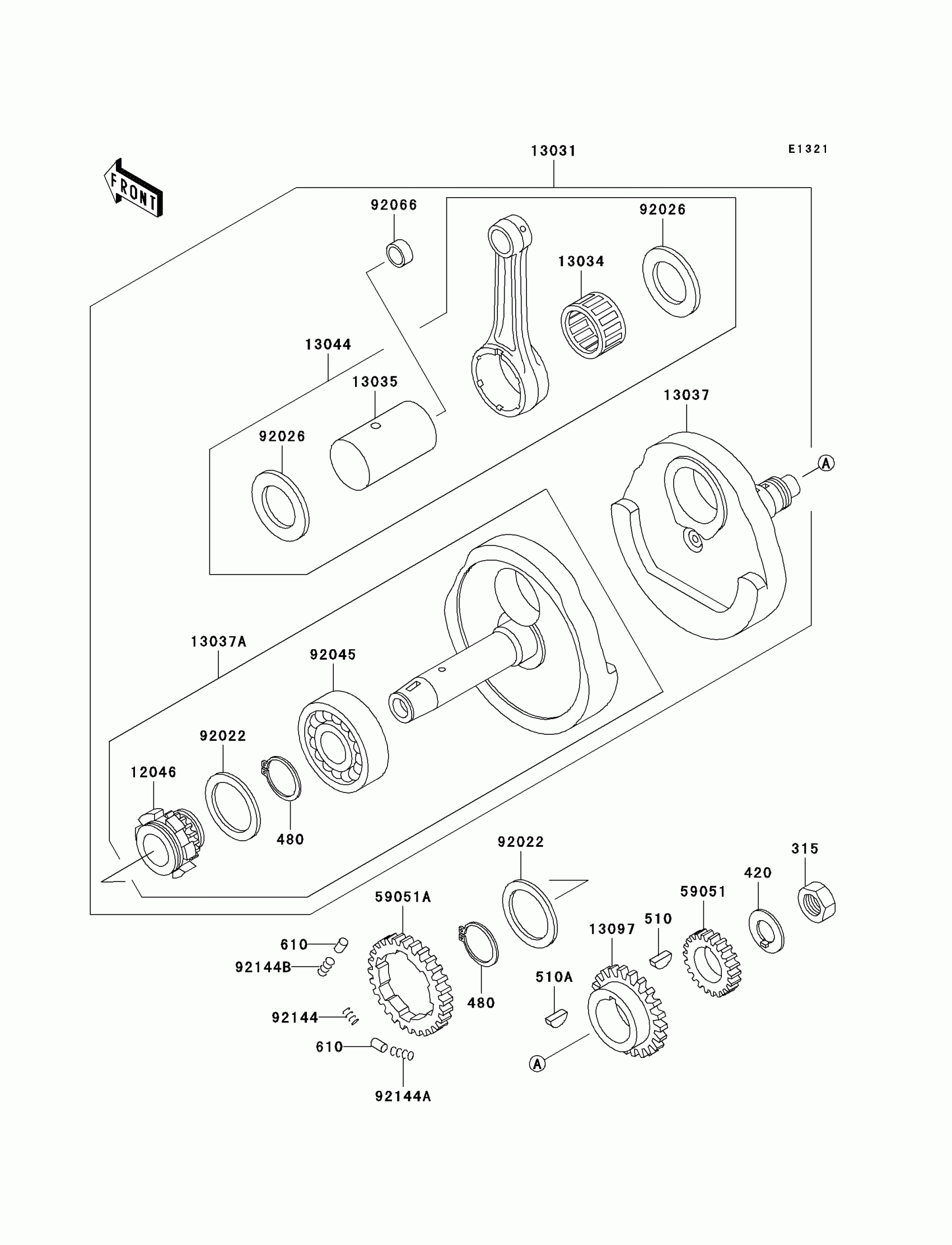

Find the part on the Crankshaft diagram for your 2004 Kawasaki KFX 250 Mojave, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KFX 250 Mojave Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,16MM

315B1600

1
Out of stock

420

WASHER-CLAW,16MM

420B1611

1
Out of stock

480

CIRCLIP

480J4000

1
Out of stock

510

KEY-WOODRUFF

510A3100

1
Out of stock

510A

WOODRUFF KEY

510A5100

1
Out of stock

610

ROLLER

610A0510

1
Out of stock

12046

SPROCKET,CAM,21T

12046-1086

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1280

1
Out of stock

13034

BEARING-BIG END

13034-1085

1
Out of stock

13035

PIN-CRANK

13035-1069

1
Out of stock

13037

CRANKSHAFT,RH

13037-1284

1
Out of stock

13037A

CRANKSHAFT,LH

13037-5070

1
Out of stock

13044

SET-CONNECTING ROD

13044-5075

1
Out of stock

13097

1

$81.58

In stock

59051

GEAR-SPUR,OIL PUMP,18T

59051-1122

1
Out of stock

59051A

GEAR-SPUR,BALANCER,39T

59051-1169

1
Out of stock

92022

WASHER,40.5X60X1.6

92022-1798

1
Out of stock

92026

SPACER,32.2X51.5X1.2

92026-1348

1
Out of stock

92045

BEARING-BALL

92045-1172

1
Out of stock

92066

PLUG

92066-1249

1
Out of stock

92144

SPRING,BALANCER OUTSIDE

92144-1091

1
Out of stock

92144A

SPRING,BALANCER,INSIDE

92144-1092

1
Out of stock

92144B

SPRING,BALANCER GEAR

92144-1248

1
Out of stock
