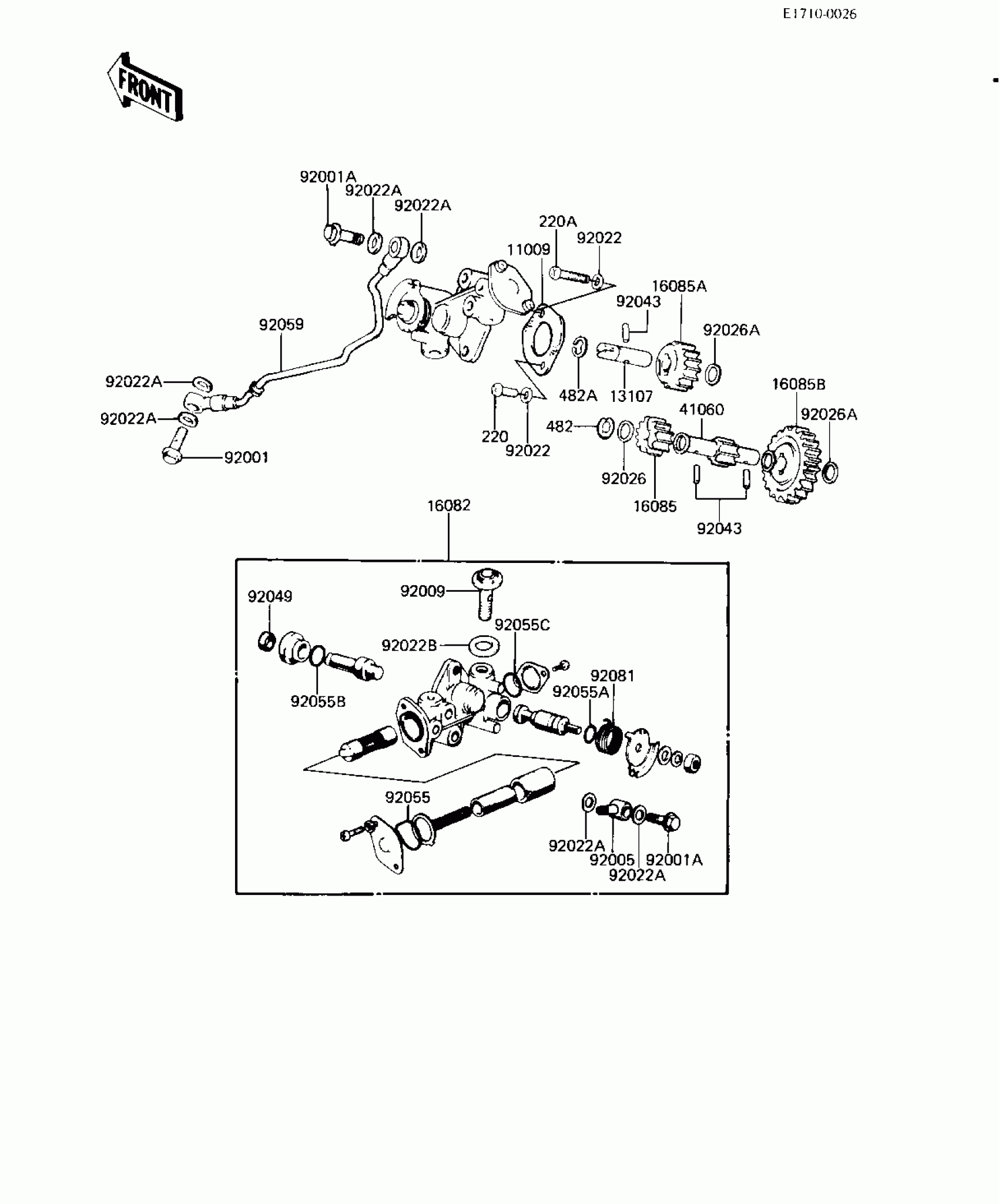

Kawasaki KE125 OIL PUMP ('82-'83 A9/A10) Diagram

#

Description
Price

11009

GASKET,OIL PUMP

11060-1160

$4.20

13107

SHAFT,OIL PUMP GEAR

16086-003

$10.42

16082

OIL PUMP ASSY

16082-1014

$251.59

16085

GEAR,OIL PUMP

16085-020

$17.90

16085A

GEAR,OIL PUMP

16085-021

$17.90

16085B

GEAR,OIL PUMP

16085-021

$17.90

41060

PINION,TACHOMETER

13224-010

Unavailable

92001

BOLT,BANJO,L=13.5

92060-008

$13.27

92001A

BOLT,BANJO,L=16

92060-013

$4.88

92005

FITTING,BANJO

92061-009

$14.88

92009

BOLT,AIR VENT

92009-1010

$14.19

92022

WASHER,5.5X10.5X0.8

92022-037

$2.99

92022A

WASHER OIL PUMP BANJO

92022-077

$2.84

92022B

WASHER

92022-1006

$5.14

92026

WASHER,THRUST

92026-095

Unavailable

92043

PIN,DOWEL

92042-035

Unavailable

92049

SEAL-OIL,OIL PUMP SHAFT

16091-001

$5.53

92055

RING-O,CAP,BANJO SIDE

16088-002

$7.52

92055A

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$7.91

92055B

RING-O,OIL PUMP SHAFT

16090-002

$5.53

92055C

RING-O,CAP,CAMSHAFT SIDE

16090-004

Unavailable

92059

PIPE,OIL

16134-022

Unavailable

92081

SPRING,OIL PUMP LEVER

16093-007

$9.42

220

SCREW-PAN-CROS

220B0514

Unavailable

220A

SCREW-PAN-CROS

220B0528

$1.34

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

482A

CIRCLIP-TYPE-E,7MM

482J7000

$0.76
