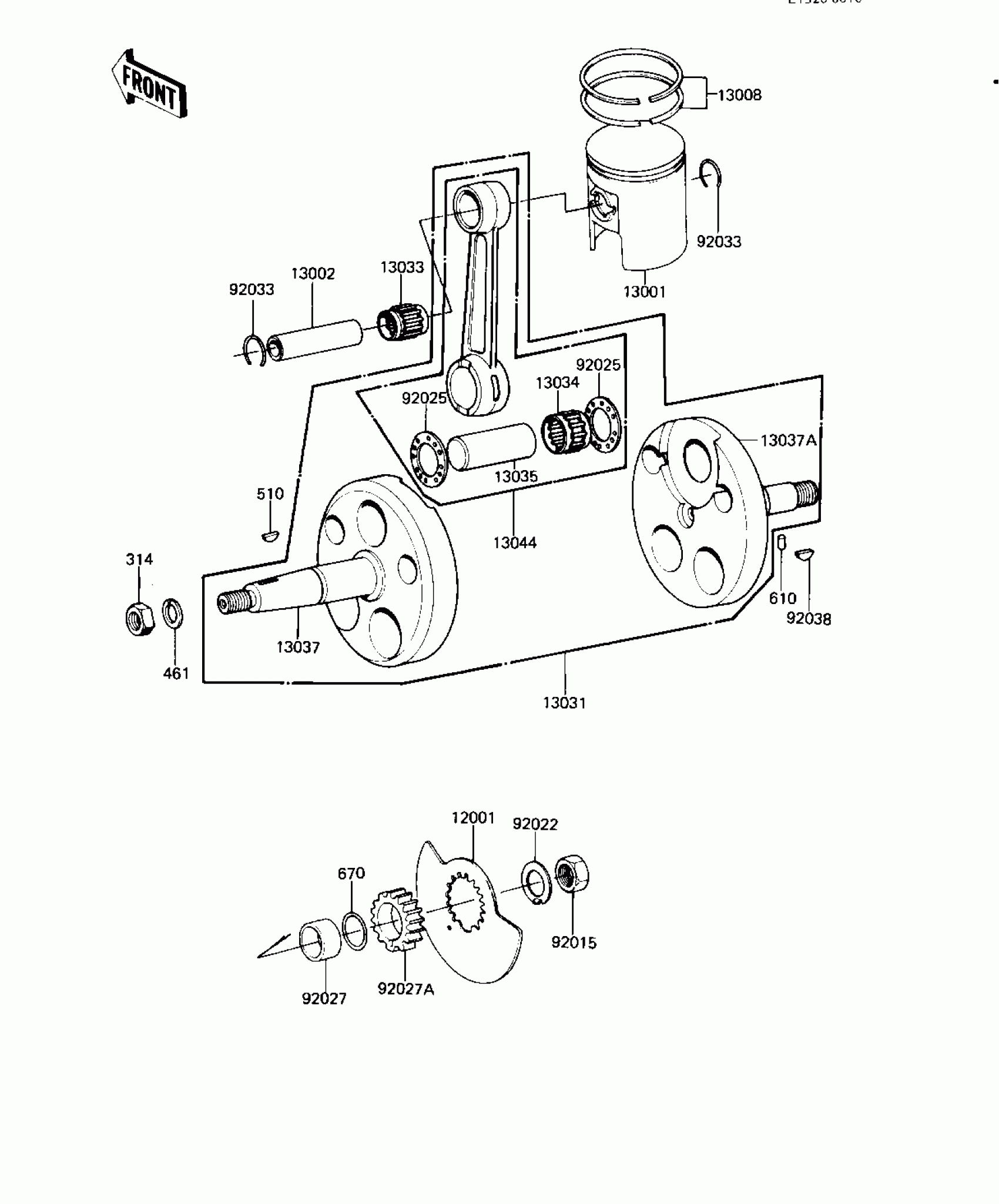

Kawasaki KE125 CRANKSHAFT/PISTON/ROTARY VALVE ('82-'83 Diagram

Description

Price

12001

VALVE,ROTARY DISC

12002-029

$29.29

13001

PISTON-ENGINE,STD

13001-1124

Unavailable

13002

PIN-PISTON

13002-1002

Unavailable

13008

RING-SET,PISTON,S.T.D

13008-5010

Unavailable

13031

CRANK AND CONROD ASSY

13031-1003

Unavailable

13033

BRG,N,UR14/20AP-1

13033-035

Unavailable

13034

BRG,NEEDLE,KT202715EG

13034-1001

Unavailable

13035

CRANK PIN

13035-033

Unavailable

13037

CRANKSHAFT,L.H

13037-059

Unavailable

13037A

CRANKSHAFT,R.H.

13037-1084

Unavailable

13044

CONNECTING ROD SET

13044-5003

Unavailable

92015

NUT,12MM

92015-006

$4.92

92022

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable

92025

SHIM,20X34.5X1.0

92025-005

$8.63

92027

COLLAR,20X25X12.5

92027-1077

$16.82

92027A

COLLAR,ROTARY DISC

92027-1272

$21.76

92033

RING-SNAP,PISTON PIN

92036-003

$0.55

92038

KEY,WOODRUFF

92038-003

$3.89

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

510

KEY-WOODRUFF

510A3200

$1.87

610

ROLLER,4X10

610A0410

$3.29

670

O RING,16MM

670B2016

$1.04
