1983 Kawasaki KE125 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1983 Kawasaki KE125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

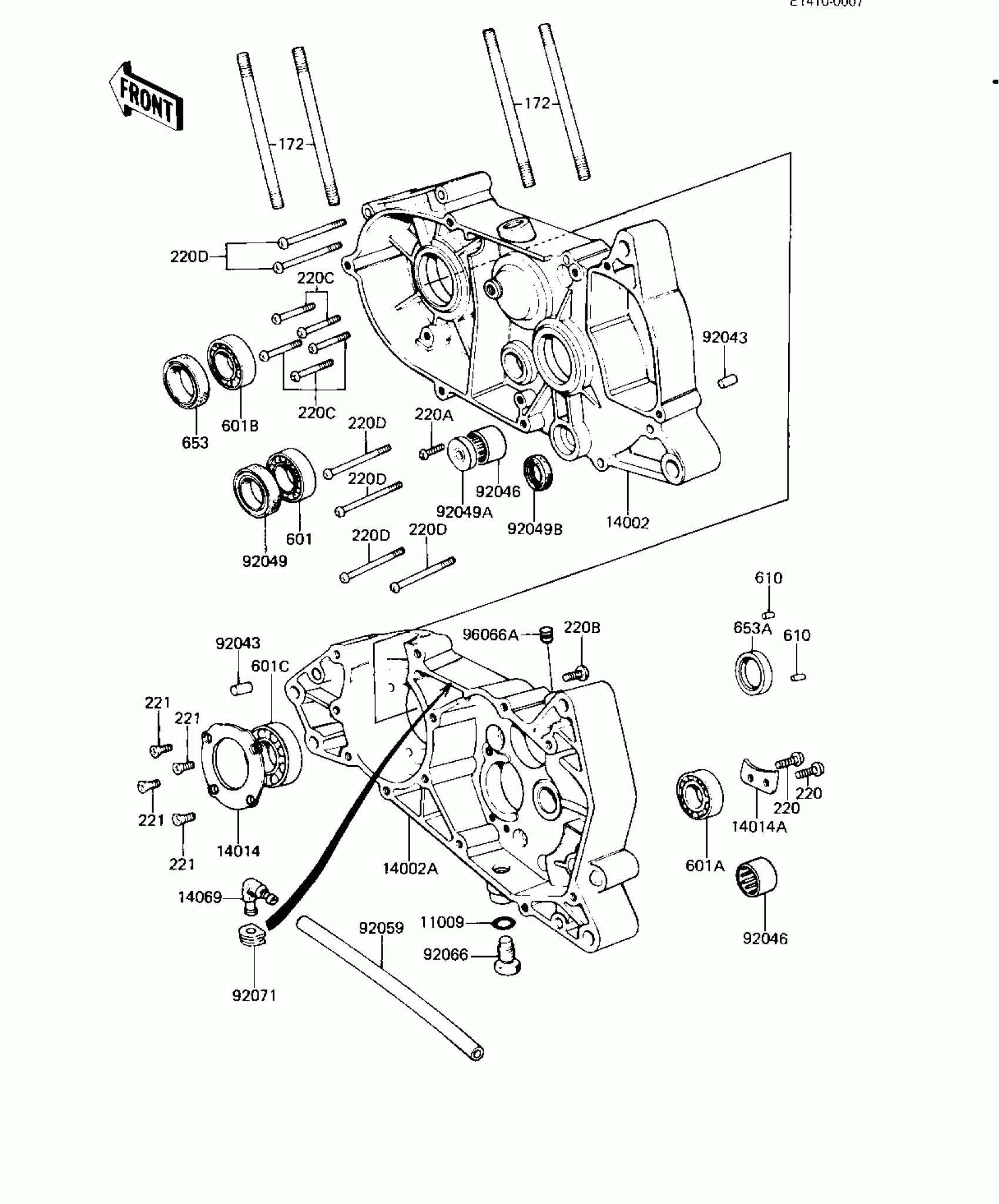

1983 Kawasaki KE125 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,12.5X18X1,DRAIN PLUG

92065-073

1
Out of stock

14002

SET-CRANKCASE,F.BLACK

14001-5138

1
Out of stock

14002A

SET-CRANKCASE,F.BLACK

14001-5138

1
Out of stock

14014

PLATE,CRANK BEARING

14014-028

1
Out of stock

14014A

PLATE,MISSION BERNG

14014-029

1
Out of stock

14069

BREATHER ASSY

14069-1001

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92046

BEARING-NEEDLE,7E-HK1412

92046-037

1
Out of stock

92049

SEAL-OIL,SC25376

92050-013

1
Out of stock

92049A

OIL SEAL,PUSH ROD

92050-058

1
Out of stock

92049B

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92059

BREATHER ASSY

14069-1001

1
Out of stock

92066

PLUG

92066-1240

1
Out of stock

92066A

PLUG,15X19

92074-035

1
Out of stock

92071

GROMMET,BREATHER

92071-042

1
Out of stock

172

STUD,8X70

172G0870

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

220B

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

220C

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

220D

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

221

SCREW-CSK-CROS,6X16

221B0616

1
Out of stock

601

BEARING-BALL,#6004C3

601B6004

1
Out of stock

601A

BEARING-BALL,#6203C3

601B6203

1
Out of stock

601B

BEARING-BALL,#6204C3

601B6204

1
Out of stock

601C

BEARING BALL #6304

601B6304

1
Out of stock

610

ROLLER,5X12

610A0512

1
Out of stock

653

SEAL-OIL

92049-1240

1
Out of stock

653A

SEAL-OIL

92049-1250

1
Out of stock
