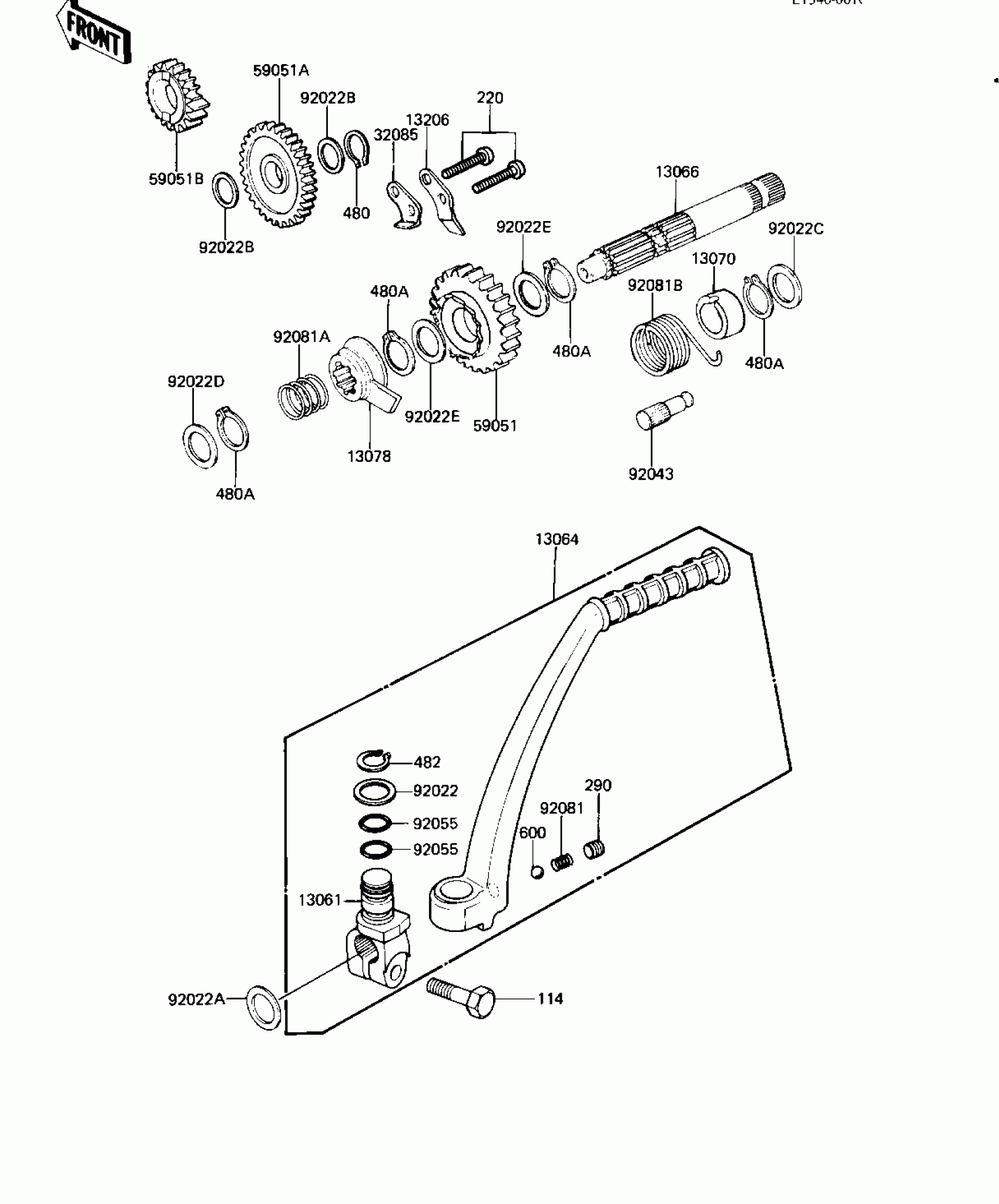

Kawasaki KE125 KICKSTARTER MECHANISM ('82-'83 A9/A10) Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1045

Unavailable

13064

PEDAL ASSY,KICK

13064-1027

Unavailable

13066

SHAFT,KICKSTARTER

13066-1012

Unavailable

13070

GUIDE,KICKSPRING

13070-008

Unavailable

13078

RATCHET

13078-1052

$67.80

13206

GUIDE,KICKSTARTER

13206-010

Unavailable

32085

STOPPER,KICKSTARTER

32085-1061

$5.36

59051

GEAR,KICKSTARTER

13068-032

Unavailable

59051A

IDLE GEAR,KICKSTARTER

13073-011

Unavailable

59051B

PINION,KICKSTARTER

13075-010

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,16.3X24X1

92022-1205

Unavailable

92022B

WASHER,PLAIN

92022-267

$5.75

92022C

WASHER,PLAIN

92022-268

Unavailable

92022D

WASHER,12.3X20X0.5

92022-269

$0.98

92022E

WASHER,16.8X22X0.5

92022-315

$4.67

92043

92043-102

Unavailable

92055

RING-O,10X1.5

92055-061

$3.65

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92081B

SPRING,KICKSTARTER

92082-005

Unavailable

114

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

482

CIR CLIP

482K0100

$0.60

600

BALL-STEEL,1/4

600A0800

$0.59
