1983 Kawasaki KE125 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1983 Kawasaki KE125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

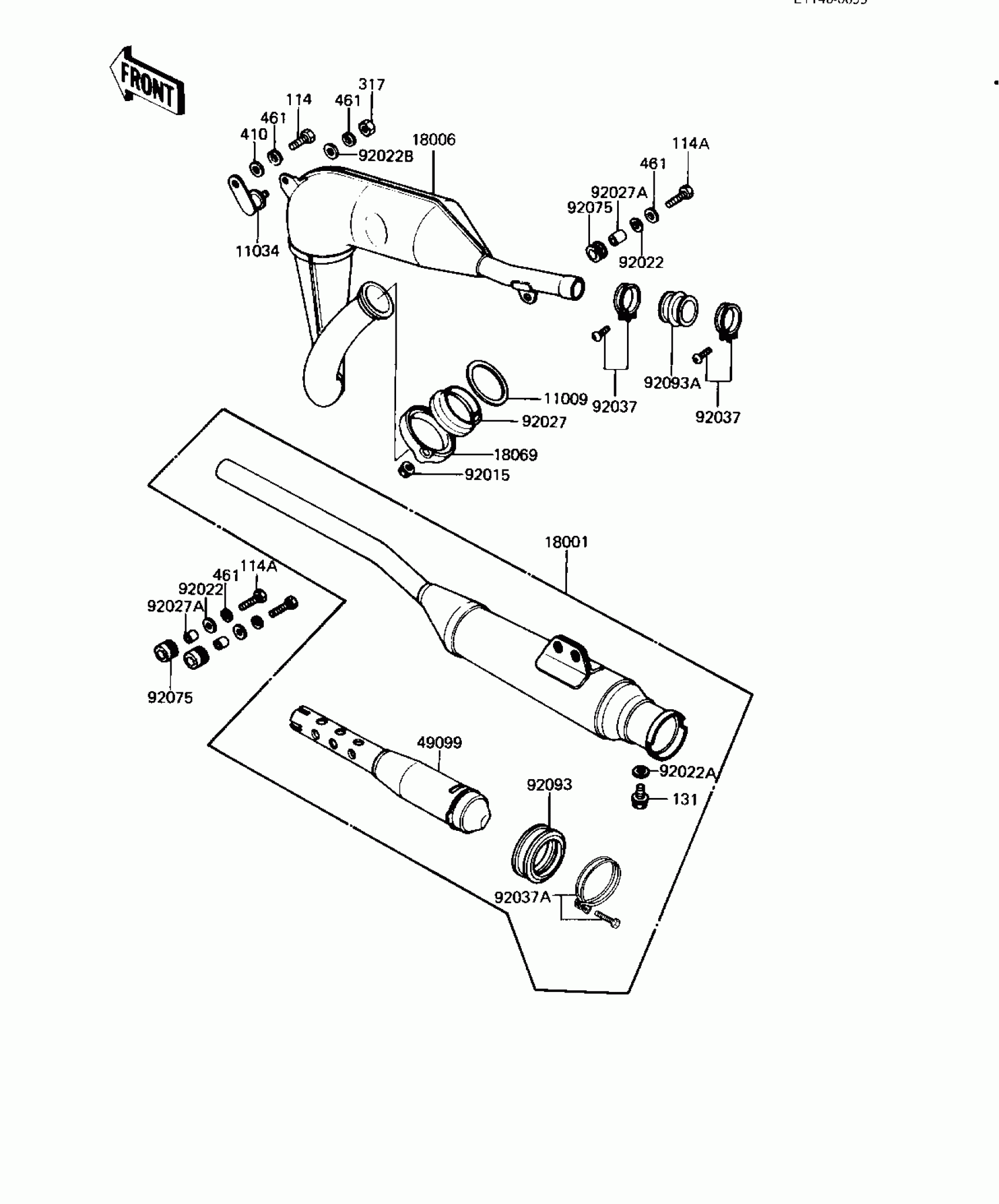

1983 Kawasaki KE125 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET EXHAUST PIPE

18067-008

1
Out of stock

11034

BRACKET,MUFFLER

18061-060

1
Out of stock

18001

MUFFLER

18001-1279

1
Out of stock

18006

BODY-MUFFLER

18006-1135

1
Out of stock

18069

HOLDER,EXHAUST PIPE

18069-057

1
Out of stock

49099

BAFFLE PIPE,MUFFLER

49099-1028

1
Out of stock

92015

NUT,LOCK,8MM

92017-013

1
Out of stock

92022

WASHER,8X26X2.3

92022-1564

1
Out of stock

92022A

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022B

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92027

INSERT,EXHAUST HOLDER

18070-007

1
Out of stock

92027A

COLLAR

92027-102

1
Out of stock

92037

CLAMP,CONNECTOR

92037-1127

1
Out of stock

92037A

CLAMP MUFFLER

92037-1190

1
Out of stock

92075

DAMPER RUBBER-MUFFLER

18063-005

1
Out of stock

92093

DUST SHIELD,MUFFLER

92093-1013

1
Out of stock

92093A

SEAL,MUFFLER CONNECTING

92093-1020

1
Out of stock

114

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

114A

BOLT HEX HEAD 8X28

114G0828

1
Out of stock

131

BOLT-FLANGED,6X8

130B0608

1
Out of stock

317

NUT-HEX-SMALL,8MM

317B0800

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
