1983 Kawasaki KE125 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1983 Kawasaki KE125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

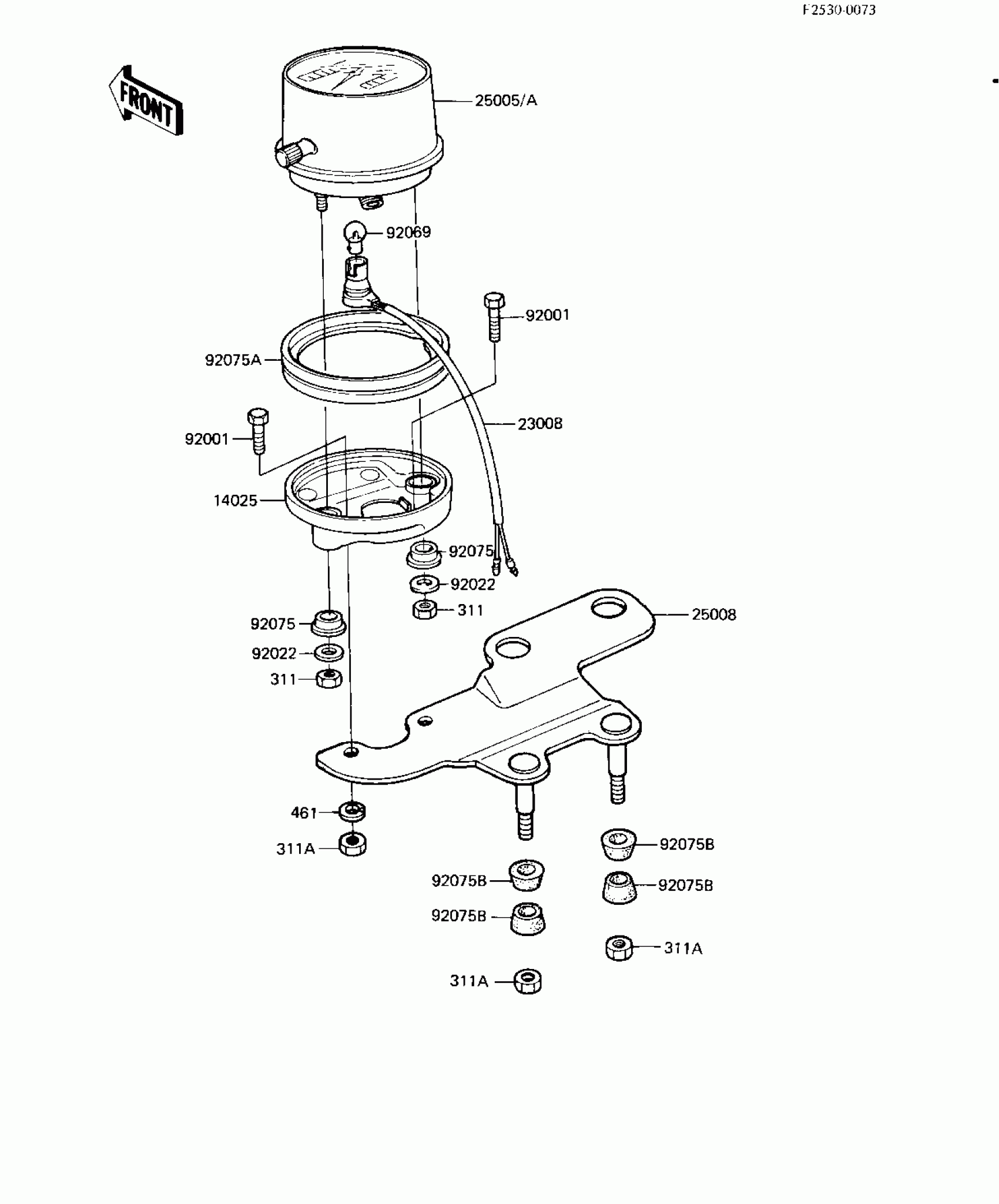

1983 Kawasaki KE125 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025

COVER,METER

14025-1075

1
Out of stock

23008

SOCKET ASSY,SPEEDOMET

25010-021

1
Out of stock

25005A

SPEEDOMETER,KM/H (Canada)

25005-1074

1
Out of stock

25008

BRACKET,METER

25008-1025

1
Out of stock

92001

BOLT,HEX HEAD,6X14

92003-204

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,6V 3W,CLEAR

92069-053

1
Out of stock

92075

DAMPER,METER

25019-023

1
Out of stock

92075A

DAMPER,METER

92075-1102

1
Out of stock

92075B

DAMPER RUBBER,METER

92075-248

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

311A

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
← Ignition Switch/locks/reflectors ('82-'8 Taillight →

More Electrical diagrams
