1983 Kawasaki KE125 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1983 Kawasaki KE125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

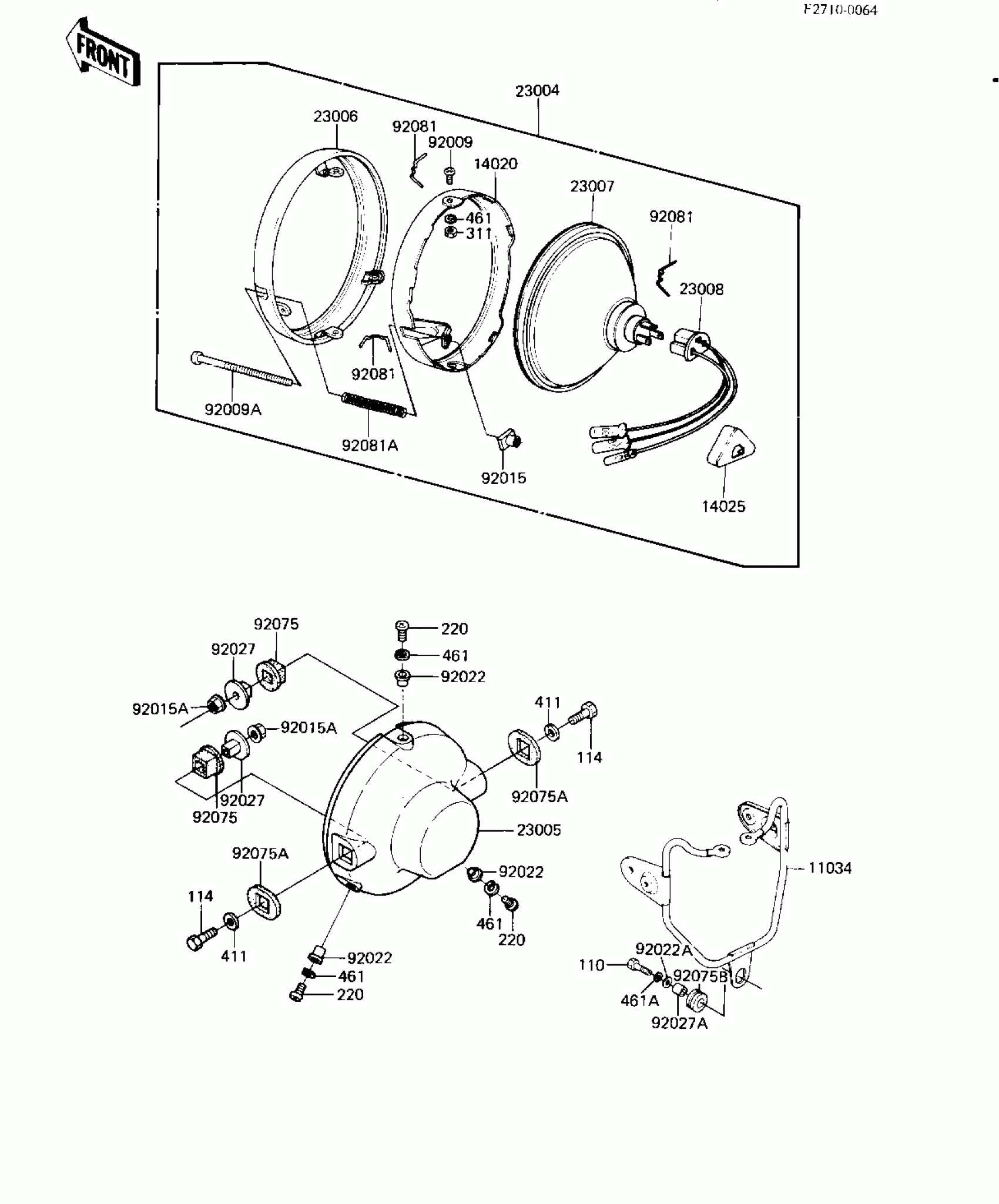

1983 Kawasaki KE125 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,HEAD LMP BODY

11034-1701

1
Out of stock

14020

RETAINER,SEALED BEAM

23072-002

1
Out of stock

14025

COVER,HEAD LAMP SOCKET

23081-001

1
Out of stock

23004

LAMP-HEAD

23004-1030

1
Out of stock

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

1
Out of stock

23006

RIM-LAMP

23006-1004

1
Out of stock

23007

LENS-COMP,"4020" MARK

23007-055

1
Out of stock

23008

SOCKET-ASSY,HEAD LAMP

23008-044

1
Out of stock

92009

SCREW,LENS FITTING

23019-026

1
Out of stock

92009A

SCREW,FOCUS ADJUSTING

23019-027

1
Out of stock

92015

NUT,ADJUSTING

23020-012

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92022

WASHER

23021-010

1
Out of stock

92022A

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,L=15.6

92027-1105

1
Out of stock

92072A

COLLAR,6.8X10X12

92027-162

1
Out of stock

92075

DAMPER,HEAD LAMP

92075-1077

1
Out of stock

92075A

DAMPER

92075-1076

1
Out of stock

92075B

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92081

SPRING,HEAD LAMP LENS

23009-015

1
Out of stock

92081A

SPRING,FOCUS ADJUSTING

23014-012

1
Out of stock

110

BOLT-UPSET

112G0625

1
Out of stock

114

BOLT-SMALL,8X30

114N0830

1
Out of stock

220

SCREW-PAN-CROS

220B0512

1
Out of stock

311

NUT-HEX

311B0400

1
Out of stock

411

WASHER-PLAIN,8MM

411D0800

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
