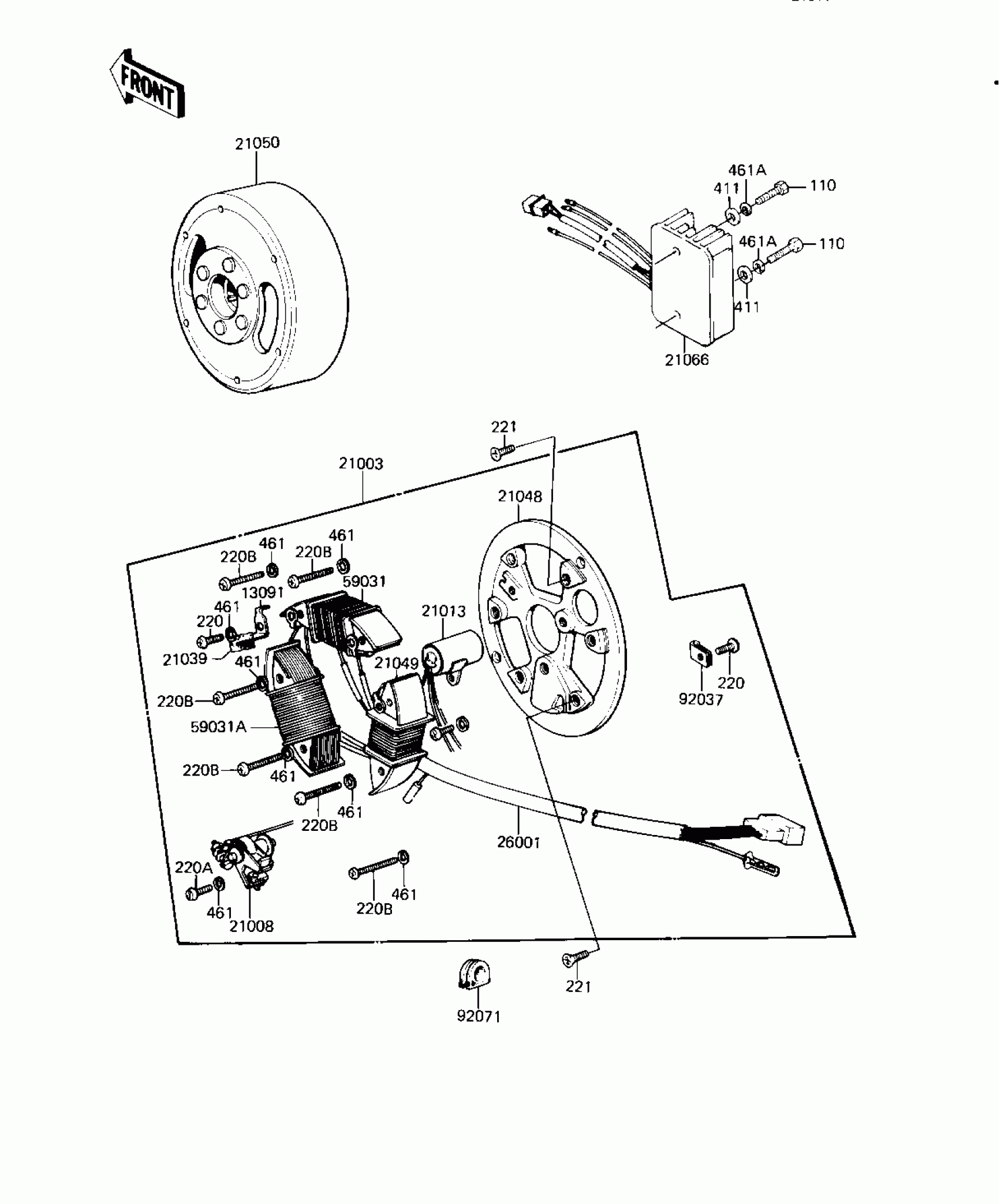

Kawasaki KE125 GENERATOR/REGULATOR ('82-'83 A9/A10) Diagram

Description

Price

13091

HOLDER,OIL FELT

21038-002

Unavailable

21003

STATOR

21003-1014

Unavailable

21008

BREAKER,CONTACT

21008-006

$50.32

21013

CONDENSER

21013-006

Unavailable

21039

BRUSH,OIL

21019-005

Unavailable

21048

PLATE-COIL,MAGNETO

21048-1002

$70.10

21049

COIL-EXCITING

21049-1004

Unavailable

21050

FLYWHEEL,MAGNETO

21050-1008

$447.84

21066

REGULATOR-VOLTAGE

21066-1012

Unavailable

26001

HARNESS,MAGNETO

26001-1077

$67.94

59031

COIL-CHARGING,A

59031-1001

$96.22

59031A

COIL-CHARGING,B

59031-1002

Unavailable

92037

CLAMP,WIRING HARNESS

21037-002

Unavailable

92071

GROMMET

21017-002

$4.04

110

BOLT-UPSET

112G0625

Unavailable

220

SCREW PAN HEAD 4X6

220B0406

$1.25

220A

SCREW-PAN-CRSOSS,4X1

220B0412

$0.25

220B

SCREW-PAN-CROS

220B0430

$0.80

221

SCREW-CSK-CROS,6X14

221B0614

Unavailable

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 4MM

461F0400

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
