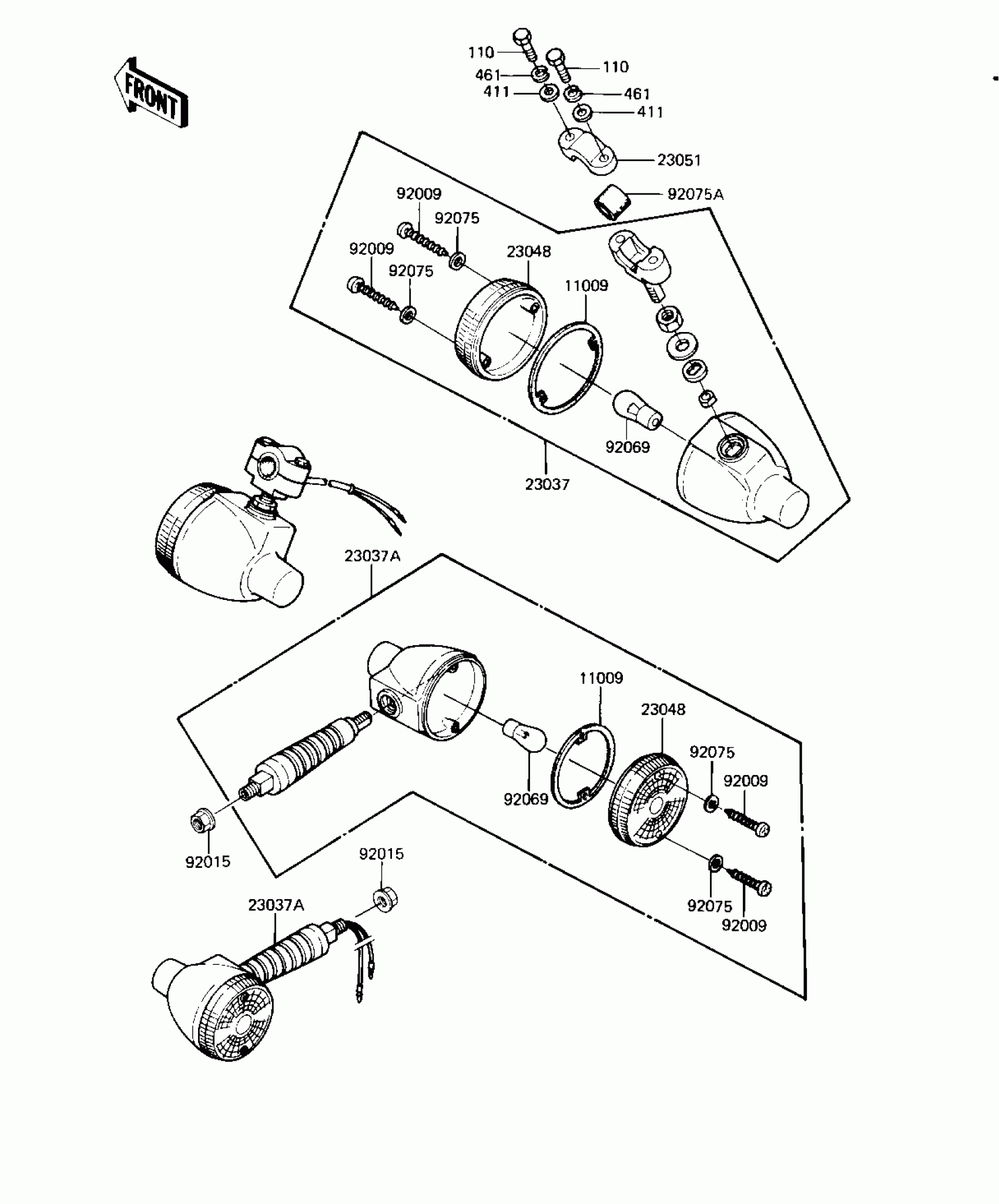

Kawasaki KE125 TURN SIGNALS ('82-'83 A9/A10) Diagram

Description

Price

11009

GASKET,TURN SIGNAL LAMP LENS

11009-1128

$4.85

23037

LAMP-ASSY-SIGNAL,FR

23037-1039

Unavailable

23037A

LAMP-ASSY-SIGNAL,RR

23037-1087

$71.10

23048

LENS-SIGNAL LAMP

23048-1076

$7.43

23051

BRACKET-SIGNAL LAMP

23051-1018

Unavailable

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92069

BULB,6V 21CP

92069-056

$4.86

92075

WASHER,PLAIN,4MM

23058-002

$1.77

92075A

DAMPER

23066-003

Unavailable

110

BOLT,HEX HEAD,5X30

110B0530A

Unavailable

411

WASHER-PLAIN,5MM

411B0500

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable
