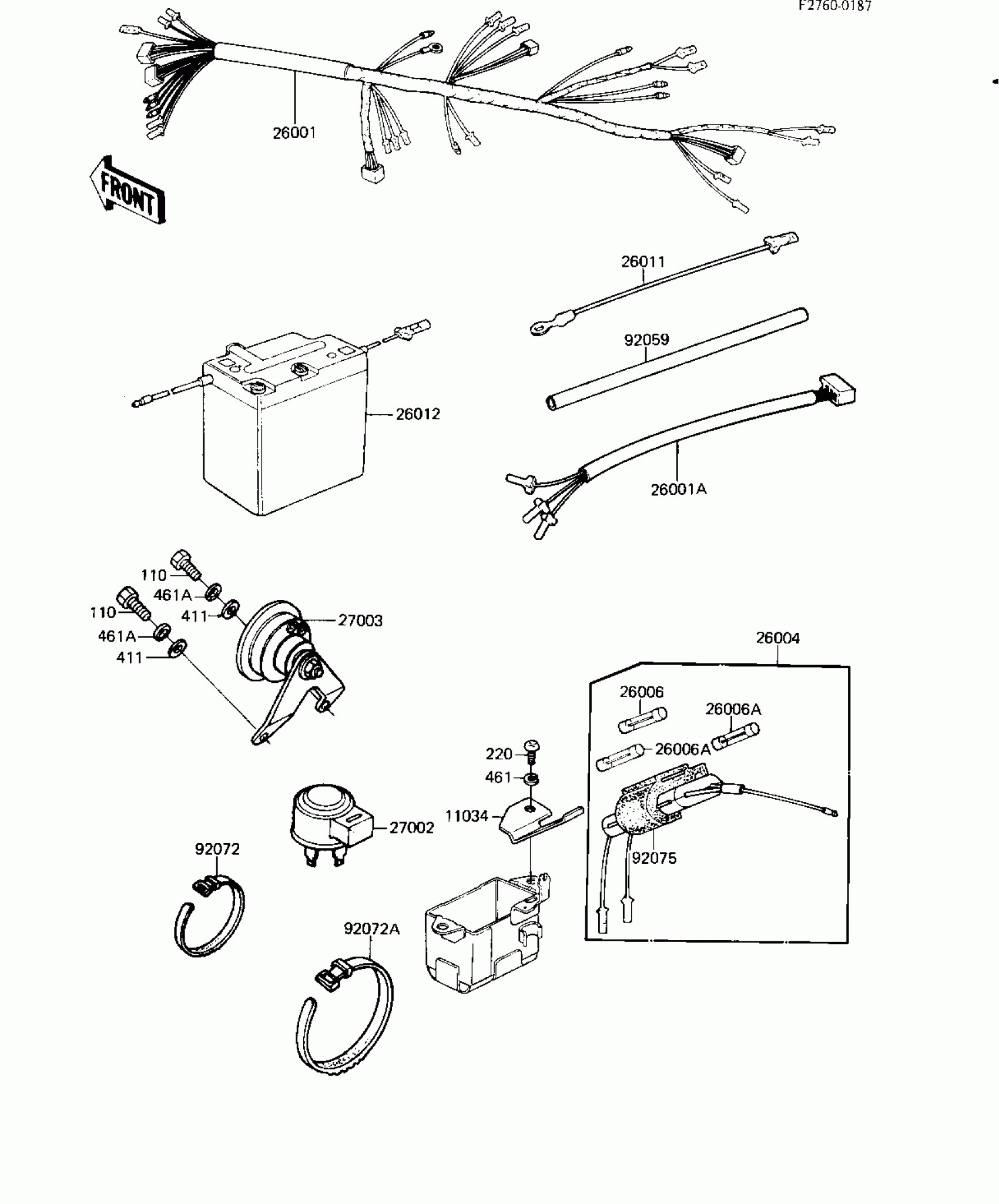

Kawasaki KE125 CHASSIS ELECTRICAL EQUIPMENT ('82-'83 A9 Diagram

Description

Price

11034

BRACKET,FUSE

11034-1368

Unavailable

26001

HARNESS,MAIN

26001-1225

$106.54

26001A

WIRING HARNESS,TL LMP

26002-046

Unavailable

26004

FUSE-ASSY

26004-1010

Unavailable

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26006A

FUSE,15A,L=30

26006-1003

$4.47

26011

WIRE-LEAD

26011-093

Unavailable

26012

YUA BAT 6N6-1D-2

K26012-034

$46.27

27002

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

27003

HORN

27003-1008

$58.90

92059

TUBE,6X7X380

92059-1143

$3.32

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=218

92072-032

$3.81

92075

DAMPER RUBBER

92075-1044

Unavailable

110

BOLT-UPSET,6X16

112G0616

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
