1981 Kawasaki KE100 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1981 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

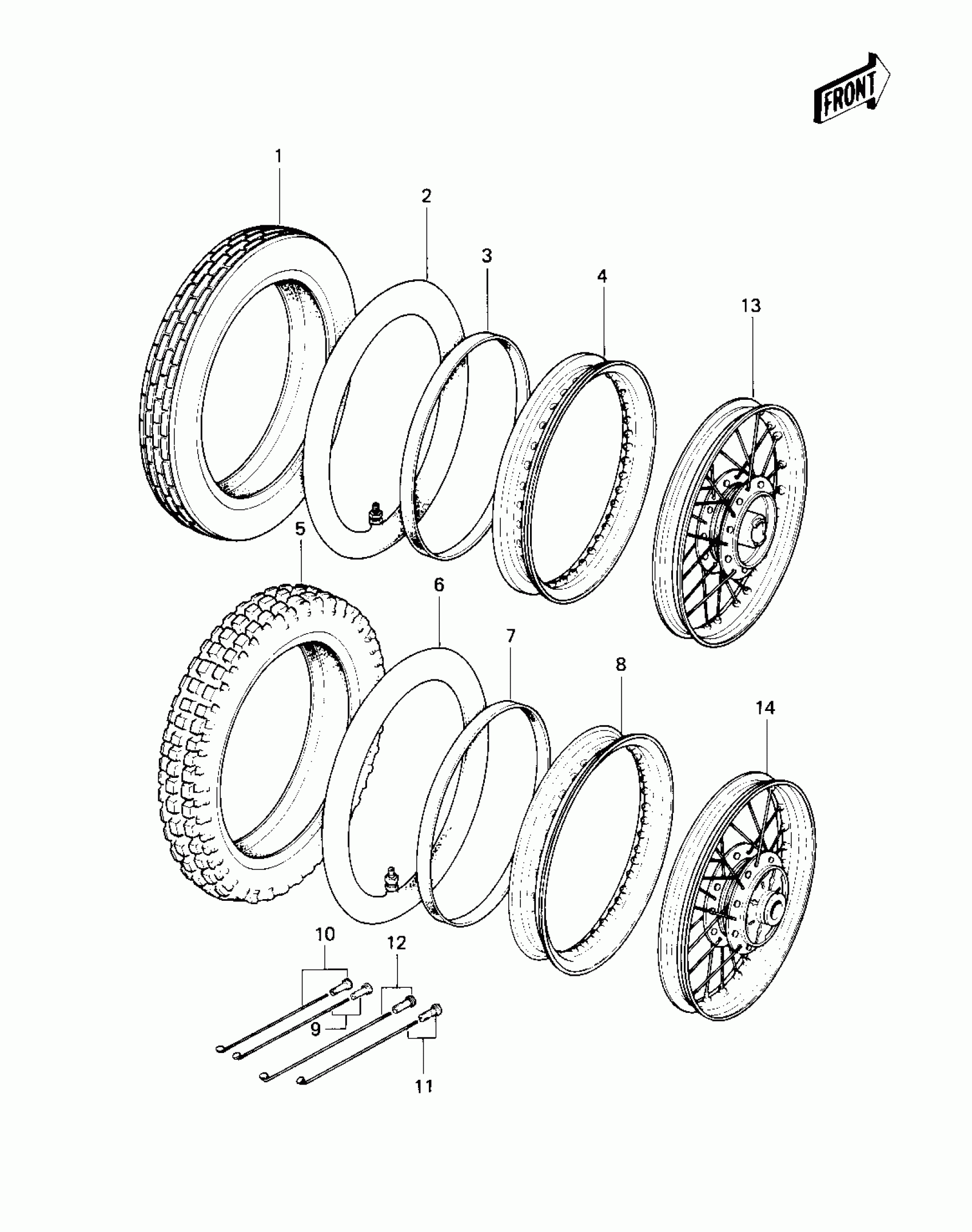

1981 Kawasaki KE100 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIRE 275-19 Y620 F

41019-026

1

$111.45

In stock

2

1

$50.73

In stock

3

BAND RIM

41023-015

1

$13.19

In stock

4

RIM,FR,1.40X19

41025-062

1

$128.81

In stock

5

TIRE 300-18 Y620 R

41019-027

1

$113.61

In stock

6

1

$42.24

In stock

7

BAND RIM

41023-001

1
Out of stock

8

RIM 1.60AX18W

41025-011

1

$126.23

In stock

9

SPOKE-INNER,FR,185.5MMX99D

41027-055

1
Out of stock

10

1

$9.53

In stock

11

SPOKE-ASY,RR INNER

41027-056

1
Out of stock

12

SPOKE-ASY,RR OUTER

41028-056

1
Out of stock

13

WHEEL ASSY-FRONT

41074-027

1

$263.09

In stock

14

WHEEL ASSY-REAR

42048-005

1
Out of stock
