1981 Kawasaki KE100 Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1981 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

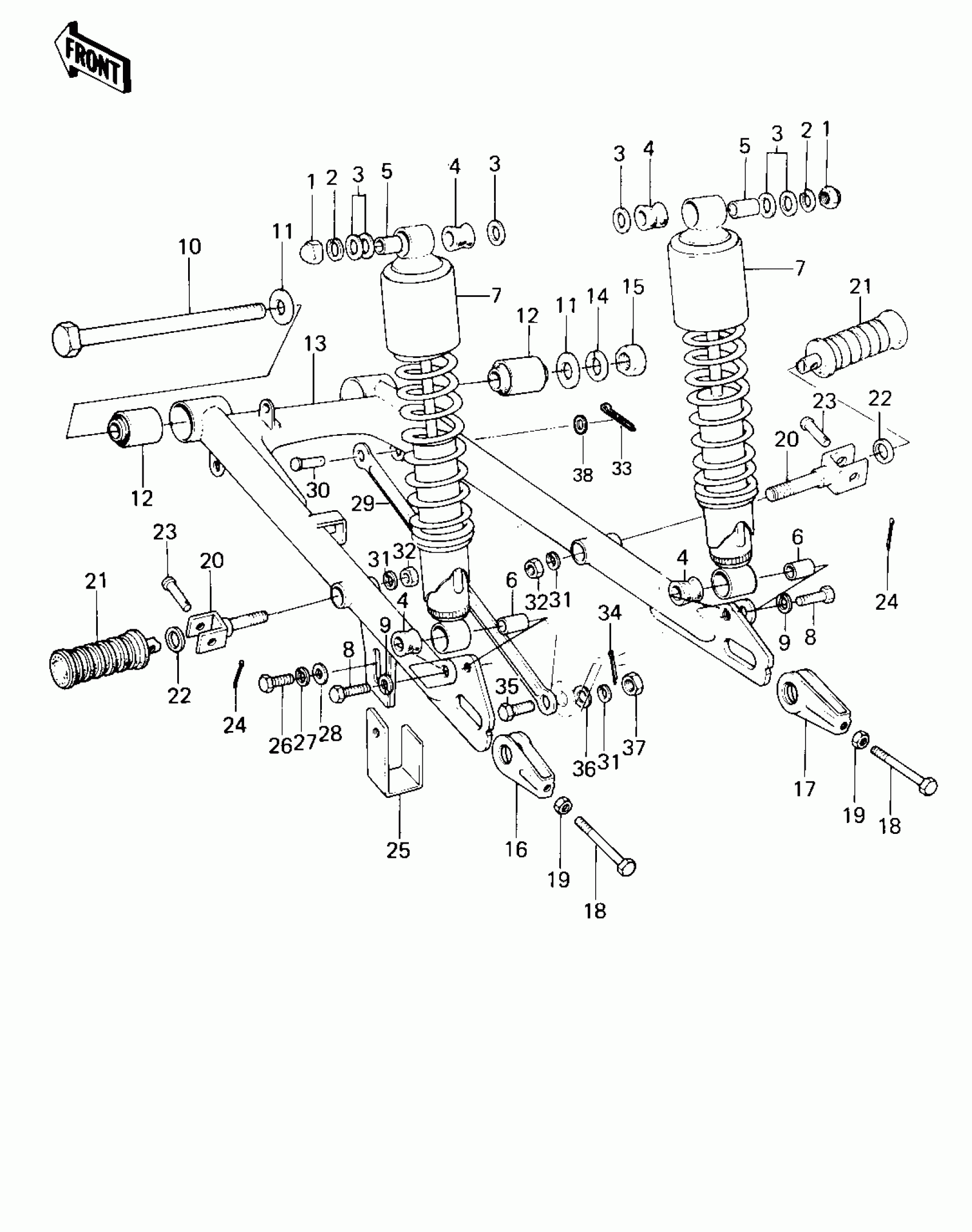

1981 Kawasaki KE100 Swing Arm/shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT,CAP,12MM

92020-014

1
Out of stock

2

WASHER-SPRING,12MM

461F1200

1
Out of stock

3

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

4

DAMPER,SHOCKABSORBER

92075-1020

1
Out of stock

5

COLLAR,SHOCKABSORBER

92027-1063

1
Out of stock

6

COLLAR,SHOCKABSORBER

45016-003

1
Out of stock

4~7

SHOCK ABSBR RR

45014-074

1
Out of stock

4~7

SHOCK ABSBR RR

45014-1122

1
Out of stock

4~7

SHOCK ABSBR RR

45014-1063

1
Out of stock

4~7

SHOCK ABSBR RR

45014-1124

1
Out of stock

8

BOLT HEX HEAD 10X35

113N1035

1
Out of stock

9

WASHER SPRING 10MM

461F1000

1
Out of stock

10

SHAFT-SWING ARM

33032-034

1
Out of stock

11

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

12

BUSHING-RUBBER

92092-005

1
Out of stock

13

ARM-SWINGING

33001-047

1
Out of stock

14

WASHER-SPRING,12MM

461F1200

1
Out of stock

15

NUT-HEX-FINE

314B1200

1
Out of stock

16

ADJUSTER-CHAIN,LH

33040-045

1
Out of stock

17

ADJUSTER-CHAIN,RH

33040-046

1
Out of stock

18

BOLT,8X50

92001-1399

1
Out of stock

18

BOLT,8X50

92001-1399

1
Out of stock

19

NUT-HEX-SMALL,8MM

318B0800

1
Out of stock

20

BAR,FOOTREST

34029-010

1
Out of stock

21

RUBBER,FOOTREST

92076-027

1
Out of stock

22

WASHER-PLAIN (OPT)

92022-199

1
Out of stock

23

PIN,6X28

92043-1464

1
Out of stock

24

PIN-COTTER,2.0X12

550D2012

1
Out of stock

25

GUARD-CHAIN

55020-007

1
Out of stock

26

BOLT, HEX HEAD, 8X16

114B0816

1
Out of stock

27

WASHER SPRING 8MM

461F0800

1
Out of stock

28

WASHER PLAIN 8MM

411B0800

1
Out of stock

29

ROD-TORQUE,RR

43007-028

1
Out of stock

30

PIN,SPRING,10X12

43009-001

1
Out of stock

31

WASHER SPRING 10MM

461F1000

1
Out of stock

32

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

33

PIN COTTER 2.5X16

550D2516

1
Out of stock

34

PIN COTTER 2.0X15

550D2015

1
Out of stock

35

BOLT,10X32

92003-003

1
Out of stock

36

WASHER PLAIN 10MM

410B1000

1
Out of stock

37

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

38

WASHER PLAIN 10MM

410B1000

1
Out of stock
