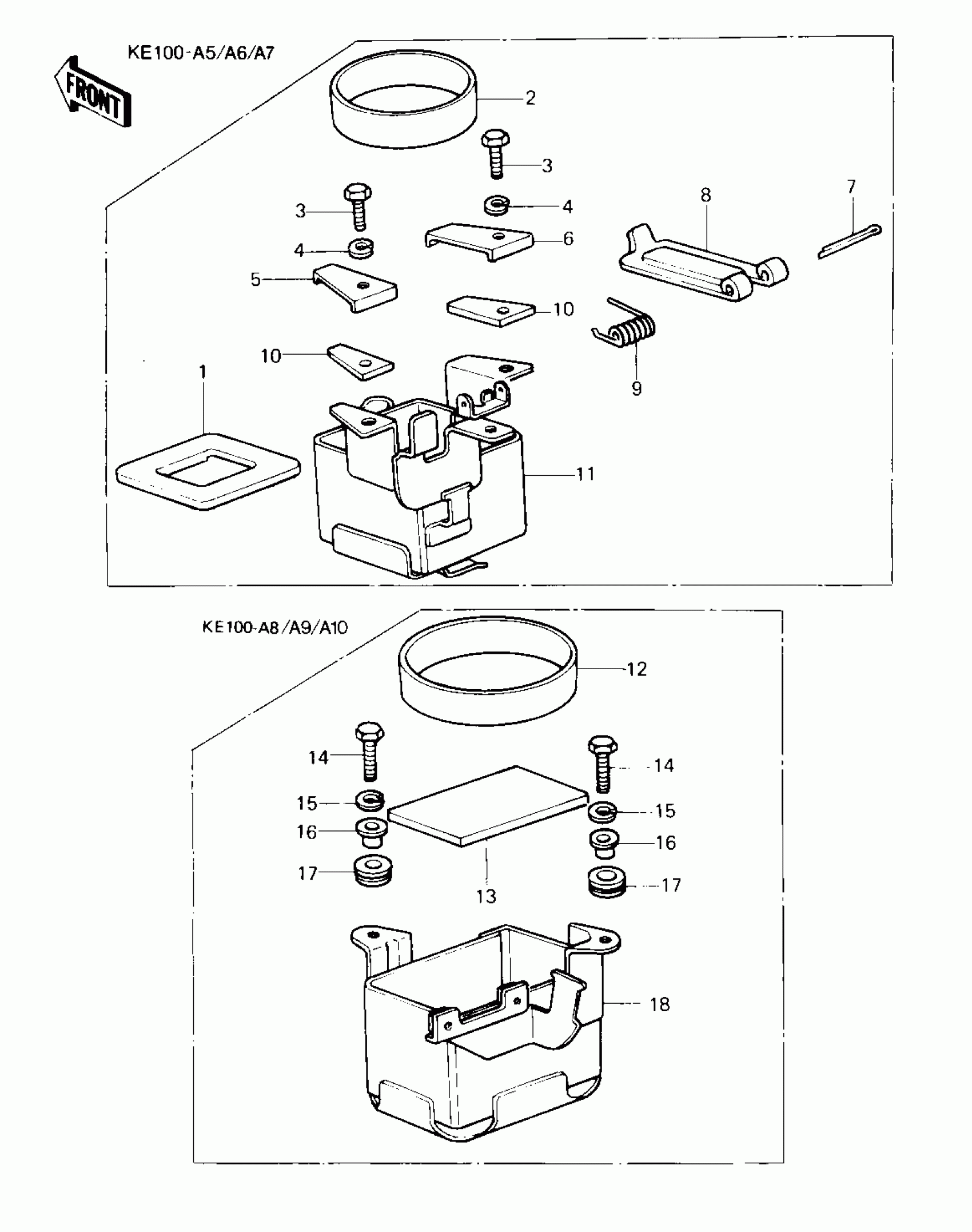

Kawasaki KE100 BATTERY CASE Diagram

#

Description

Price

1

MAT-BATTERY

32103-024

Unavailable

2

MAT-BATTERY

32103-018

Unavailable

3

BOLT-UPSET

112G0618

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

PLATE-BATTERY CASE,LH

32101-003

Unavailable

6

PLATE-BATTERY CASE,RH

32101-004

Unavailable

7

PIN,COTTER,2.5X40

550D2540

Unavailable

8

BAND-BATTERY

92072-037

Unavailable

9

SPRING-RETURN

92083-017

Unavailable

10

DAMPER RUBBER

92075-108

Unavailable

11

CASE,BATTERY

32097-034

$28.98

12

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

13

DAMPER,BATTERY

32103-027

$11.41

14

BOLT-UPSET,6X20

112G0620

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

COLLAR

92027-153

$4.93

17

DAMPER RUBBER

92075-051

$2.34

18

CASE-BATTERY

32097-1009

Unavailable
