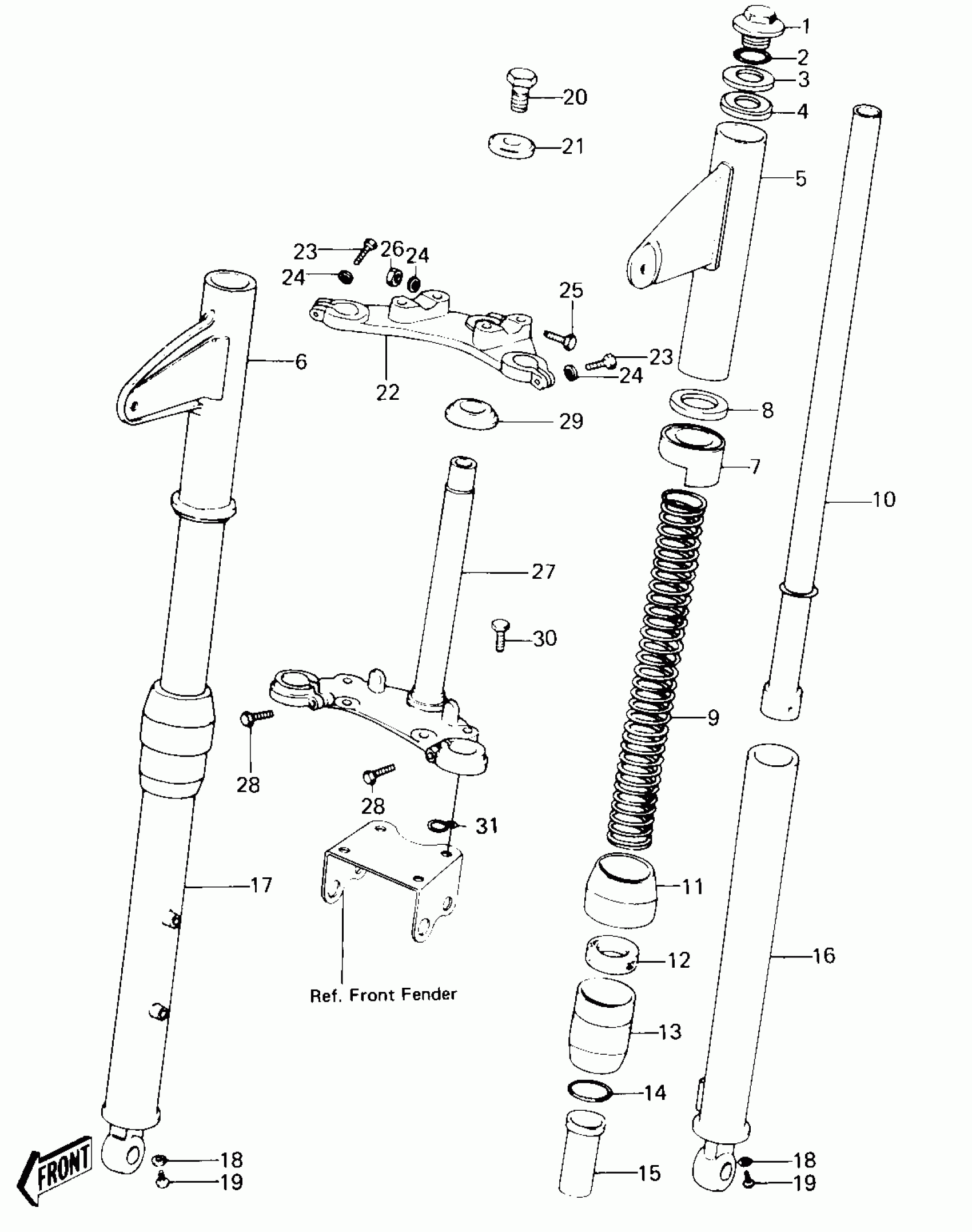

Kawasaki KE100 FRONT FORK (KE100-A5/A6/A7/A8) Diagram

#

Description
Price

1~28

FORK-FRONT,F.BLACK

44001-179-21

$855.15

1

BOLT-FORK TOP

44041-036

$15.83

2

'O' RING INNER TUBE

44046-014

Unavailable

2

'O' RING INNER TUBE

44046-014

Unavailable

3

GASKET-FORK COVER

44045-037

Unavailable

4

WASHER-FORK COVER

44043-046

$10.41

5

COVER,L.H FORK,F.BLK

44033-078-21

$43.47

6

COVER,R.H FORK,F.BLK

44034-078-21

$36.34

7

GUIDE-FORK COVER

44030-010

Unavailable

8

GASKET FORK COVER

44045-012

Unavailable

9

SPRING-FORK

44026-040

$40.80

10

TUBE-FORK INNER

44013-034

Unavailable

11

DUST SHIELD FORK

44010-006

Unavailable

12

OIL SEAL

92049-1049

$19.65

12

OIL SEAL

92049-1049

$19.65

13

NUT FORK OUTER TUBE

44007-007

$59.80

14

'O' RING OUTER TUBE

44046-012

Unavailable

15

GUIDE-FORK INNER TUBE

44015-013

$27.15

16

TUBE,LH,FORK OUTER

44005-043

$111.17

17

TUBE,RH,FORK OUTER

44006-041

$136.22

18

GASKET,FORK DRAIN PLUG

44045-002

$4.12

19

SCREW PAN HEAD 4X6

220B0406

$1.46

20

BOLT STRNG STEM HEAD

44041-007

Unavailable

21

WASHER STRNG STEM HD

44043-016

$10.56

22

HOLDER-FORK UPPER

44039-047

Unavailable

23

BOLT-STEERING STEM

44041-043

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

BOLT-STEERING STEM HD

44041-042

Unavailable

26

NUT,LOCK,8MM

92017-013

$8.22

27

STEM-STEERING

44037-052

$304.92

28

BOLT, PINCH, 10MM

44041-010

Unavailable

29

RACE,LOWER BEARING

92047-004

Unavailable

30

BOLT,6X10

112G0610

Unavailable

31

CLAMP,CABLE

92037-046

$4.41
