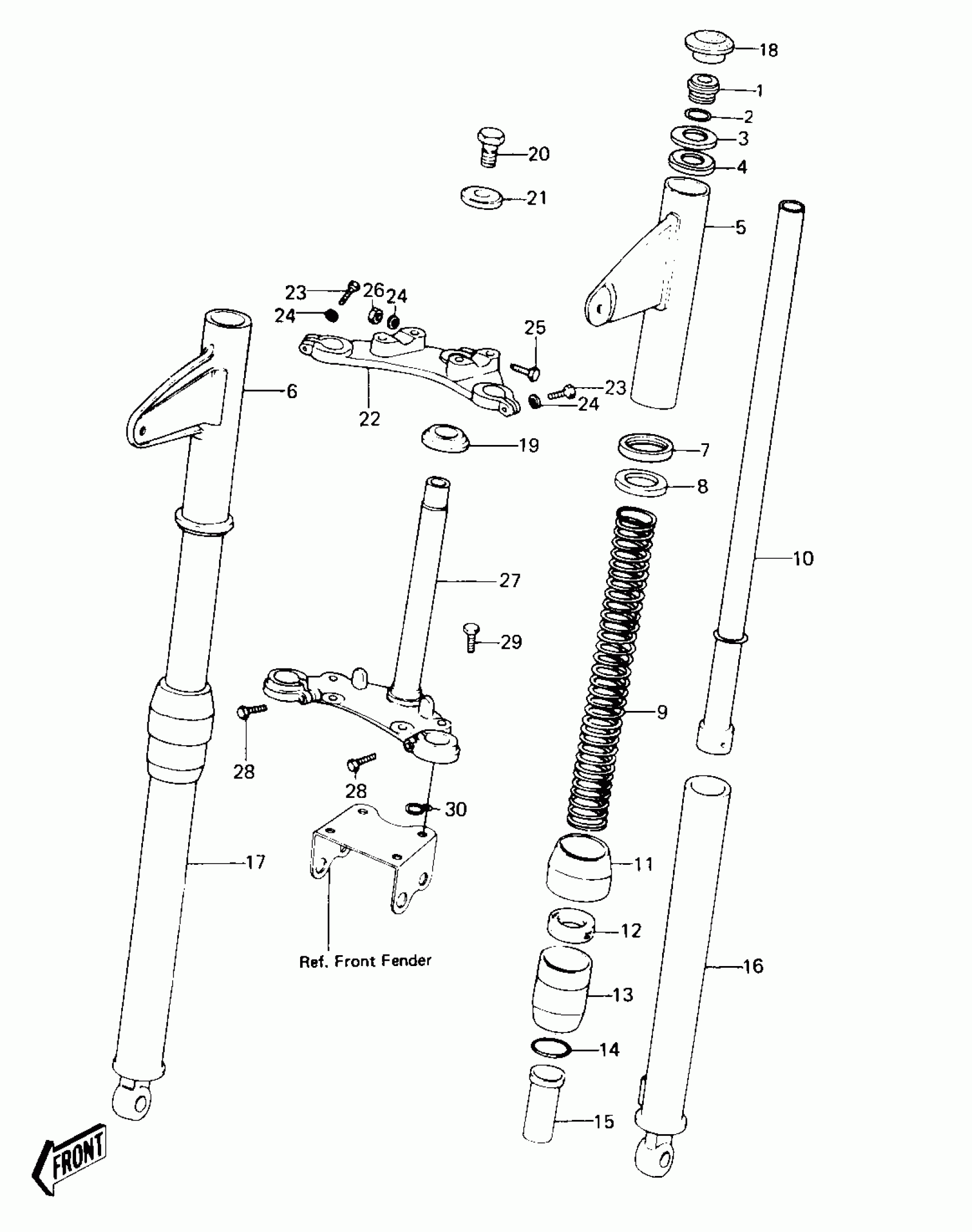

Kawasaki KE100 FRONT FORK (KE100-A9/A10) Diagram

#

Description
Price

1~28

FORK-FRONT

44001-1159

$506.57

1

CAP,SPRING

11012-1126

Unavailable

2

RING-O

92055-1087

Unavailable

3

GASKET-FORK COVER

44045-037

Unavailable

4

WASHER-FORK COVER

44043-046

$10.41

5

COVER,L.H FORK,F.BLK

44033-078-21

$43.47

6

COVER,R.H FORK,F.BLK

44034-078-21

$36.34

7

CAP,FORK COVER,LOWER

92022-1197

$4.86

8

GASKET FORK COVER

44045-012

Unavailable

9

SPRING,FORK

44026-1057

Unavailable

10

TUBE,FORK INNER

39093-1026

$134.12

11

DUST SHIELD FORK

44010-006

Unavailable

12

OIL SEAL

92049-1049

$19.65

13

NUT FORK OUTER TUBE

44007-007

$59.80

14

'O' RING OUTER TUBE

44046-012

Unavailable

15

GUIDE-FORK INNER TUBE

44015-013

$27.15

16

TUBE,L.H.FORK OUTER

39093-1025

$122.41

17

TUBE,R.H.FORK OUTER

39093-1024

$122.41

18

CAP,FORK

11012-1127

Unavailable

19

RACE,LOWER BEARING

92047-004

Unavailable

20

BOLT STRNG STEM HEAD

44041-007

Unavailable

21

WASHER STRNG STEM HD

44043-016

$10.56

22

HOLDER-FORK UPPER

44039-047

Unavailable

23

BOLT

114G0836

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

BOLT HEX HEAD 8X50

114G0850

Unavailable

26

NUT-HEX-SMALL,8MM

317B0800

Unavailable

27

STEM-STEERING

44037-052

$304.92

28

BOLT, PINCH, 10MM

44041-010

Unavailable

29

BOLT,6X10

112G0610

Unavailable

30

CLAMP,CABLE

92037-046

$4.41
