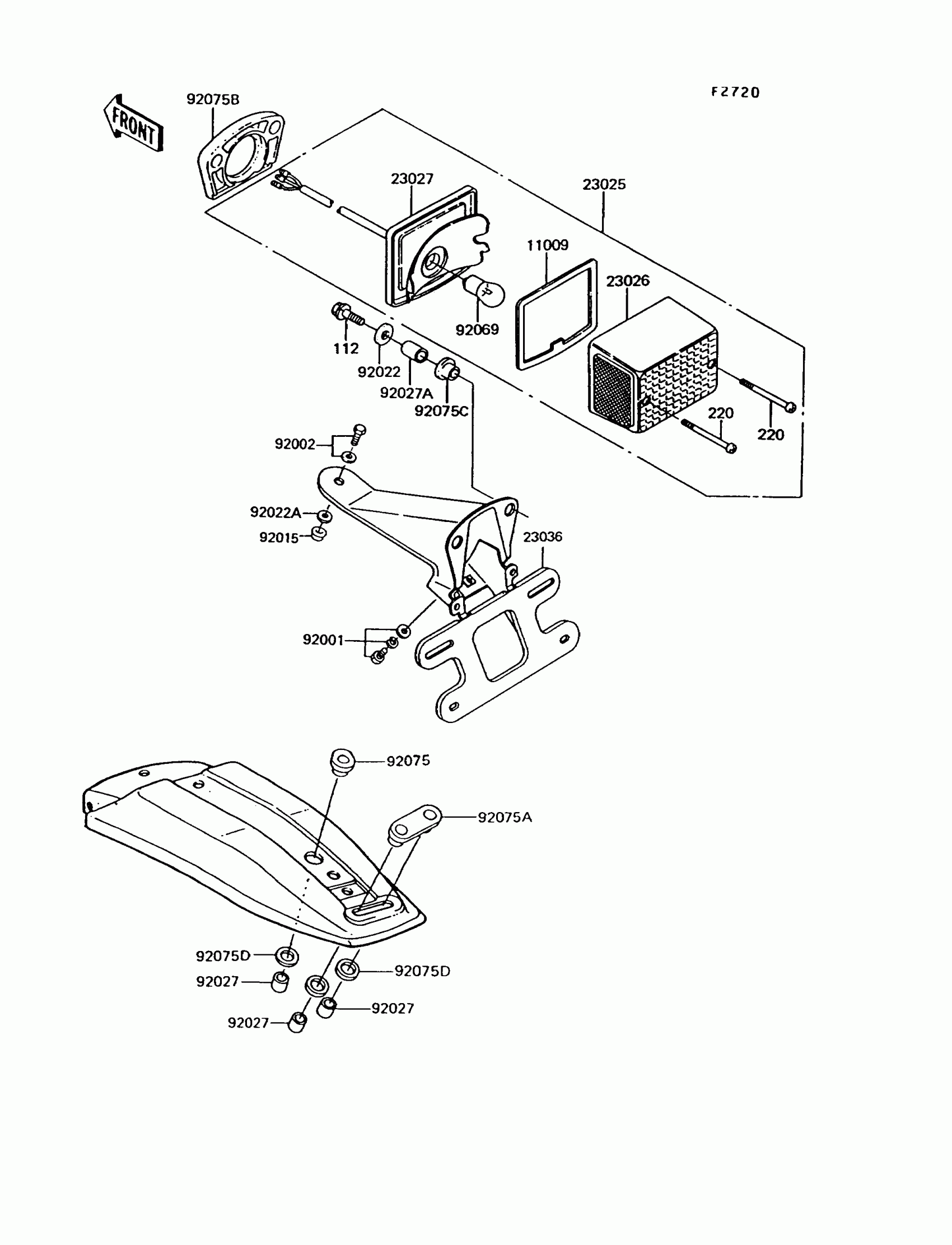

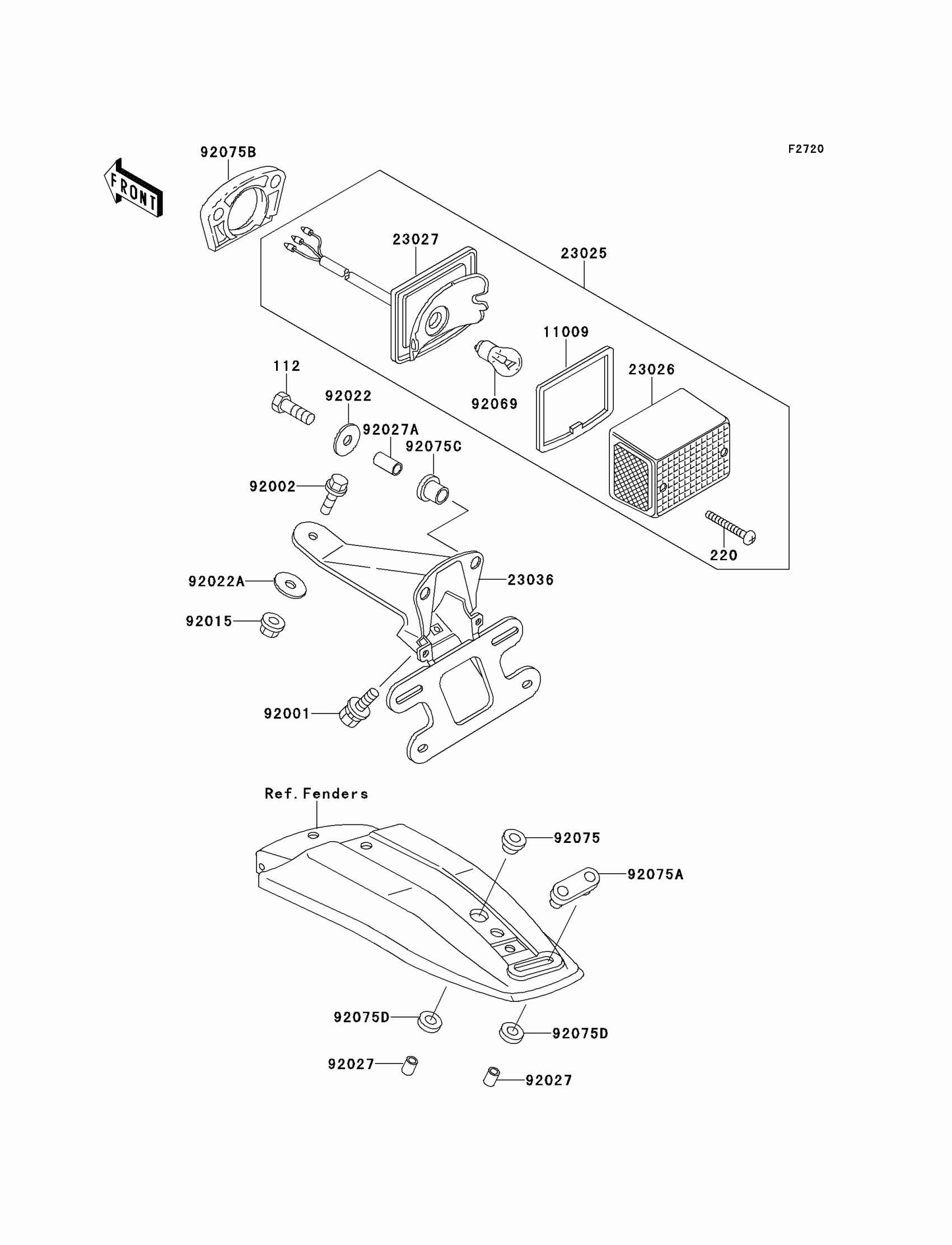

Kawasaki KE100 Taillight(s) Diagram

#

Description
Price

112

BOLT-UPSET,6X25

112B0625

Unavailable

220

SCREW-PAN-CROS

220B0440

Unavailable

11009

GASKET,TAIL LAMP LENS

11009-1078

$7.44

23025

LAMP-TAIL

23025-1032

Unavailable

23026

LENS,TAIL LAMP

23026-1003

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1020

$96.26

23036

BRACKET-TAIL LAMP

23036-1010

Unavailable

92001

BOLT

92001-1768

Unavailable

92002

BOLT,6X28

92002-1125

$4.61

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92022A

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92027A

COLLAR,6.1X8X15.7

92027-1819

$3.85

92069

BULB,6V 32/3CP

92069-074

Unavailable

92075

DAMPER,TAIL LAMP

92075-1004

$3.63

92075A

DAMPER,TAIL LAMP

92075-1005

Unavailable

92075B

DAMPER,TAIL LAMP

92075-1094

Unavailable

92075C

DAMPER

92075-1095

$3.63

92075D

DAMPER,RUBBER

92075-310

Unavailable
