1996 Kawasaki KE100 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

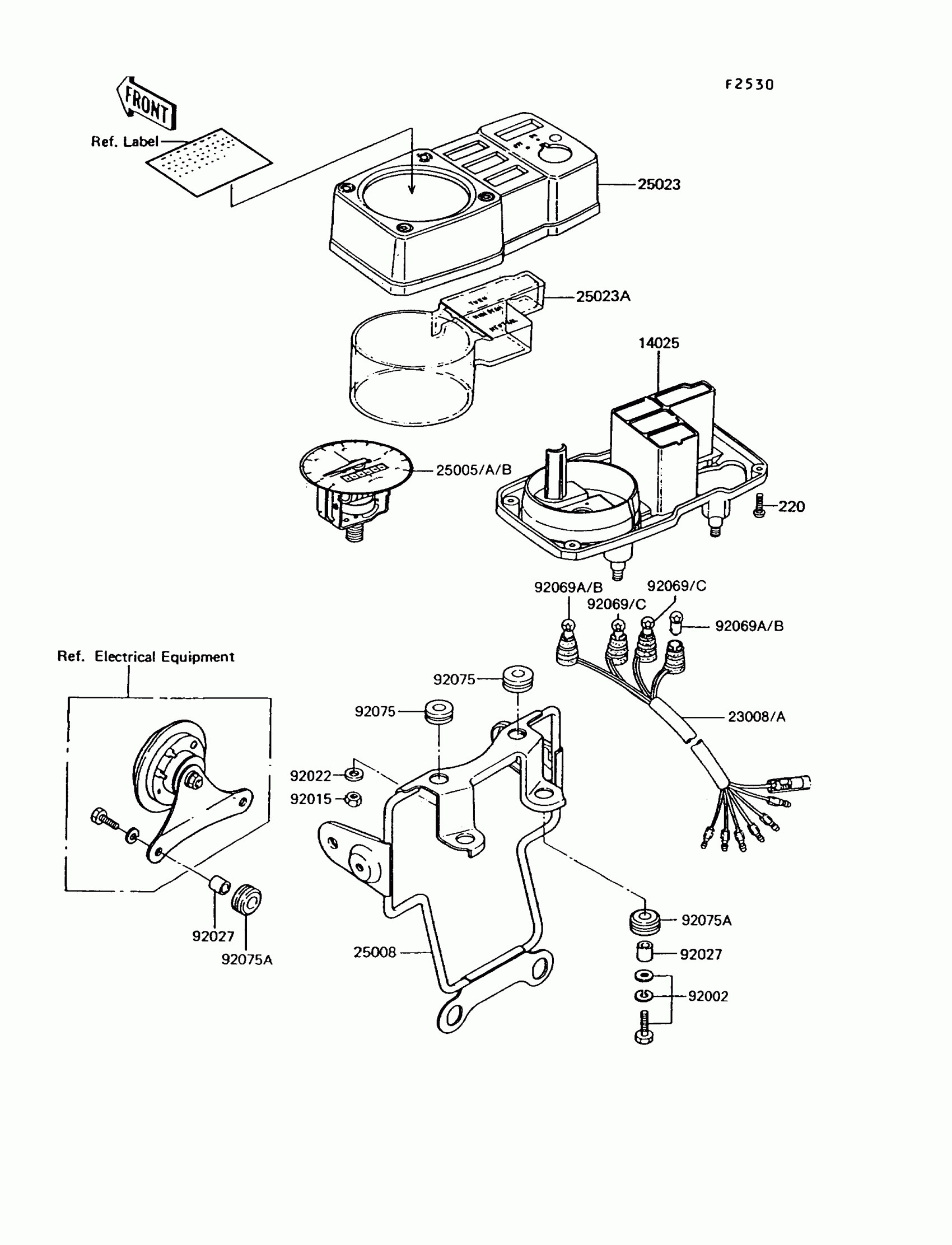

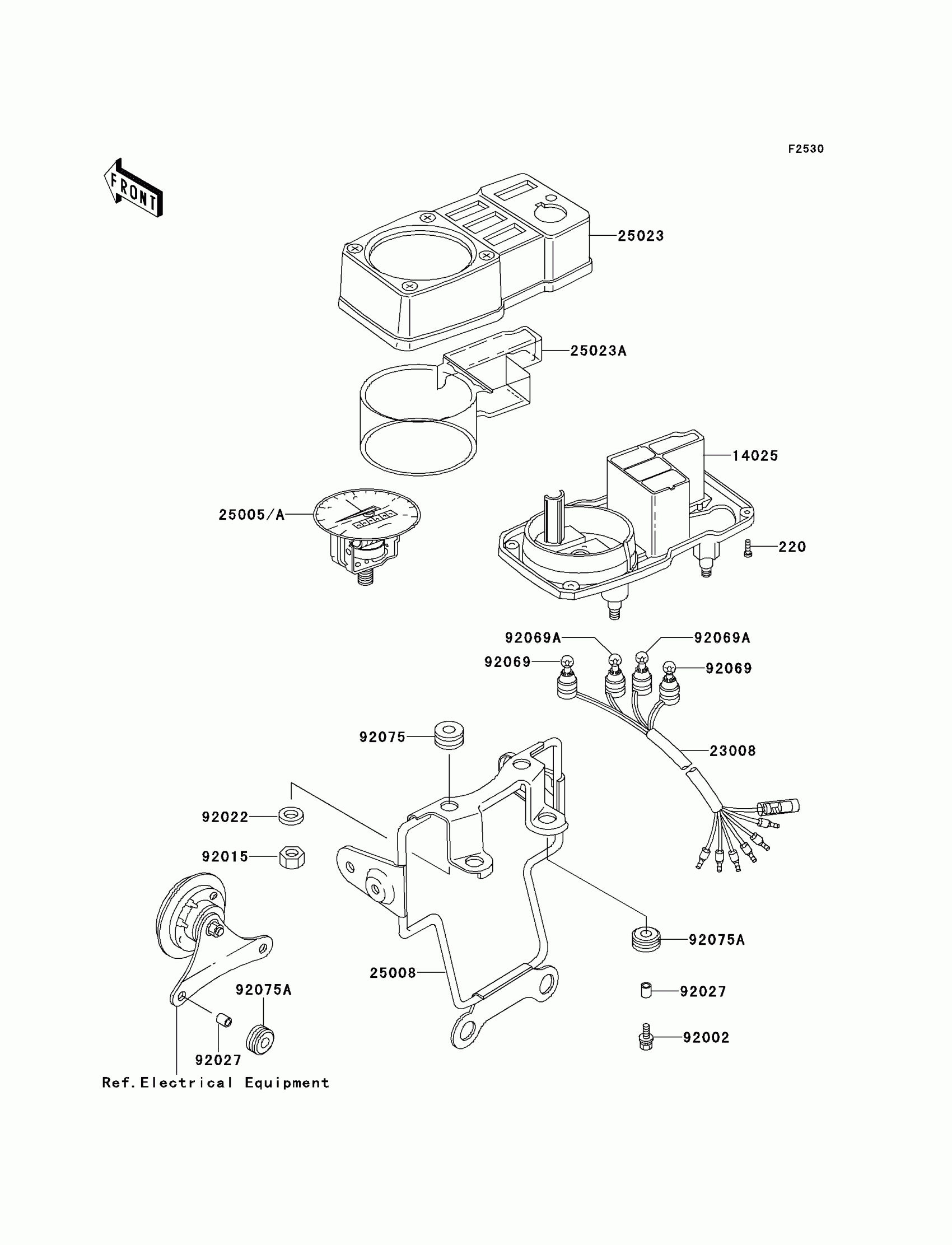

1996 Kawasaki KE100 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

14025

COVER,METER,LWR

14025-1870

1

$90.72

In stock

23008A

SOCKET-ASSY,METER

23008-1523

1
Out of stock

25005A

SPEEDOMETER,MPH

25005-1135

1
Out of stock

25005B

SPEEDOMETER,KPH

25005-1136

1
Out of stock

25008

BRACKET-METER

25008-1042

1
Out of stock

25023

1

$62.12

In stock

25023A

1

$60.87

In stock

92002

BOLT,6X25

92002-1137

1

$3.49

In stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069B

BULB,6V 3W

92069-1053

1
Out of stock

92069C

BULB,6V 1.7W

92069-1054

1
Out of stock

92075

DAMPER RUBBER

92075-076

1

$3.97

In stock

92075A

1

$3.72

In stock
