1991 Kawasaki KE100 Ignition Switch Diagram

← All diagrams

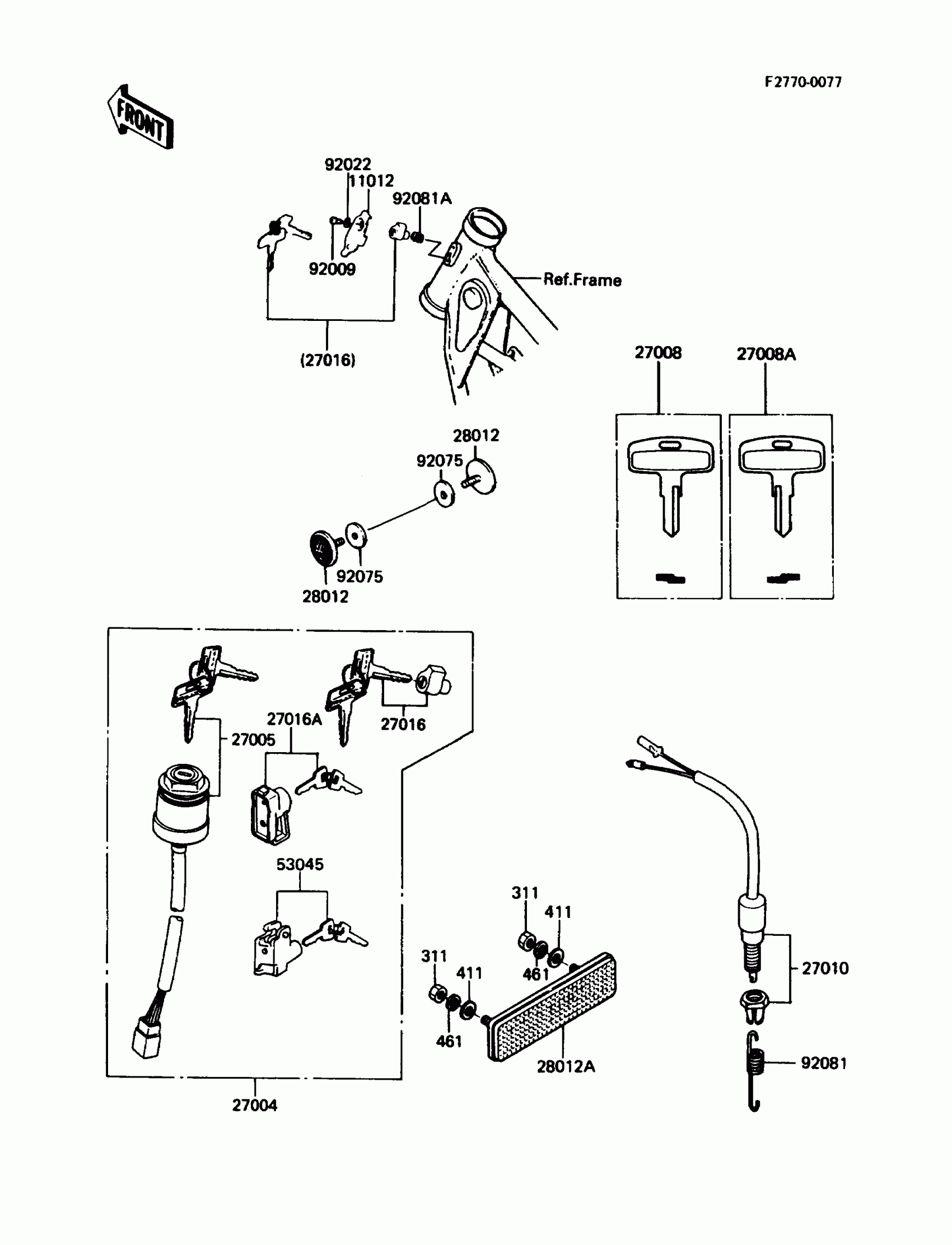

Find the part on the Ignition Switch diagram for your 1991 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KE100 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING LOCK

11012-1134

1

$5.95

In stock

27004

SWITCH-ASSY

27004-5276

1
Out of stock

27005

1

$74.90

In stock

27008

KEY-LOCK,BLANK

27008-1024

1

$20.31

In stock

27008A

KEY-LOCK,BLANK

27008-1025

1

$20.31

In stock

27010

SWITCH,BRAKE LAMP

27010-025

1

$27.60

In stock

27016

LOCK-ASSY,STEERING

27016-042

1

$46.56

In stock

27016A

LOCK-ASSY,HELMET

27016-5098

1
Out of stock

28012

1

$21.56

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

53045

HOOK-ASSY,SEAT

53045-014

1
Out of stock

92009

SCREW,3.51MM

92008-007

1
Out of stock

92022

WASHER,WAVE

92097-003

1

$3.57

In stock

92075

DAMPER,REFLECTOR

92094-011

1

$4.08

In stock

92081

1

$6.75

In stock

92081A

SPRING,STEERING LOCK

27032-001

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock

411

WASHER-PLAIN,5MM

411B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
