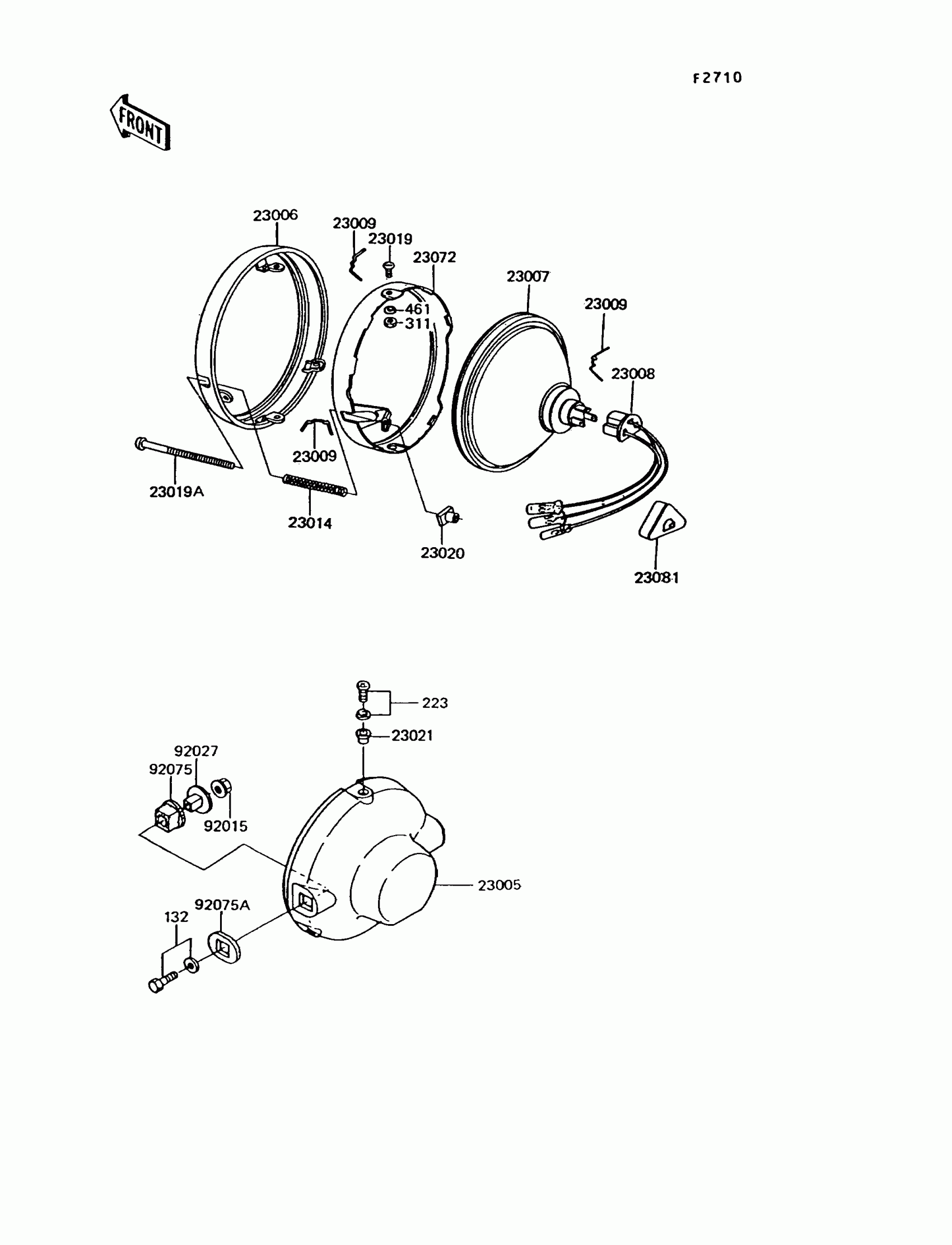

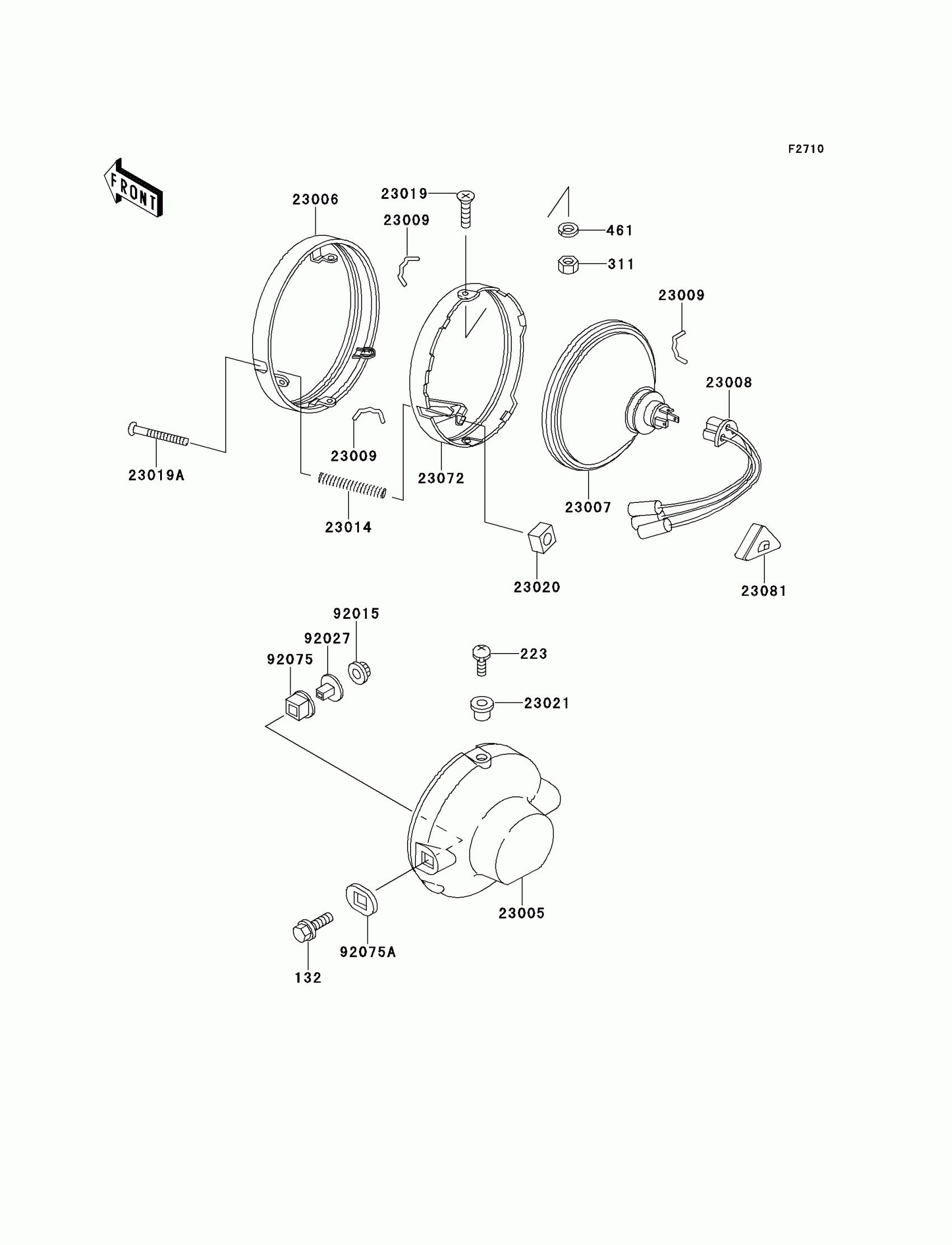

Find the part on the Headlight diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KE100 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$5.07

In stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock

311

NUT-HEX

311B0400

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

1
Out of stock

23006

RIM-LAMP

23006-1004

1

$74.16

In stock

23007

LENS-COMP,"4020" MARK

23007-055

1
Out of stock

23008

1

$20.90

In stock

23009

1

$4.78

In stock

23014

1

$5.14

In stock

23019

SCREW,LENS FITTING

23019-026

1

$4.02

In stock

23019A

1

$4.02

In stock

23020

NUT,ADJUSTING

23020-012

1

$3.53

In stock

23021

WASHER

23021-010

1

$3.43

In stock

23072

1

$39.81

In stock

23081

1

$7.92

In stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92027

COLLAR,L=15.6

92027-1105

1

$7.49

In stock

92075

DAMPER,HEAD LAMP

92075-1077

1

$7.14

In stock

92075A

DAMPER,HEAD LAMP

92075-1078

1

$4.92

In stock
