1996 Kawasaki KE100 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

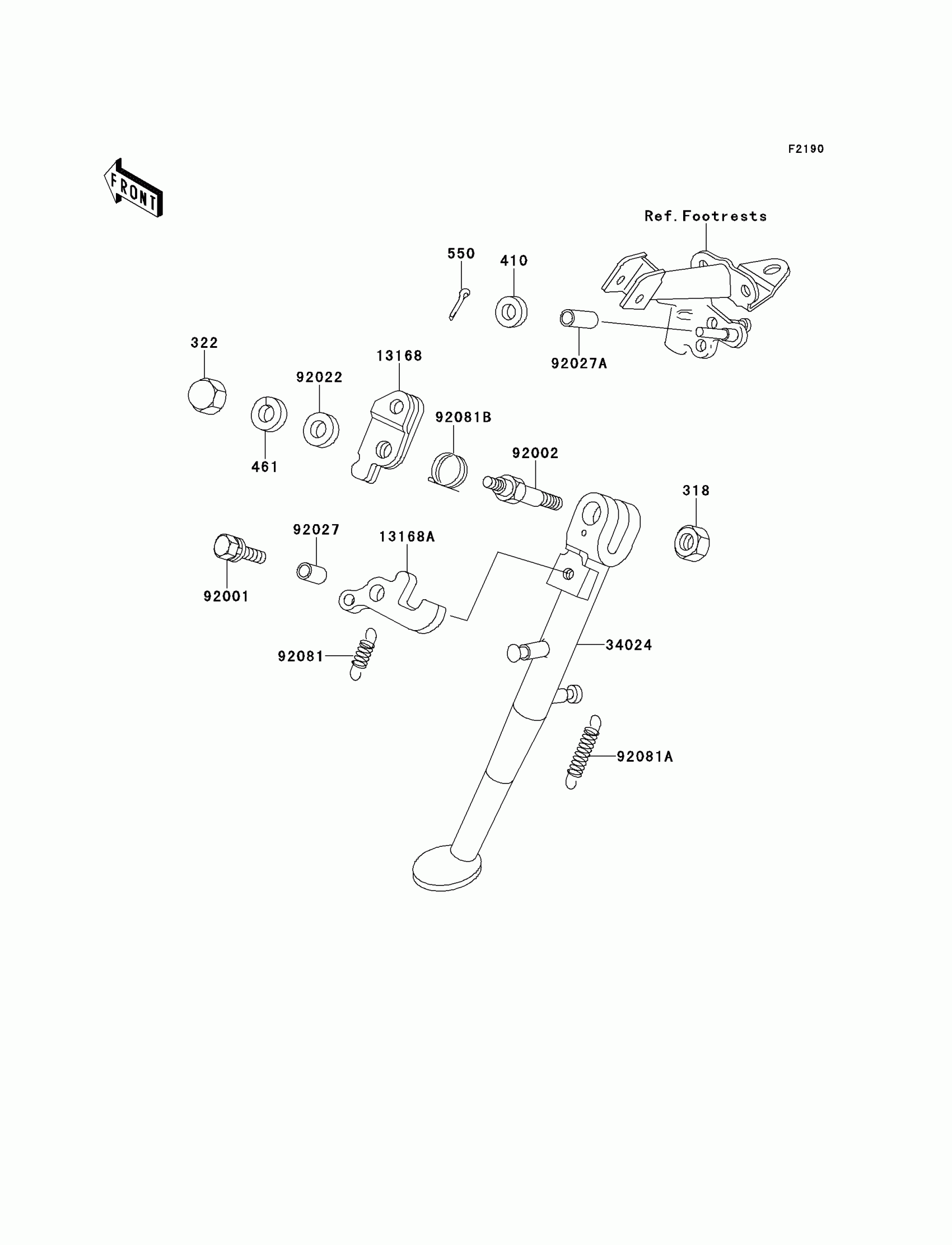

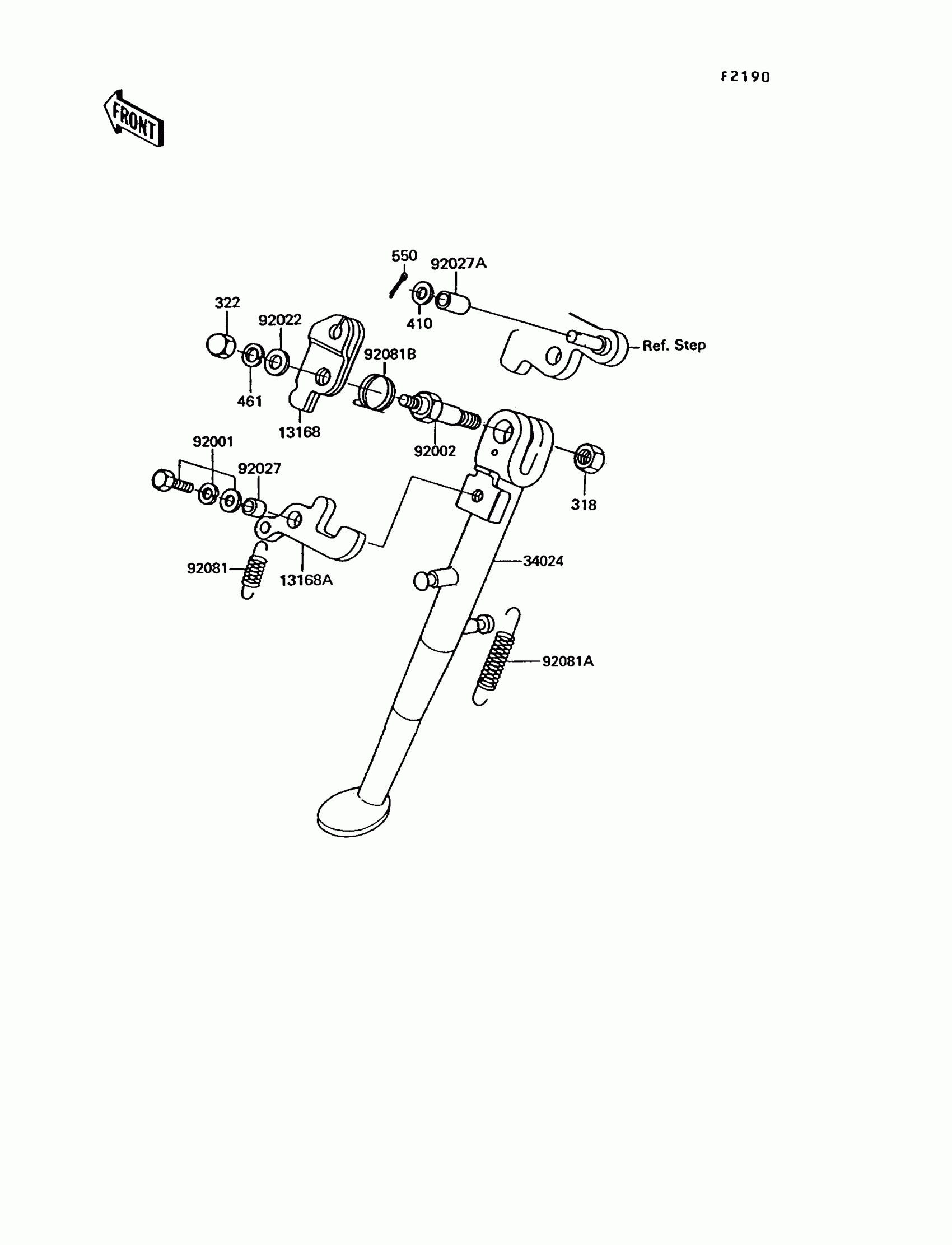

1996 Kawasaki KE100 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

318

NUT-HEX-SMALL

318C0800

1
Out of stock

322

NUT-CAP,6MM,BLACK

322C0600

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock

461

WASHER-SPRING,6MM,BLACK

461K0600

1
Out of stock

550

1

$2.08

In stock

13168

LEVER,SIDE STAND

13168-1035

1
Out of stock

13168A

LEVER,SIDE STAND

13168-1068

1
Out of stock

34024

STAND-SIDE

34024-1052

1
Out of stock

92001

BOLT,6X12,BLACK

92001-1956

1
Out of stock

92002

BOLT,SIDE STAND

92002-1220

1

$20.14

In stock

92022

WASHER,6.5X16X2

92022-1342

1

$3.12

In stock

92027

COLLAR,6.3X10X4.8

92027-1066

1

$3.97

In stock

92027A

COLLAR,6.3X10X12

92027-1143

1

$16.03

In stock

92081

SPRING,STOPPER RETURN

92081-1010

1
Out of stock

92081A

SPRING,STAND

92081-1052

1
Out of stock

92081B

SPRING,SIDE STAND

92081-1107

1

$11.20

In stock
