1986 Kawasaki KE100 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

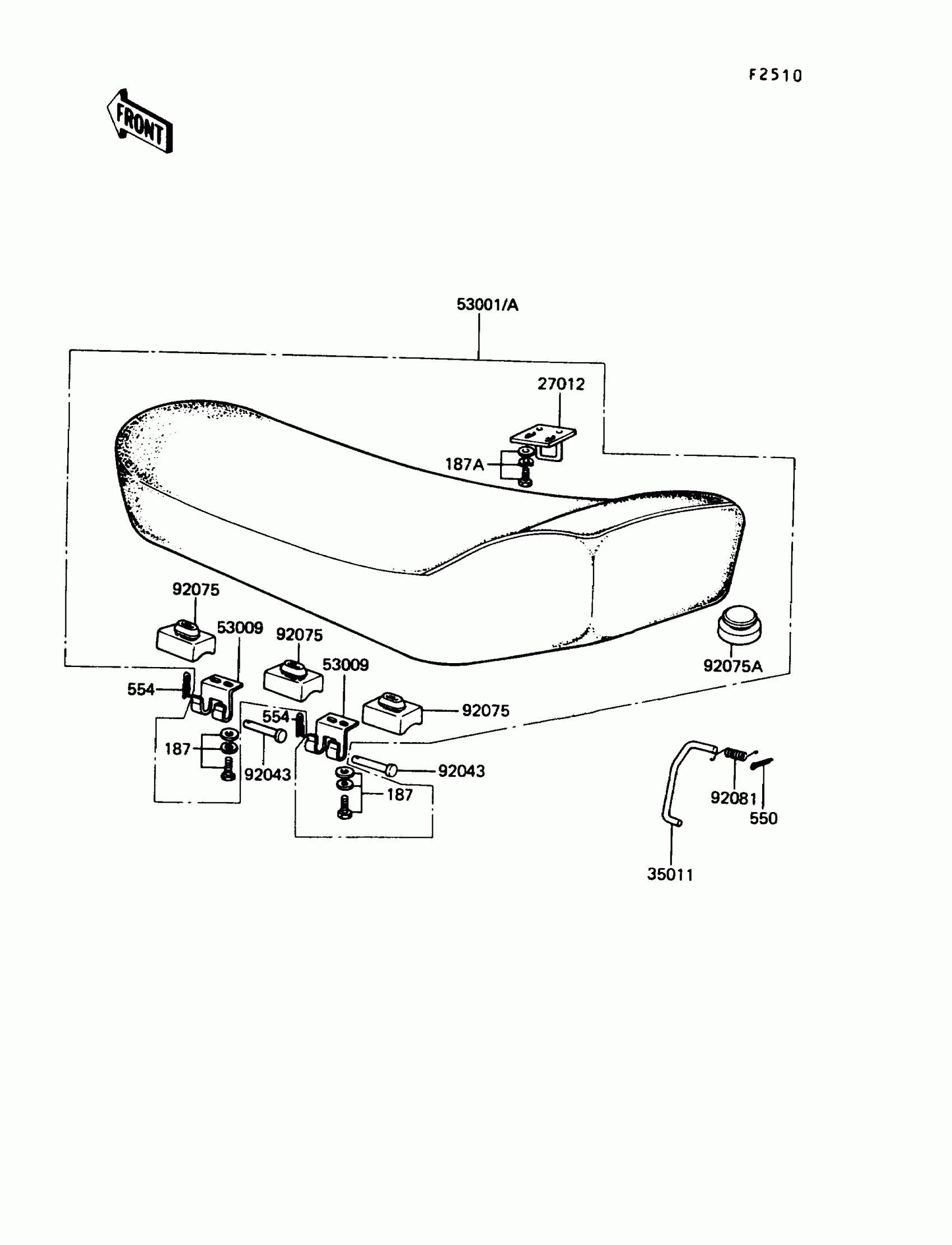

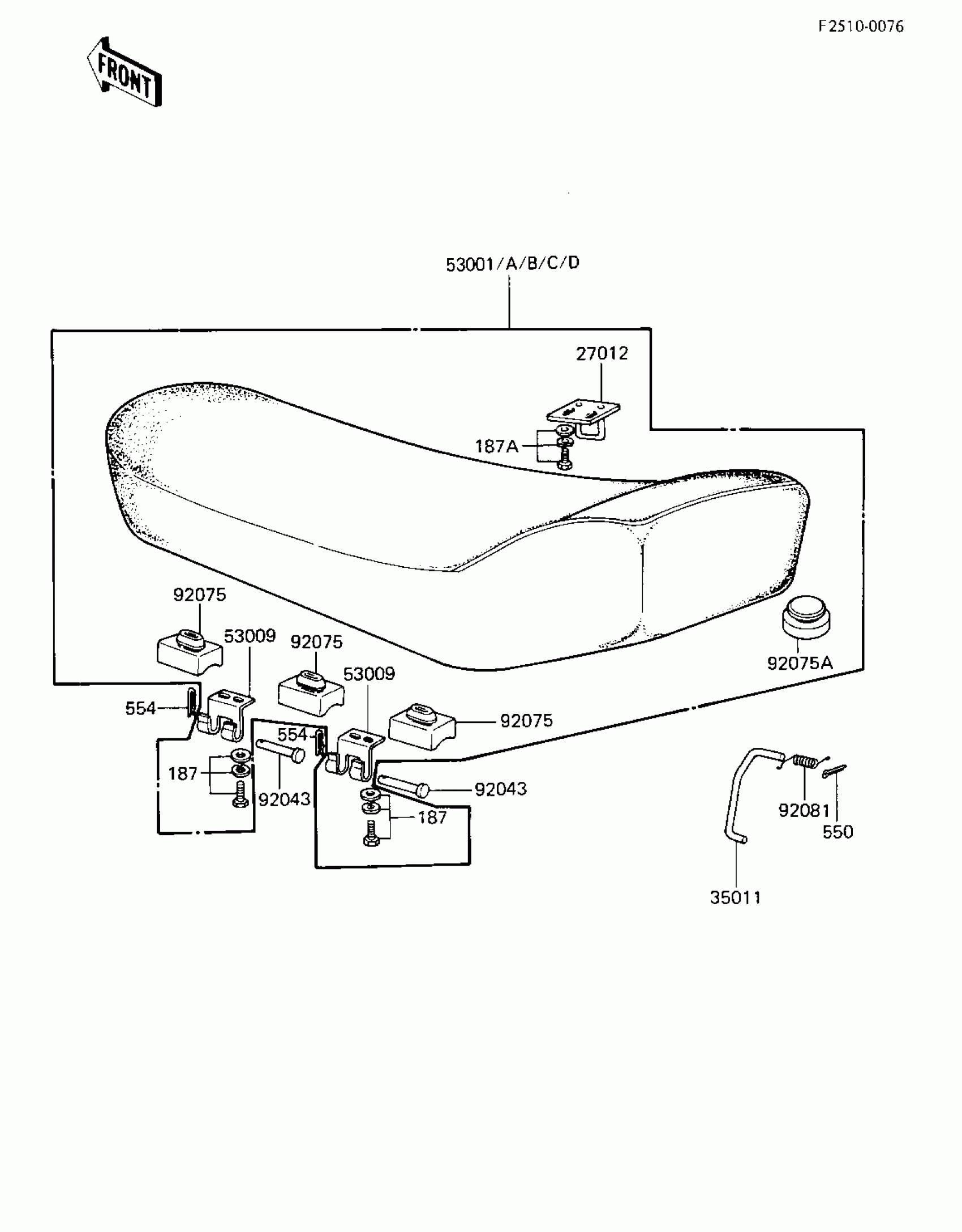

1986 Kawasaki KE100 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27012

HOOK,SEAT

53008-021

1

$10.88

In stock

35011

STAY,SEAT

53054-003

1

$9.92

In stock

53001D

SEAT-ASSY,DUAL

53001-1452

1
Out of stock

53009

HINGE,BLACK

53009-017-10

1
Out of stock

92043

PIN,6X48

53011-002

1

$4.72

In stock

92075

DAMPER,DUAL SEAT

92075-023

1

$3.90

In stock

92075A

DAMPER,SEAT

92075-216

1
Out of stock

92081

SPRING,SEAT HOOK

53055-001

1
Out of stock

187

BOLT 6X12

187B0612

1
Out of stock

187A

BOLT 6X14

187B0614

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock
