1986 Kawasaki KE100 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

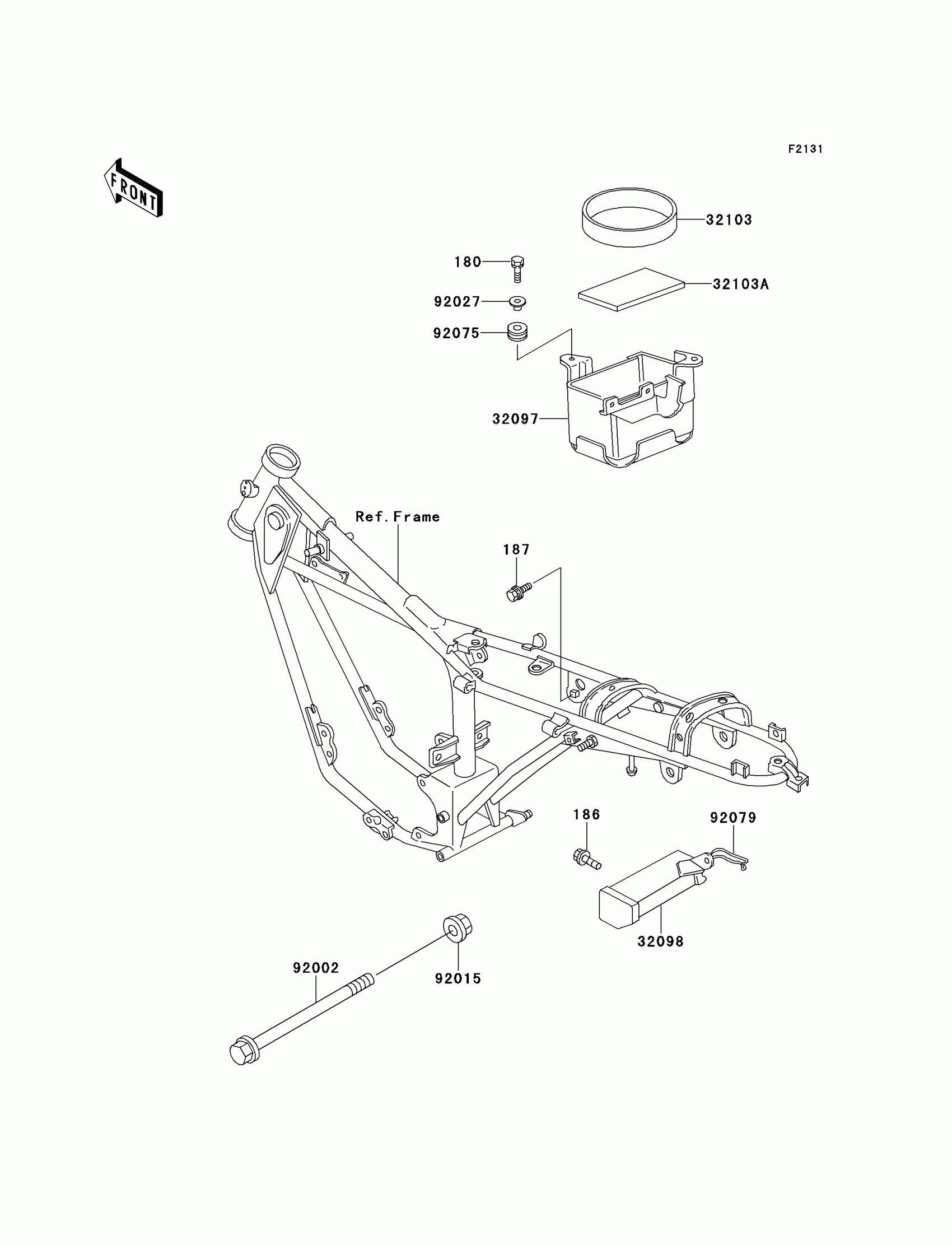

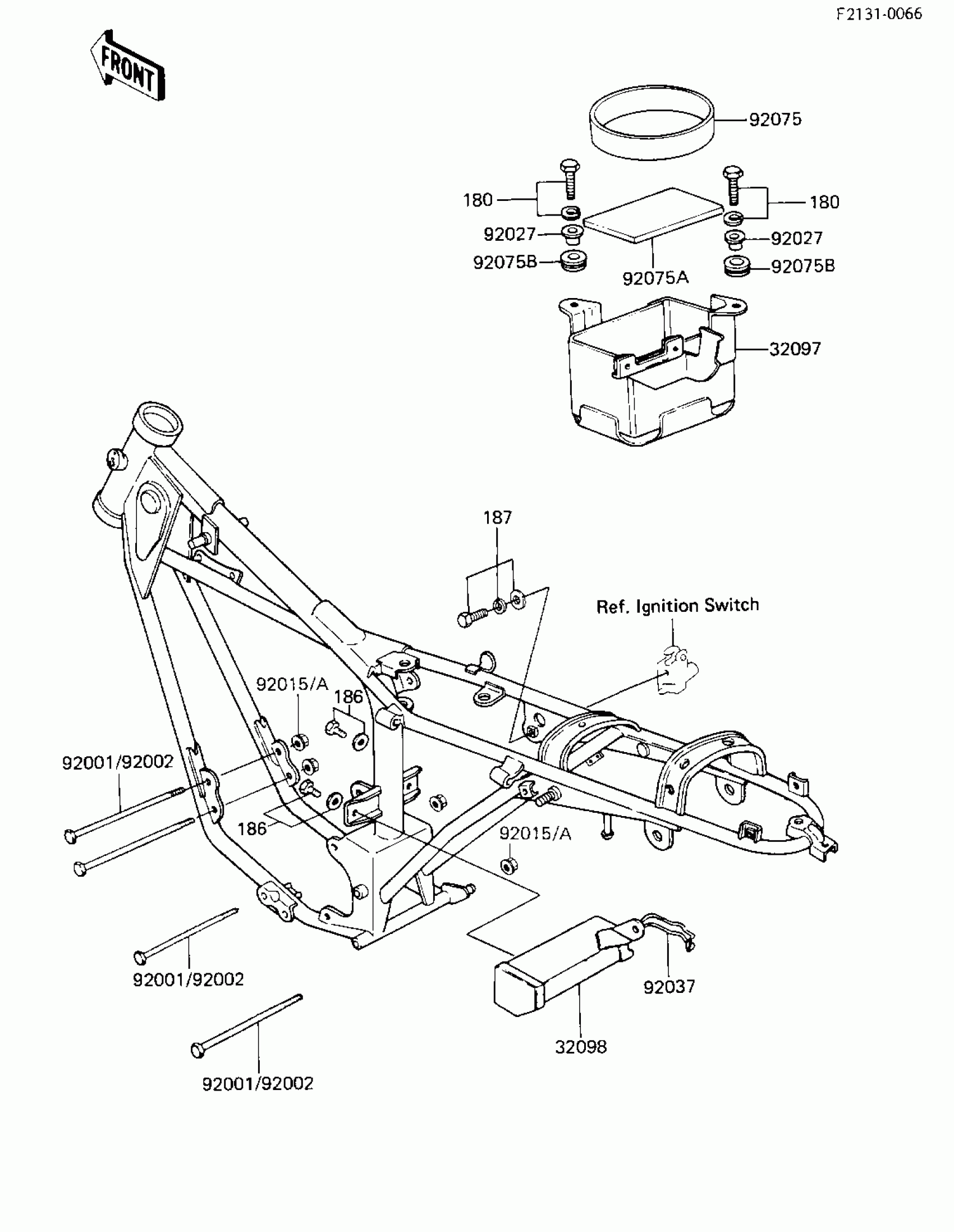

1986 Kawasaki KE100 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32097

CASE-BATTERY

32097-1009

1
Out of stock

32098

CASE-TOOL

32098-018

1

$88.88

In stock

92002

BOLT,10X115

92002-1072

1

$11.07

In stock

92015A

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92027

COLLAR

92027-153

1

$4.93

In stock

92037

DAMPER,BATTERY BOTTOM

32103-023

1
Out of stock

92075

DAMPER,BATTERY BOTTOM

32103-023

1
Out of stock

92075A

DAMPER,BATTERY

32103-027

1

$11.41

In stock

92075B

DAMPER RUBBER

92075-051

1

$2.34

In stock

180

BOLT-UPSET-WS

180B0620

1
Out of stock

186

BOLT

186B0614

1
Out of stock

187

BOLT 6X12

187B0612

1
Out of stock
