1986 Kawasaki KE100 Fenders Diagram

← All diagrams

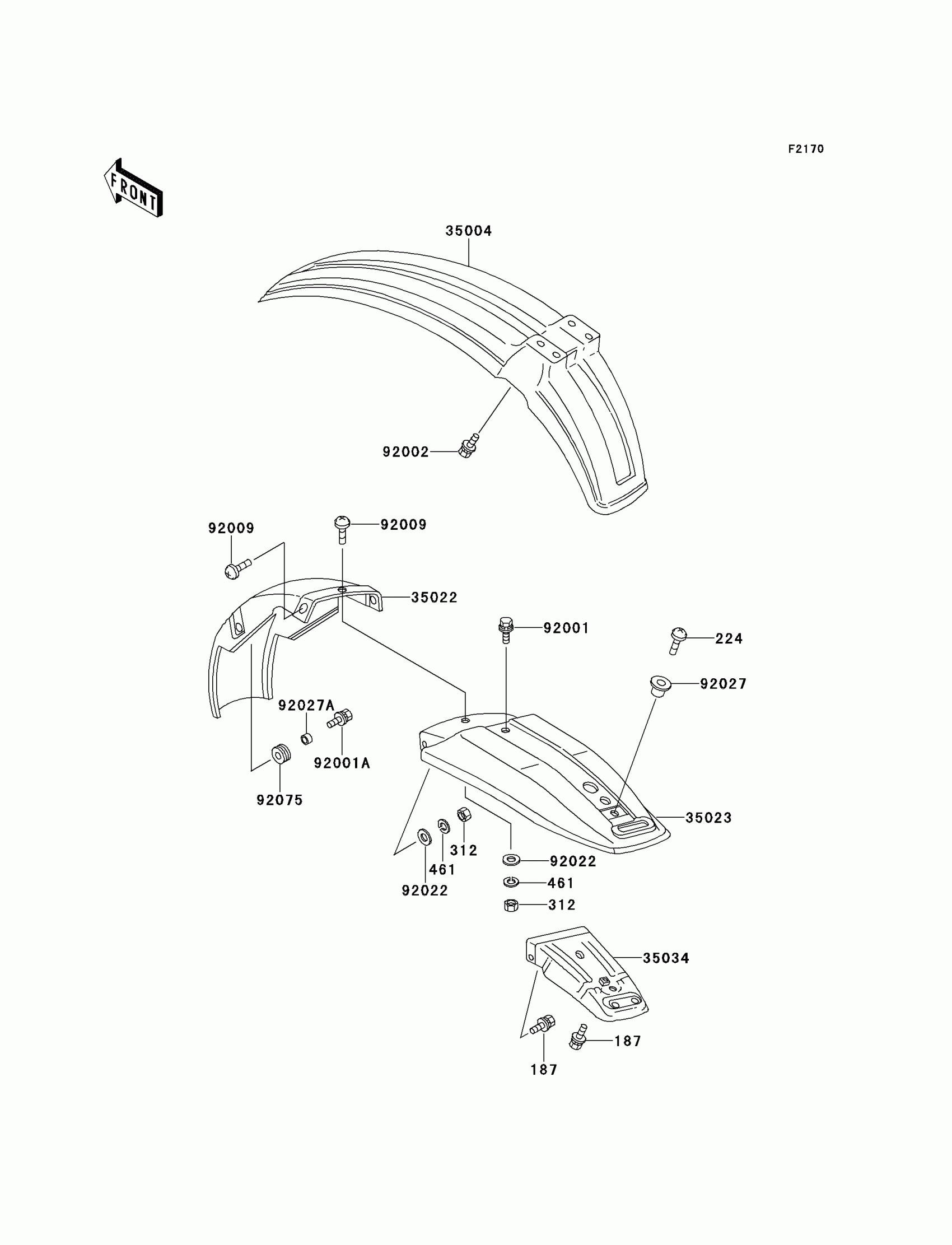

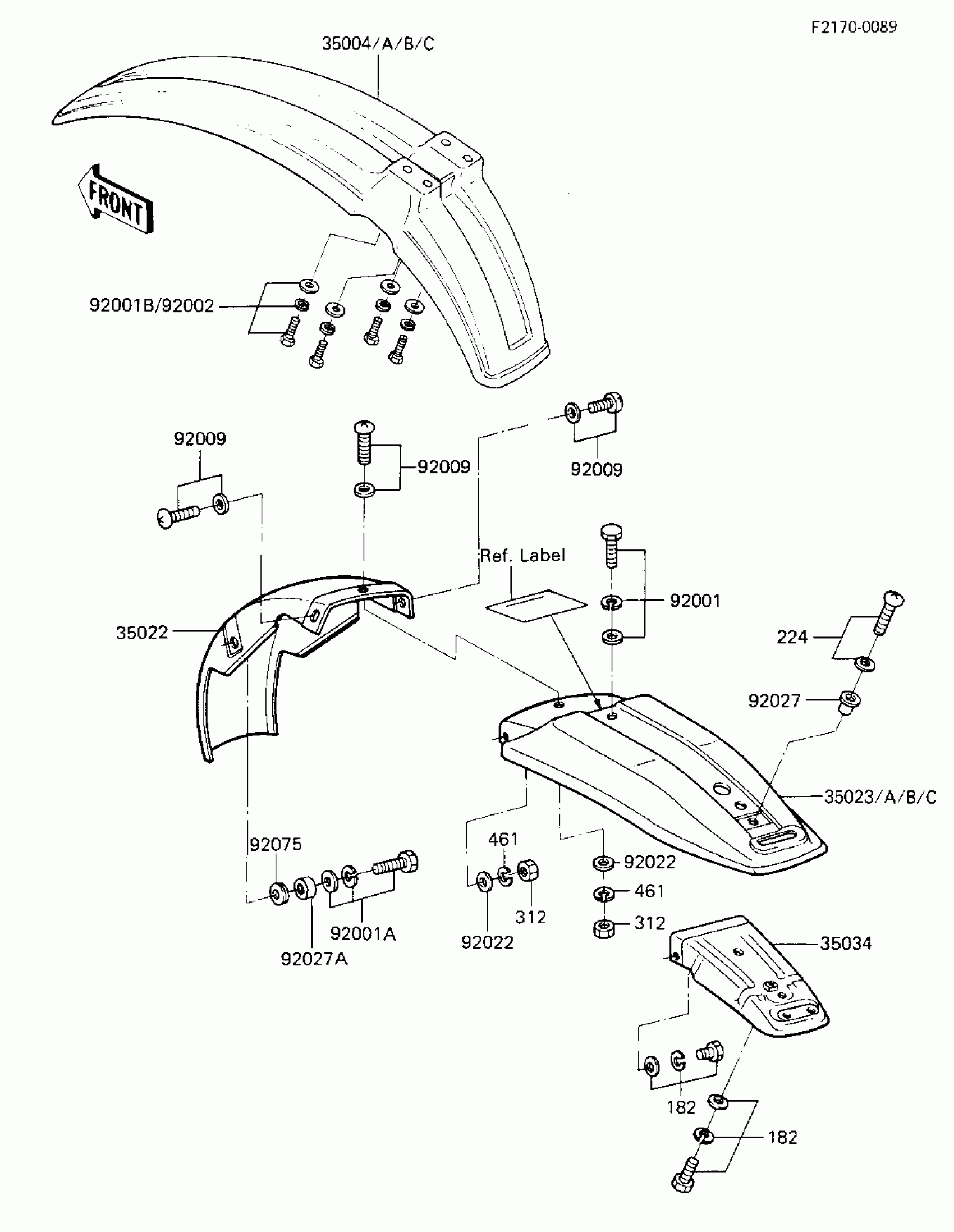

Find the part on the Fenders diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KE100 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004B

FENDER-FRONT,P.WHITE

35004-1072-6F

1
Out of stock

35022

1

$43.81

In stock

35023B

FENDER-REAR,RR,P.WHITE

35023-1039-6F

1
Out of stock

35034

REINFORCE

35034-1075

1

$79.56

In stock

92001

BOLT,6X12

92001-1761

1
Out of stock

92001A

BOLT,W/SP,6X16

92001-1763

1

$3.57

In stock

92002

BOLT,6X16

92002-1075

1
Out of stock

92009

SCREW,6X14

92009-1281

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,L=3.5

92027-1018

1

$4.16

In stock

92027A

COLLAR

92027-103

1

$2.78

In stock

92075

DAMPER RUBBER

92075-105

1

$3.48

In stock

182

BOLT-UPSET-WSP

182B0612

1

$2.14

In stock

224

SCREW,6X14

92009-1333

1
Out of stock

312

NUT 6MM

312B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
