1986 Kawasaki KE100 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

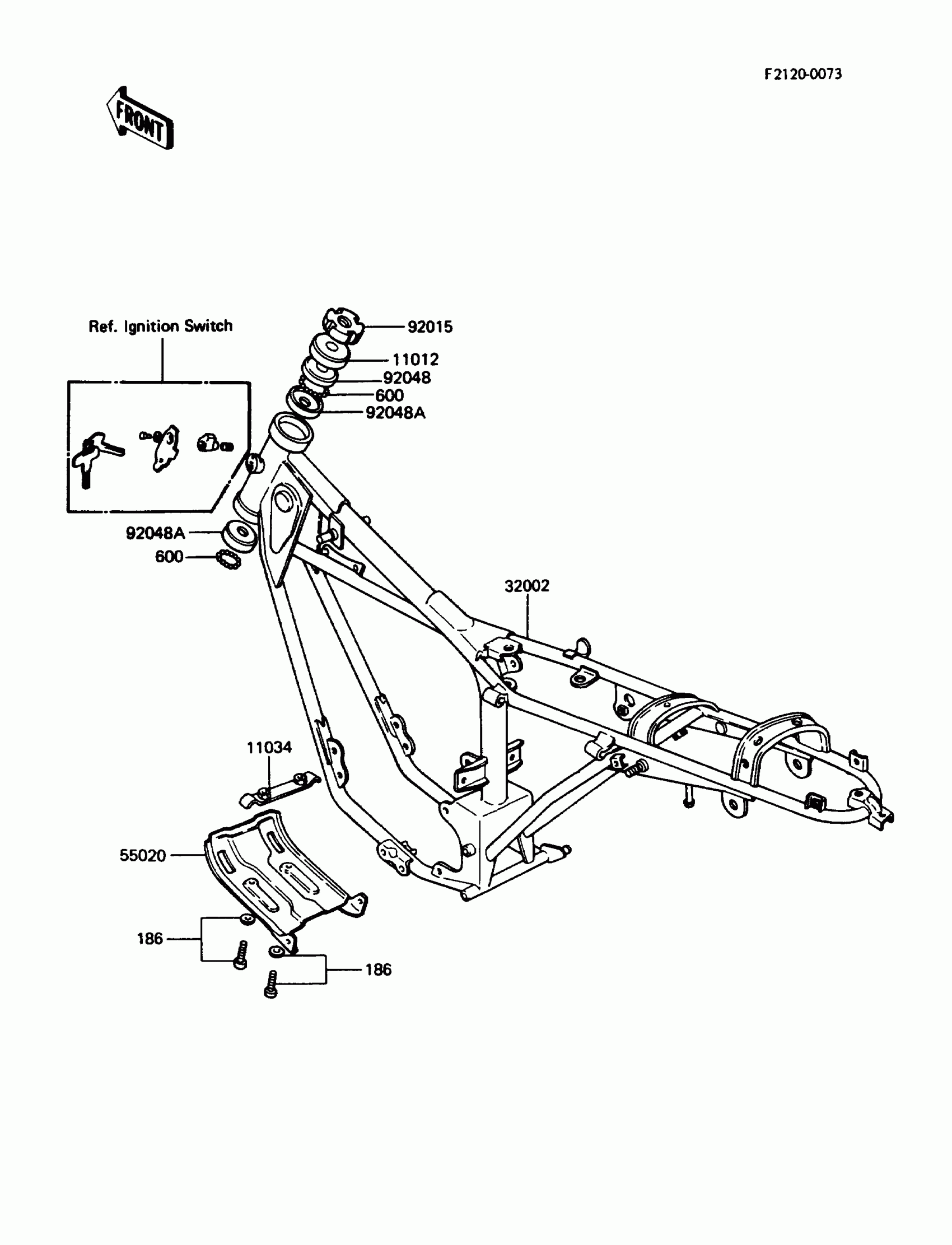

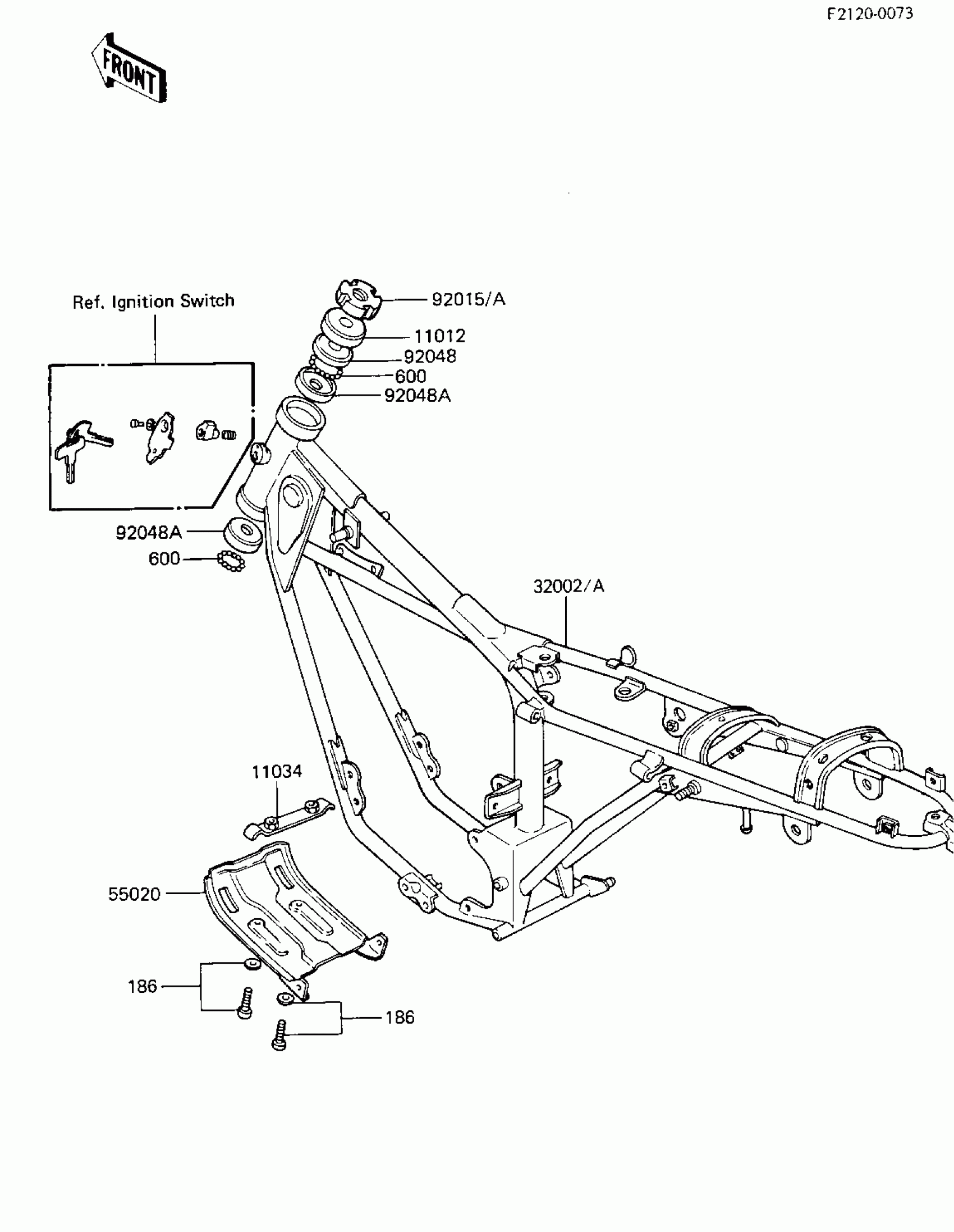

1986 Kawasaki KE100 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-004

1

$5.37

In stock

11034

BRACKET,ENGINE GUARD

55016-007

1
Out of stock

32002A

FRAME-COMP

32002-1858

1

$660.07

In stock

55020

GUARD,ENGINE

55011-018

1

$35.82

In stock

92015

1

$15.05

In stock

92048

RACE,UPPER BEARING

92047-005

1
Out of stock

92048A

RACE,BEARING

92048-004

1
Out of stock

186

BOLT

186B0614

1
Out of stock

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock
