1986 Kawasaki KE100 Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

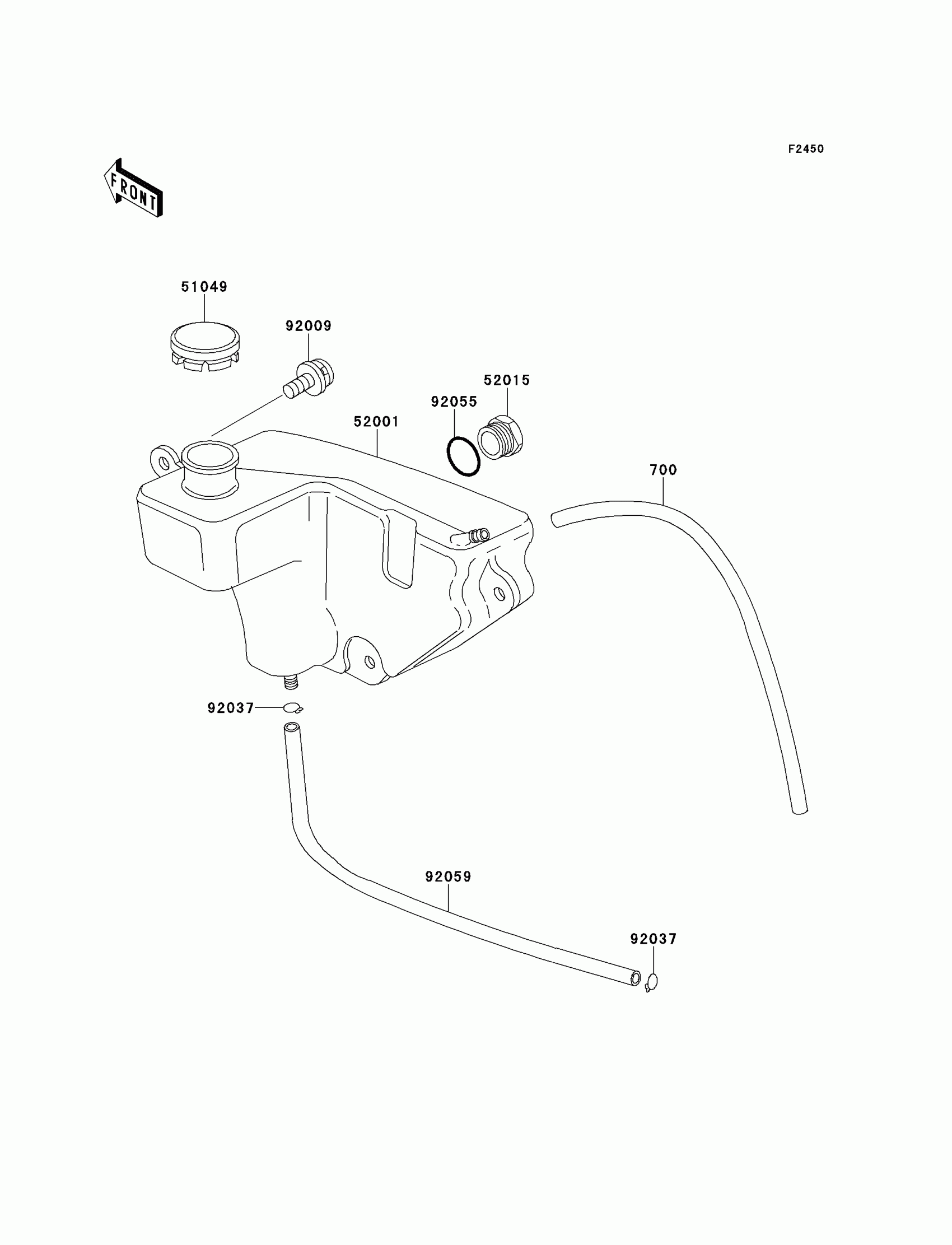

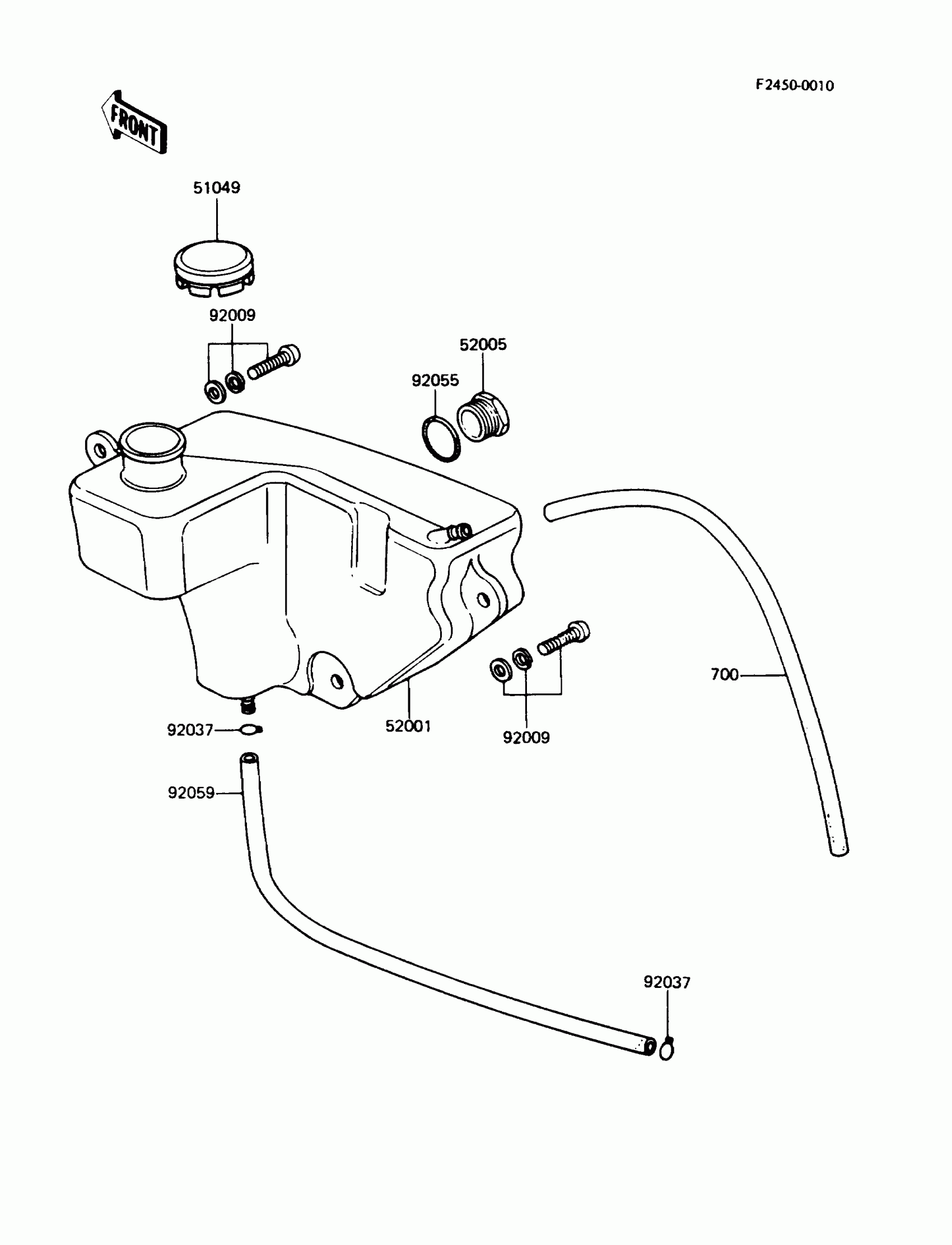

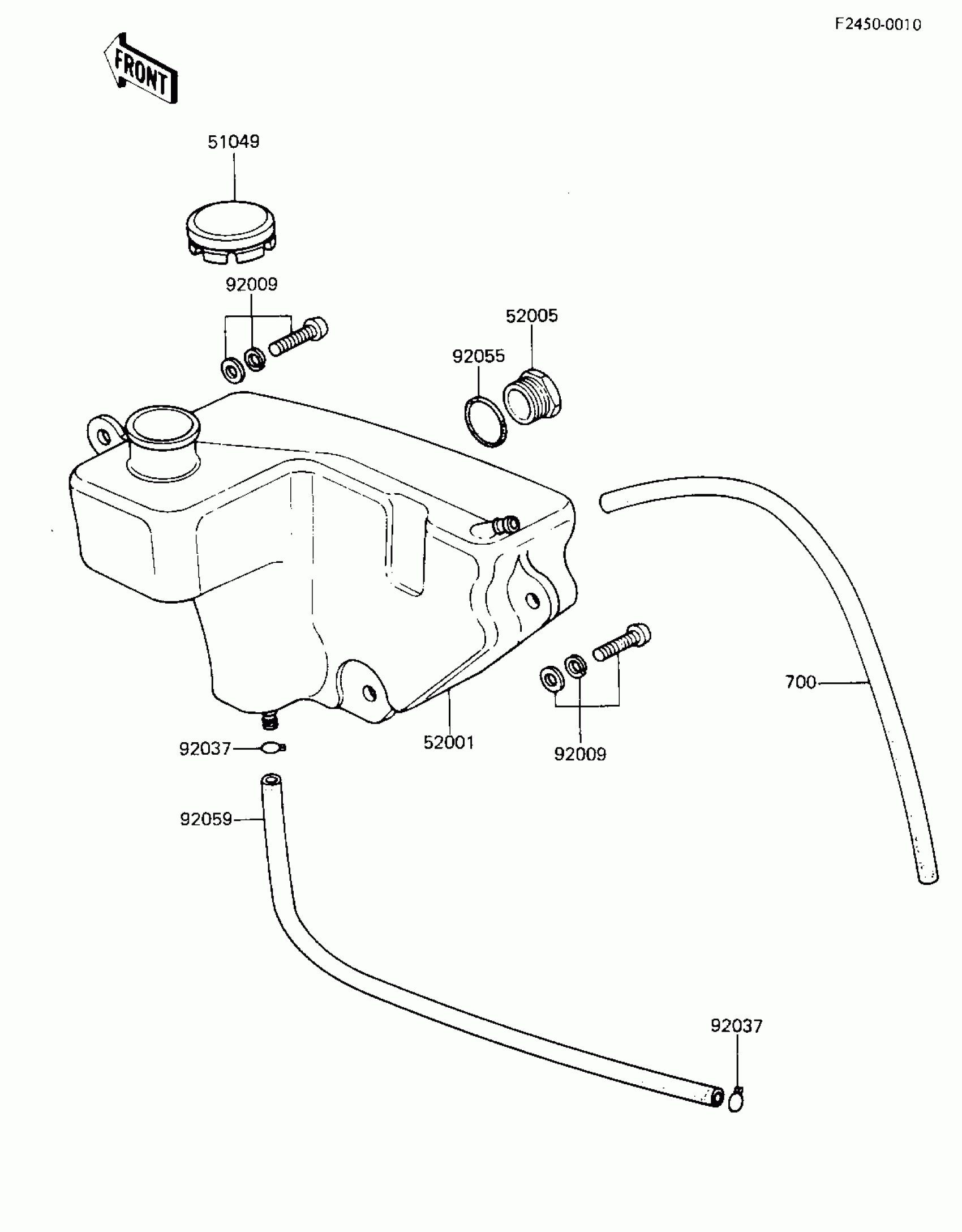

1986 Kawasaki KE100 Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

51049

CAP-TANK,OIL

51049-1004

1

$11.70

In stock

52001

TANK-OIL

52001-1003

1
Out of stock

52005

GAUGE,OIL LEVEL

52015-002

1
Out of stock

92009

SCREW-PAN-WSP-CROS,6X16

92009-1283

1
Out of stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92055

RING-O,20MM

92055-051

1

$4.44

In stock

92059

TUBE,4.5X9X220

92059-073

1

$34.99

In stock

700

UNAVAILABLE IN PRICE BOOK

700005280

1
Out of stock
← Oil Pump Air Cleaner →
