1981 Kawasaki KE100 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1981 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

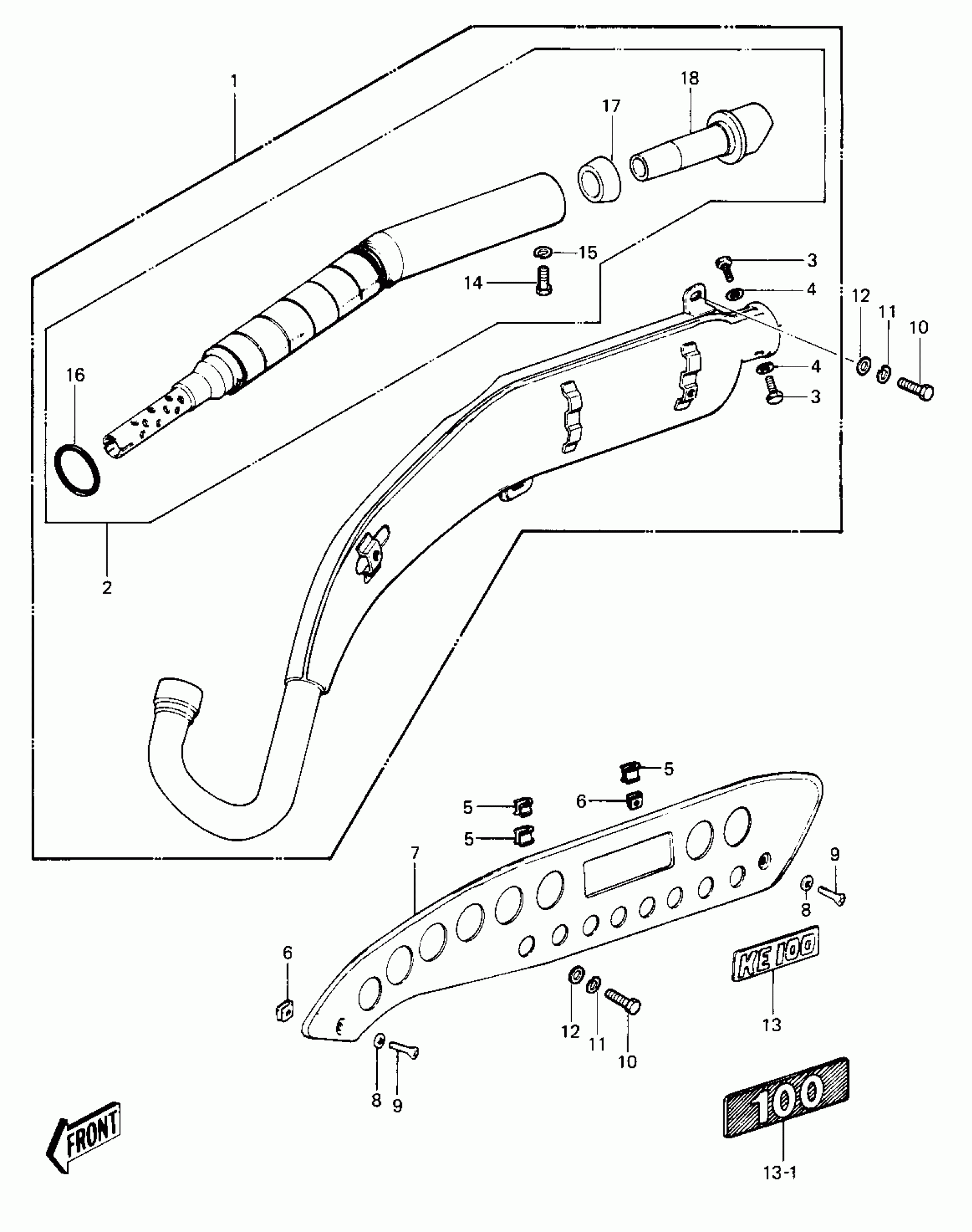

1981 Kawasaki KE100 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER

18001-1603

1
Out of stock

1

MUFFLER

18001-1603

1
Out of stock

2

BAFFLE-PIPE MUFFLER

18033-070

1
Out of stock

3

BOLT-UPSET 6X14

112B0614

1
Out of stock

4

1

$3.13

In stock

5

INSULATOR

18065-007

1
Out of stock

6

INSULATOR-HEAT

18065-009

1
Out of stock

7

COVER,MUFFLER

18057-047

1

$51.51

In stock

8

WASHER LOCK 6MM

463H0600

1
Out of stock

9

1

$4.08

In stock

10

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

11

WASHER SPRING 8MM

461F0800

1
Out of stock

12

WASHER PLAIN 8MM

411B0800

1
Out of stock

13

EMBLEM,SIDE COVER

56018-222

1
Out of stock

13-1

EMBLEM,MUFFLER COVER

56018-1039

1
Out of stock

14

BOLT-UPSET 6X14

112B0614

1
Out of stock

15

WASHER LOCK 6MM

464H0600

1
Out of stock

16

'0' RING

92093-1031

1
Out of stock

17

BUSHING,RUBBER

92093-1009

1
Out of stock

18

ARRESTOR CAP

59156-1005

1
Out of stock
