1981 Kawasaki KE100 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1981 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

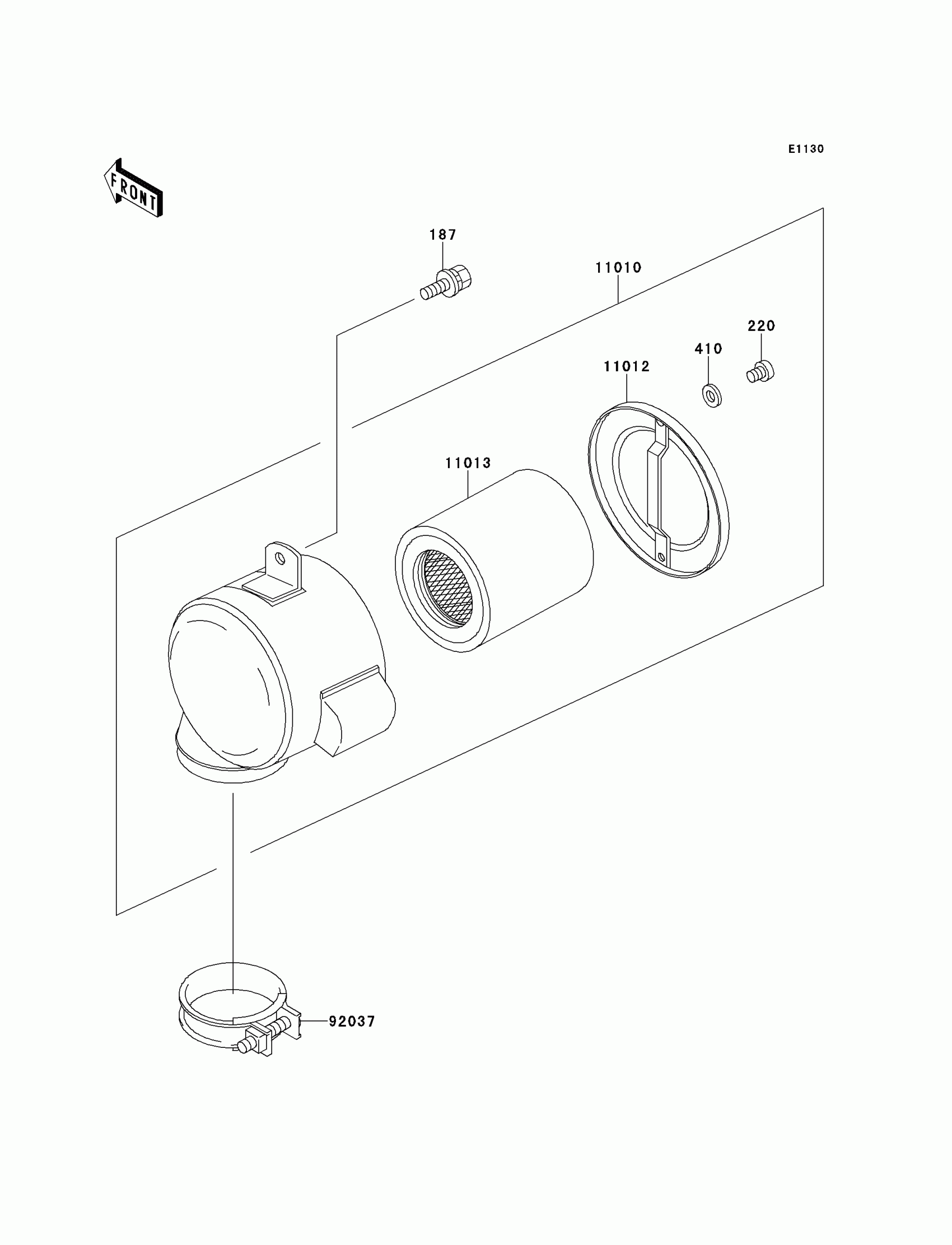

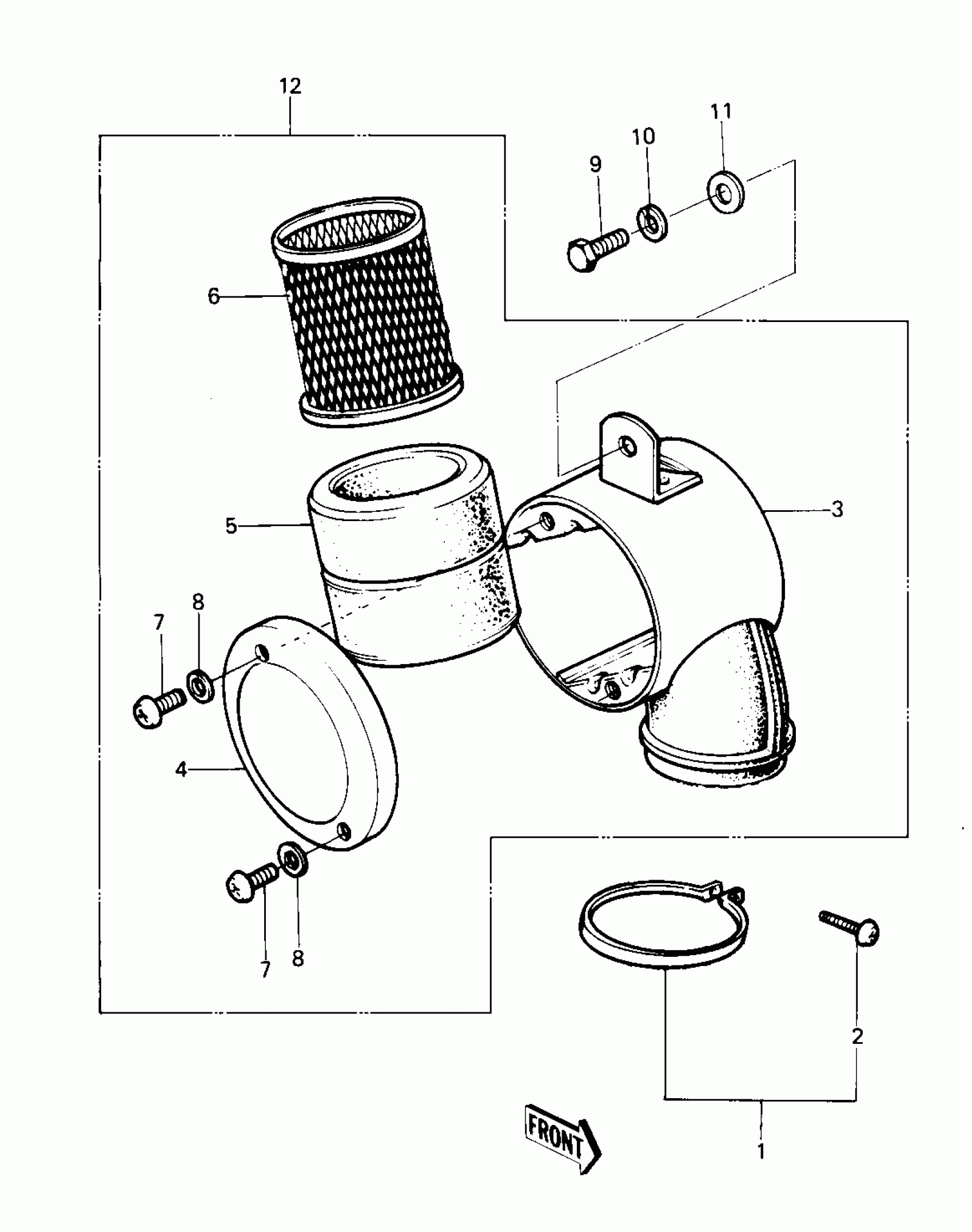

1981 Kawasaki KE100 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP

92037-068

1

$11.86

In stock

2

1

$1.44

In stock

3

BODY-AIR CLEANER

11011-014

1
Out of stock

4

CAP,AIR CLEANER

11012-050

1
Out of stock

4

CAP,AIR CLEANER

11012-050

1
Out of stock

5

ELEMENT,AIR,CLNR

11013-029

1

$7.81

In stock

5

ELEMENT-AIR FILTER

11013-1008

1

$23.16

In stock

6

HOLDER-CLNR. ELEMENT

11014-004

1
Out of stock

7

1

$0.63

In stock

8

1

$1.19

In stock

9

BOLT-UPSET,6X16

112G0616

1
Out of stock

10

WASHER SPRING 6MM

461F0600

1
Out of stock

11

1

$1.19

In stock

12

AIR CLEANER ASY,BLACK

11010-082-21

1
Out of stock

12

AIR CLEANER ASY,BLACK

11010-082-21

1
Out of stock

12

AIR CLEANER ASSY

11010-1015

1
Out of stock
